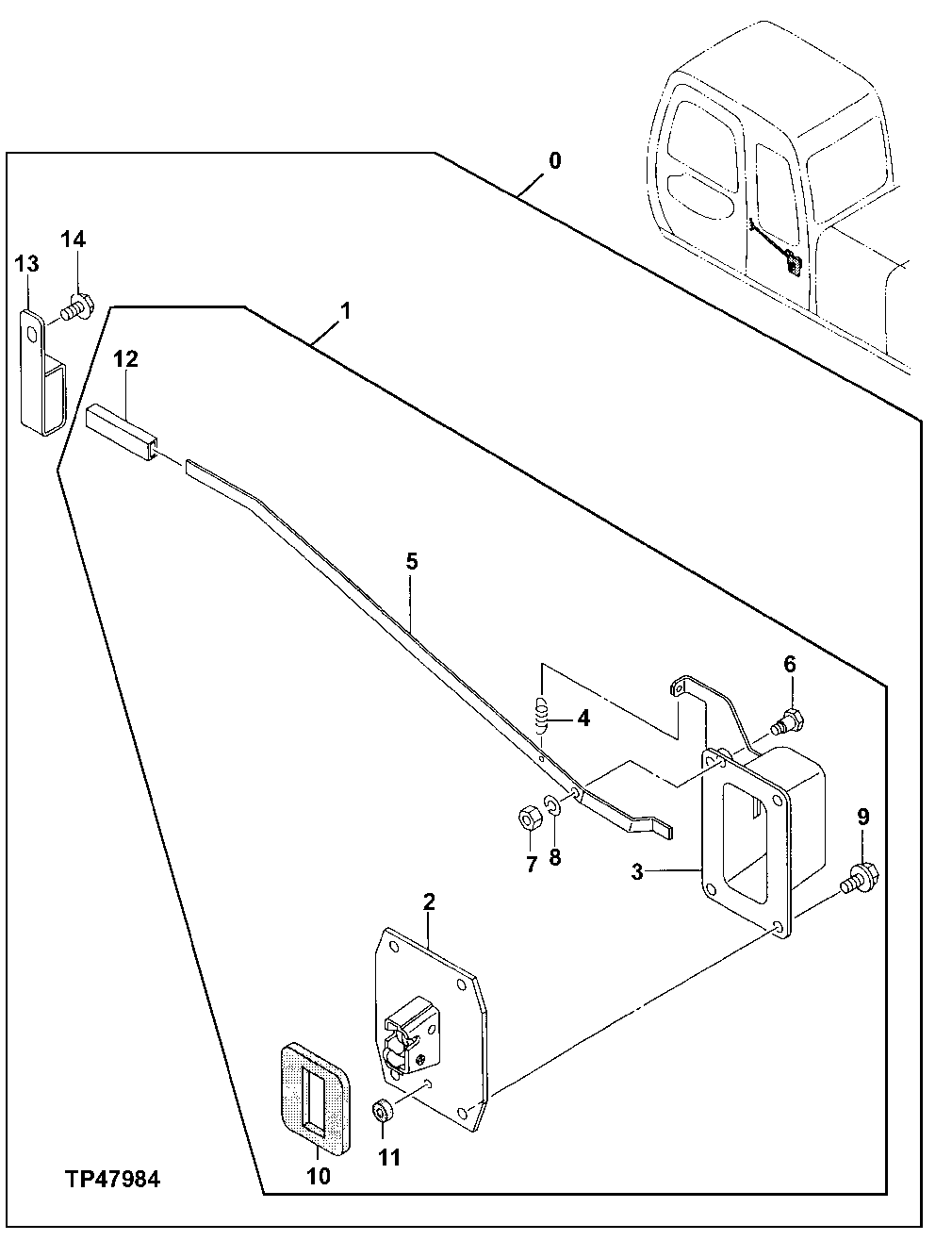

Запчасти John Deere 70LC 121 - Cab Components 1810 Operator Enclosure

0

4383439

Cab

SUB FOR AT215570; CONTAINS ALL I TEMS ON THIS PAGE - ADDITIONAL CO MPONENTS LISTED ON PREVIOUS PAGES

1шт.

1

4369621

Catch

SUB FOR AT214124

4шт.

2

4372094

Catch

SUB FOR AT214293

1шт.

3

4372095

Housing

SUB FOR AT214294

1шт.

4

4208103

Spring

SUB FOR AT121585

1шт.

5

4369623

Lever

SUB FOR AT214125

1шт.

6

4372209

Pin

SUB FOR AT214296

1шт.

7

14M7272

Nut

M6

1шт.

8

12M7006

Lock Washer

6 mm

1шт.

9

19M7881

Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

10

4204590

Gasket

SUB FOR TH108672

1шт.

11

4204591

Seal

SUB FOR TH108673

1шт.

12

4089012

Cap

SUB FOR TH101184

1шт.

13

4369624

Stop

SUB FOR AT214126

1шт.

14

19M7162

Cap Screw

M8 X 16 SUB FOR AT214308 OR 43722 22, ALONG WITH 24M7036 AND 12M7065

1шт.

24M7036

Washer

9 X 16 X 1.600 mm

1шт.

Washer

12M7065 NLA

1шт.
