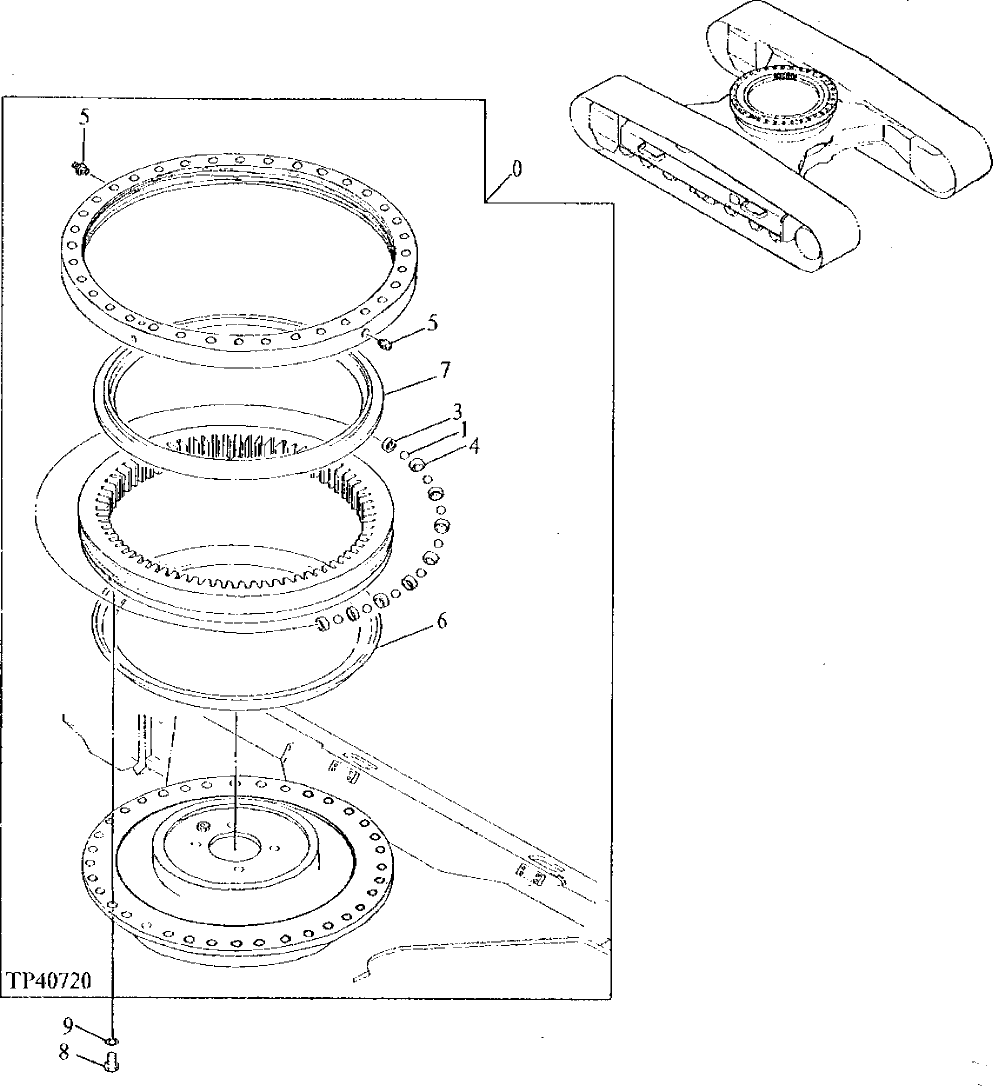

Запчасти John Deere 70LC 109 - Swing Bearing 1740 Frame Installation

0

AT190770

Roller

1шт.

9154037EX

Swing Bearing

SUB FOR AT178566; REMAN FOR AT190770

1шт.

1

4382742

Ball

SUB FOR AT174890 AND 4355766

99шт.

FYB00001844

Ball

SUB FOR 4669833 AND 435 5766; ALSO ORDER 4382742

99шт.

3

4134900

Spacer

SUB FOR TH102260

75шт.

4

4134901

Spacer

SUB FOR TH102261

15шт.

5

TH100074

Lubrication Fitting

2шт.

6

T203958

Seal

4631753 NLA, SUB FOR (1) T191211; A LSO ORDER PM37391 AND AT66866; ALSO O RDER T216880 Installation Instruction

1шт.

TY21517

Adhesive

NOT ILLUSTRATED

1шт.

AT66866

Fluid

NOT ILLUSTRATED

1шт.

7

T203958

Seal

4631753 NLA, SUB FOR (1) T191211; A LSO ORDER PM37391 AND AT66866; ALSO O RDER T216880 Installation Instruction

1шт.

TY21517

Adhesive

NOT ILLUSTRATED

1шт.

AT66866

Fluid

NOT ILLUSTRATED

1шт.

8

AT217784

Bolt

M22 X 70

36шт.

9

J257222

Lock Washer

SUB FOR AT217702

36шт.
