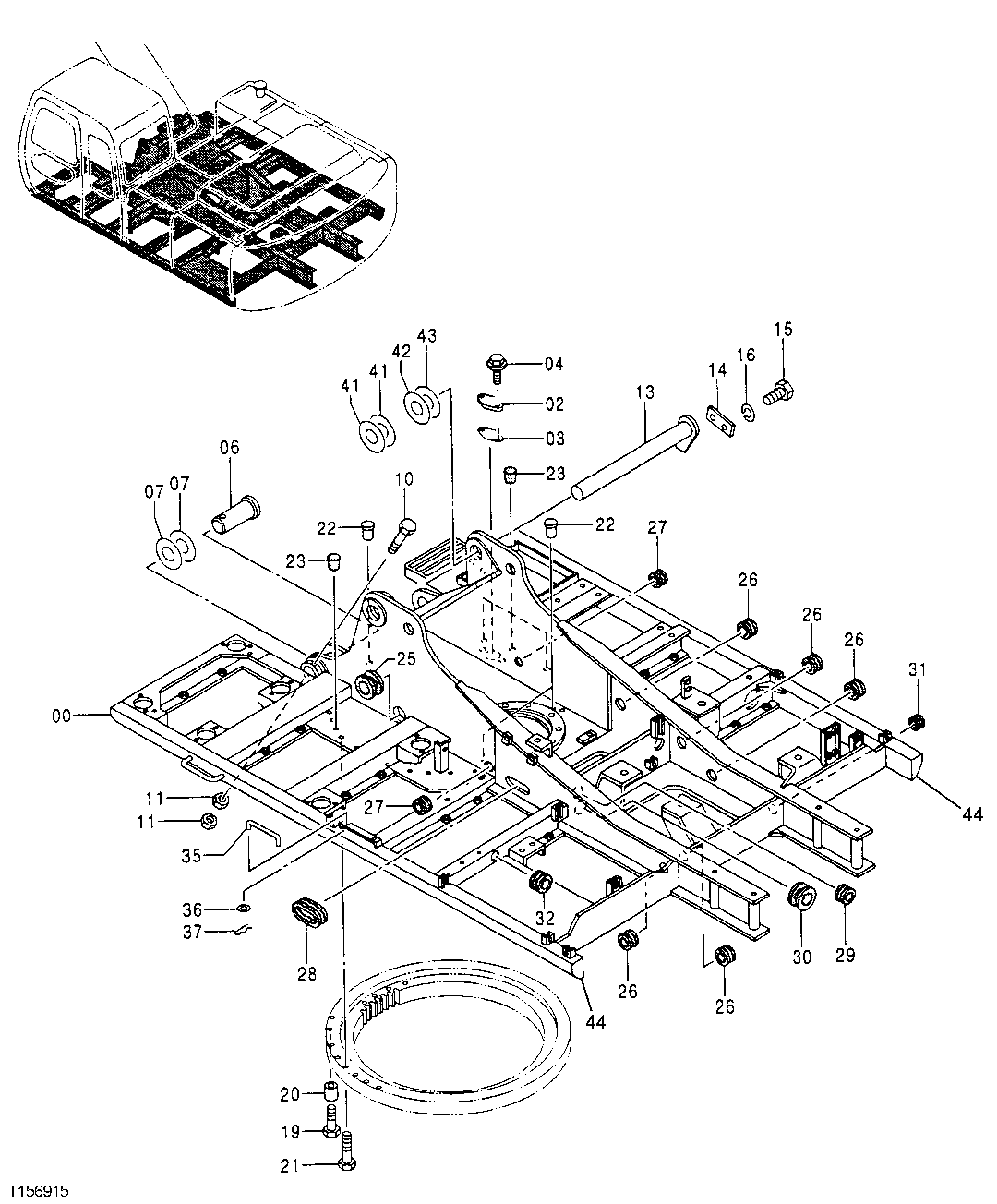

Запчасти John Deere 70LC 107 - Main Frame 1740 Frame Installation

0

5005451

Main Frame

(SUB FOR AT218217)(CONVENIENCE ASSEMBLY)

1шт.

2

4604209

Cover

(SUB FOR AT154929 OR 4255799)

1шт.

3

4161735

Gasket

(SUB FOR AT130379)

1шт.

4

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

6

AT217951

Pin Fastener

2шт.

7

4134370R

Shim

(SUB FOR TH102423, 4144513, AT202083 OR 4134 370)(BOTH RIGHT AND LEFT SIDE OF UNIT SHOULD BE EQUIPPED WITH THE SAME PART NUMBER SHIMS)

4шт.

10

4371649

Bolt

(SUB FOR AT217985)

2шт.

11

14M7277

Nut

M20

4шт.

13

AT155544

Pin

1шт.

14

4199833

Plate

(SUB FOR TH109401)

1шт.

15

19M7950

Cap Screw

M20 X 45 (SUB FOR J922045)

2шт.

16

J257220

Spring Washer

(SUB FOR AT213605)

2шт.

19

J922212

Bolt

(SUB FOR AT217912)

4шт.

20

4381637

Spacer

(SUB FOR AT217991)

4шт.

21

J922203R

Cap Screw

(SUB FOR AT217706 OR J922203)

30шт.

22

4355382

Pin Fastener

(SUB FOR AT217769)

3шт.

23

99M7010

Plug

2шт.

25

4191977

Grommet

(SUB FOR TH109399)

1шт.

26

4201749

Grommet

(SUB FOR TH108205)

5шт.

27

4257181

Grommet

(SUB FOR AT155274)

2шт.

28

4275015

Bushing

(SUB FOR AT200467)

1шт.

29

4255567

Bushing

(SUB FOR AT155271, 4255530)

1шт.

30

4201986

Grommet

(SUB FOR TH109398)

1шт.

31

4210661

Grommet

(SUB FOR TH111369)

1шт.

32

4201995

Grommet

(SUB FOR TH109396)

1шт.

35

4341788

Rod

(SUB FOR AT213884 OR 4341788J)

1шт.

36

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

37

H132922

Cotter Pin

1шт.

41

4144513

Washer

105 X 200 X 1.200 mm (4.134" X 7 .874" X 3/64") (SUB FOR TH102423)

2шт.

42

4144512

Washer

105 X 200 X 2.300 mm (4.134" X 7. 874" X 0.091") (SUB FOR TH102422)

1шт.

43

4144511

Washer

105 X 200 X 3.200 mm (4.134" X 7. 874" X 0.126") (SUB FOR TH102421)

1шт.

44

4455820

Frame

1шт.
