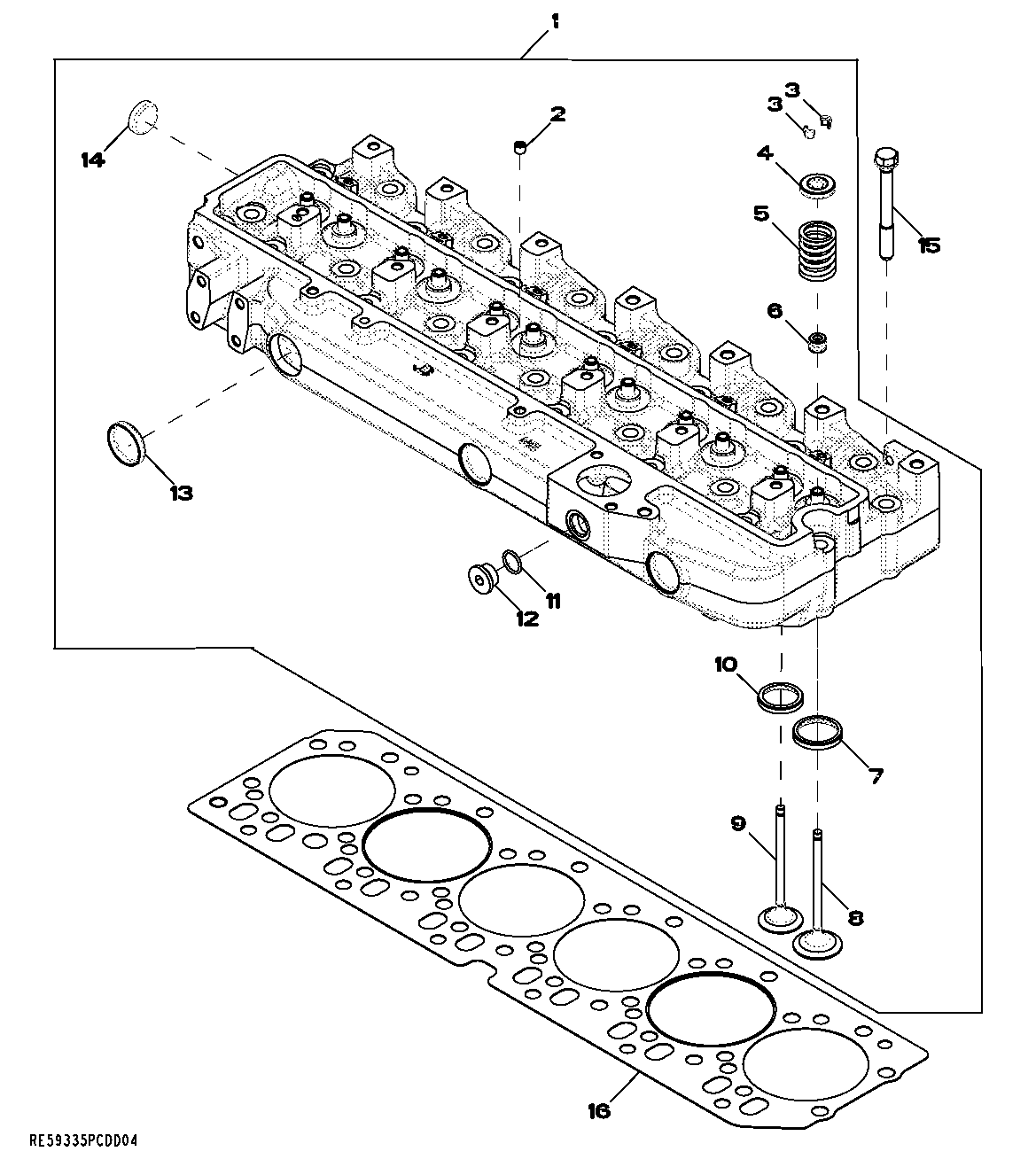

Запчасти John Deere 70CLC 58 - 5107 CYLINDER HEAD 0400A 270C LC EXCAVATOR 6068HT055-RE507964 6068HT055

1

RE57489

Cylinder Head

1шт.

SE501581

Cylinder Head Reman

(REMAN FOR RE57489)

1шт.

2

RE71255

Pipe Plug

1шт.

3

R91889

Retainer

OD=11.7MM

24шт.

4

RE60005

Rotator

12шт.

5

R26125

Spring

12шт.

6

RE31617

Seal

12шт.

7

R106831

Valve Seat Insert

(A) OD=47.2MM

6шт.

8

R98062

Intake Valve

OD STD

6шт.

R97490

Intake Valve

0.381MM (OS)

ARшт.

R97491

Intake Valve

0.762MM (OS)

ARшт.

9

R90692

Exhaust Valve

OD STD

6шт.

R97492

Exhaust Valve

0.381MM (OS)

ARшт.

R97493

Exhaust Valve

0.762MM (OS)

ARшт.

10

R106829

Valve Seat Insert

(B) OD=43.1MM

6шт.

11

R26906

O-Ring

1шт.

12

T58477

Fitting Plug

7/8"-14UNF APPL, (ALSO ORDER R26906)

1шт.

13

R43409

Plug

OD=43.3MM

3шт.

14

CD16284

Plug

OD=32.6MM, REAR

1шт.

15

R85363

Cap Screw

12.7MM X 112MM

26шт.

16

R116516

Engine Cylinder Head Gasket

1шт.
