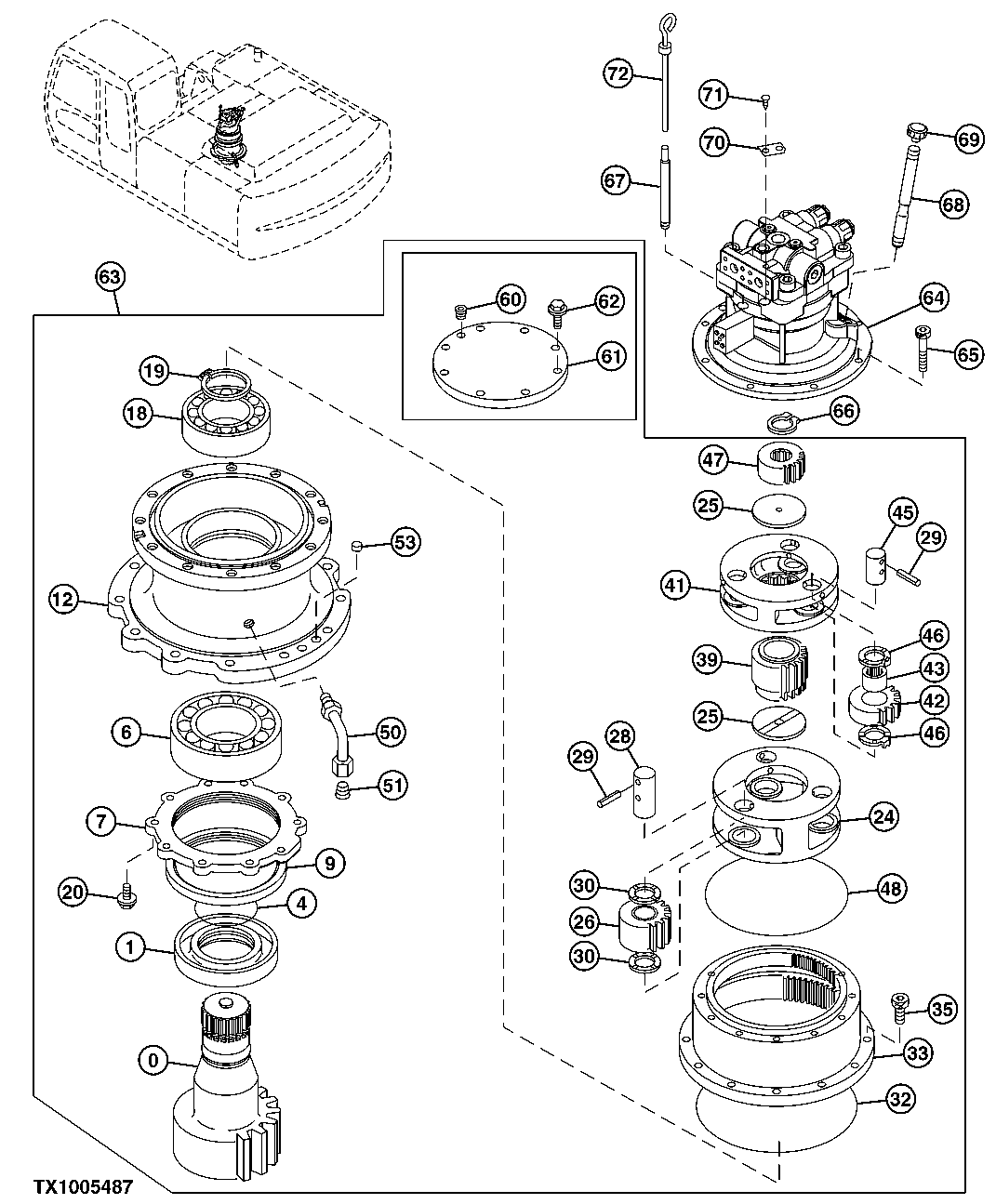

Запчасти John Deere 70CLC 381 - SWING MOTOR AND GEAR BOX 4360 HYDRAULICS

0

2040441

Pinion Shaft

(SUB FOR AT217936)

1шт.

1

4256346

Sleeve

(SUB FOR AT200996)

1шт.

4

A811140

O-Ring

(SUB FOR TH111062)

1шт.

6

AT160517

Spherical Roller Bearing

1шт.

7

3060561

Cover

(SUB FOR AT158507)

1шт.

9

4424511

Seal

1шт.

12

1014810

Housing

(SUB FOR AT200953)

1шт.

18

TH104674

Spherical Roller Bearing

1шт.

19

991354

Snap Ring

(SUB FOR TH111641)

1шт.

20

19M7493

Cap Screw

M12 X 40

10шт.

12H301

Lock Washer

1/2"

10шт.

24

1014808

Planet Pinion Carrier

(SUB FOR AT200951)

1шт.

25

4194454

Washer

(SUB FOR TH111267)

2шт.

26

9734405

Gear

(SUB FOR AT201190)

3шт.

28

4244694

Pin Fastener

(SUB FOR TH109481)

3шт.

29

34M5564

Spring Pin

6 X 70 mm

6шт.

30

4266934

Plate

(SUB FOR AT154772)

6шт.

32

4254449

O-Ring

(SUB FOR AT200993)

1шт.

33

1014811

Ring Gear

(SUB FOR AT200954)

1шт.

35

19M8609

Cap Screw

M20 X 55

12шт.

39

3050683

Sun Gear

(SUB FOR AT200969)

1шт.

41

1014809

Planet Pinion Carrier

(SUB FOR AT200952)

1шт.

42

3050684

Gear

(SUB FOR AT200970)

3шт.

43

4443139

Needle Bearing

(SUB FOR T107728, 4183818)

3шт.

45

4203533

Pin

(SUB FOR AT131753)

3шт.

46

4273336

Plate

(SUB FOR AT201013)

6шт.

47

3050685

Sun Gear

(SUB FOR AT200971)

1шт.

48

4271596

O-Ring

(SUB FOR AT131752)

1шт.

50

8050212

Pipe

(SUB FOR AT154836)

1шт.

51

94-2012

Plug

1шт.

53

99M7010

Plug

2шт.

60

942011

Fitting Plug

(SUB FOR 94-2011 AND TH100434)

1шт.

61

Cover

( TH8066060 NOT AVAILABLE)

1шт.

62

19M7361

Cap Screw

M12 X 50

6шт.

12H301

Lock Washer

1/2"

6шт.

63

9162234

Device

(SUB FOR AT218045)

1шт.

64

4439418

Oil

Components Listed On Another Page NLA, (ORDER 4439418EX)

1шт.

4439418EX

Hydraulic Motor Reman

Components Listed On Anoth er Page (REMAN FOR 4439418)

1шт.

4484557

Hydraulic Motor

No Serial No. Recorded Production Overlap Between Two Manufacturers Components List ed On Another Page NLA, (ORDER 4484557EX)

1шт.

4484557EX

Hydraulic Motor Reman

No Serial No. Recorded Production Overla p Between Two Manufacturers Components Li sted On Another Page (REMAN FOR 4484557)

1шт.

65

19M8168

Screw

M12 X 25

12шт.

66

40M7047

Snap Ring

1шт.

67

4264452

Tube

(SUB FOR AT154293)

1шт.

68

4317032

Line

(SUB FOR AT201054)

1шт.

69

4343365

Cap

(SUB FOR AT204965)

1шт.

70

Identification Plate

( AT154128 NOT AVAILABLE)

1шт.

71

37H99

Screw

0.100" X 1/4"

2шт.

72

3074223

Dipstick

(SUB FOR AT213790)

1шт.
