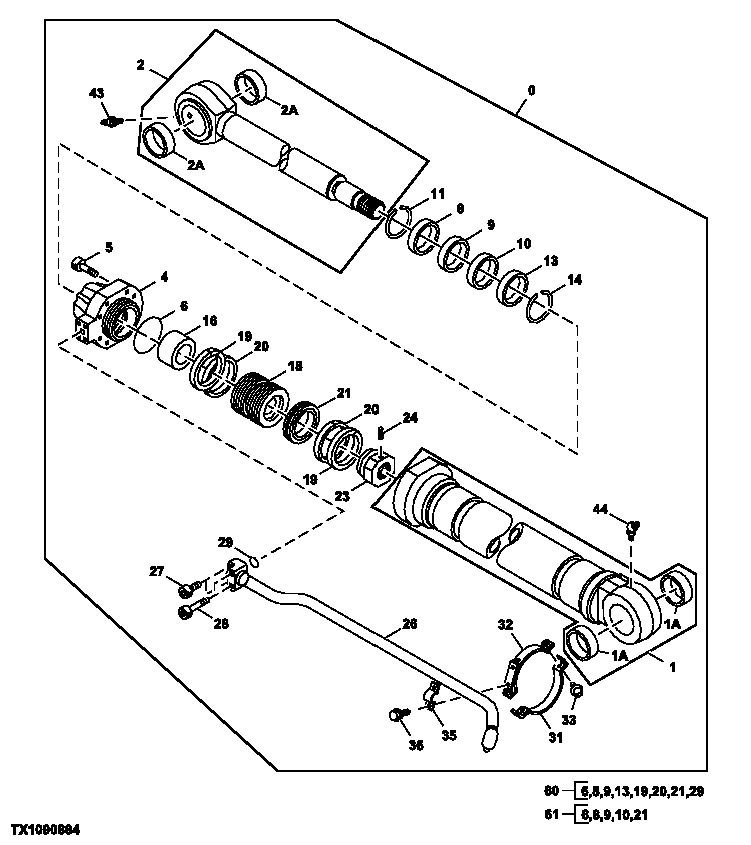

Запчасти John Deere 70CLC 378 - BUCKET CYLINDER (UNITS BUILT BEFORE AUGUST 2004) 3365 Hydraulic Cylinders

0

9206324J

Hydraulic Cylinder

(NLA) (SUB 9245981J)

1шт.

1

9206354

Hydraulic Cylinder Barrel

1шт.

1A

4332285

Bushing

(SUB FOR AT217750)

2шт.

2

4645905

Rod

(SUB FOR 7037679)

1шт.

2A

4397791

Bushing

(SUB FOR TH4397791)

2шт.

4

1015437

Hydr. Cylinder Rod Guide

(SUB FOR AT217934)

1шт.

5

19M8630

Screw

M24 X 80

8шт.

6

AT264268

O-Ring

(SUB FOR AT154722)

1шт.

8

T204375

Seal

(SUB FOR AT181238 AND AT264293)

1шт.

9

AT264395

Seal

(SUB FOR TH110018)

1шт.

10

4412693

Seal

(SUB FOR 4253560)

1шт.

11

4369507

Ring

1шт.

13

AT264321

Bushing

(SUB FOR AT154779, AT264273)

1шт.

14

4264983

Snap Ring

1шт.

16

4264979

Spacer

(SUB FOR AT217957)

1шт.

18

3052363

Piston

(SUB FOR AT217937)

1шт.

19

AT264397

Ring

(SUB FOR TH110033)

2шт.

20

AT264266

Wear Ring

(SUB FOR AT154718)

2шт.

21

AT264297

Seal

(SUB FOR AT218148)

1шт.

23

3063059

Nut

(SUB FOR AT217940)

1шт.

24

4201805

Set Screw

(SUB FOR TH110037)

1шт.

26

8049650

Oil Tube

(SUB FOR AT218005)

1шт.

27

19M8341

Screw

M12 X 45

2шт.

28

19M8444

Screw

M12 X 60

2шт.

29

AT264324

O-Ring

(SUB FOR TH100044)

1шт.

31

3088623

Clamp

(SUB FOR TH3088623)

1шт.

32

8079292

Clamp

(SUB FOR TH8079292)

1шт.

33

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

35

4174241

Clamp

(SUB FOR TH110059)

1шт.

36

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

43

T116334

Lubrication Fitting

1шт.

44

TH100074

Lubrication Fitting

1шт.

60

AT264439

Seal Kit

NLA, ORDER 9180580

1шт.

61

9180580

Seal Kit

Order Additional Seals R equired as Separate Parts

1шт.
