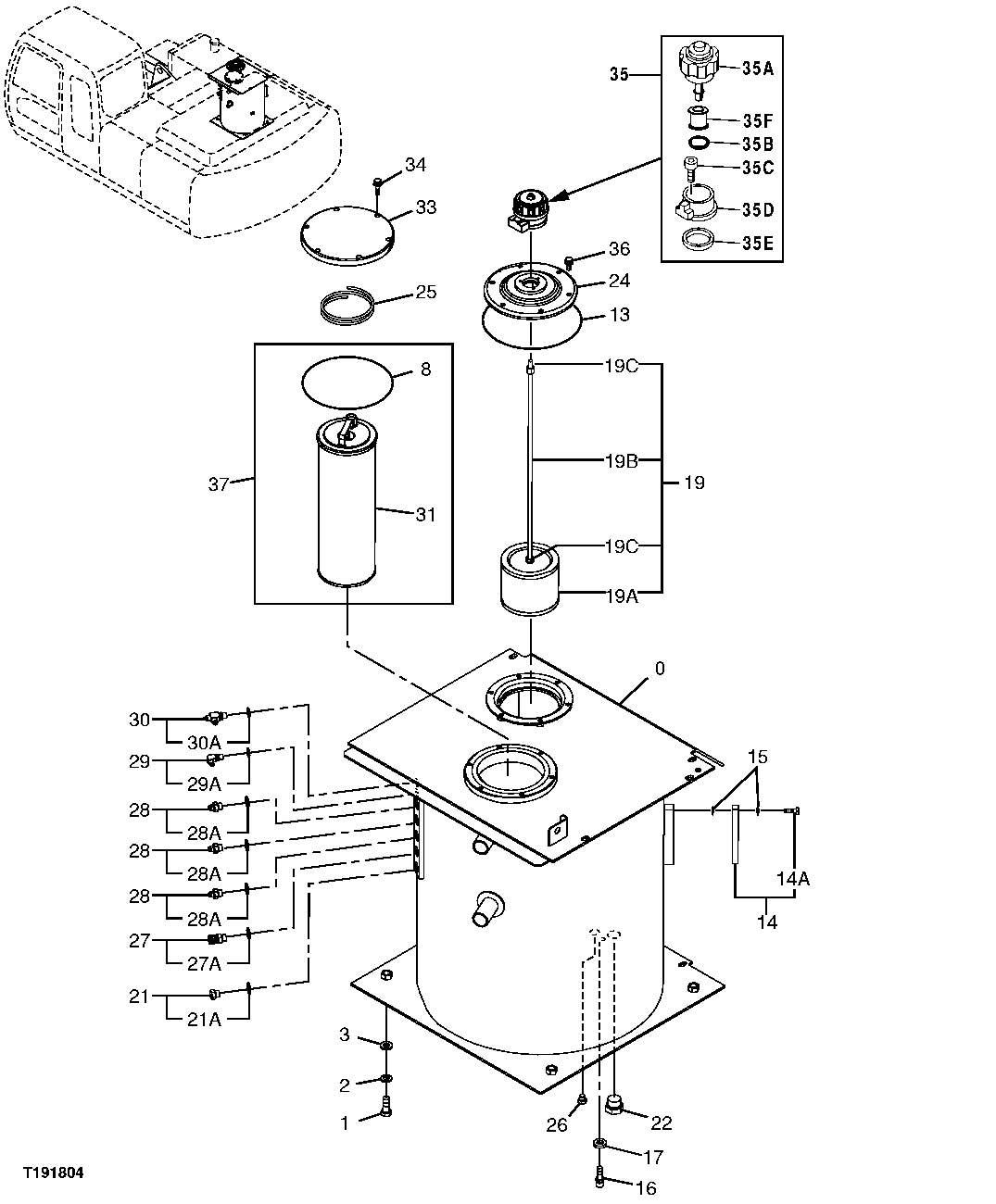

Запчасти John Deere 70CLC 370 - HYDRAULIC OIL RESERVOIR AND FILTER ELEMENTS 3364 Hydraulic Reservoir

0

5008007

Hydraulic Reservoir

1шт.

1

19M7488

Cap Screw

M16 X 40

4шт.

2

12H294

Lock Washer

5/8"

4шт.

3

24M7338

Washer

17 X 30 X 3 mm

4шт.

8

T110444

O-Ring

189.300 X 5.700 mm (7-29/64" X 0.224")

1шт.

13

TH100679

O-Ring

1шт.

14

8053499

Level Gauge

1шт.

14A

4100967

Bolt

2шт.

15

449558

Washer

4шт.

16

4250260

Sensor

1шт.

17

4250261

Gasket

1шт.

19

4396619

Rod

SUB FOR AT250688

1шт.

19A

4210224

Strainer

1шт.

19B

4396619

Rod

1шт.

19C

14M7274

Nut

M10

3шт.

21

A885003

Pipe Plug

1шт.

21A

CH11570

O-Ring

1шт.

22

A885008

Pipe Plug

SUB FOR 4113926

1шт.

22A

TH101926

O-Ring

1шт.

24

8084816

Cover

SUB FOR THA852133

3шт.

25

4472673

Spring

SUB FOR THA852333

1шт.

26

A885008

Pipe Plug

SUB FOR THA885008

1шт.

26A

M800650

Packing

1шт.

27

A852333

Elbow Fitting

1шт.

27A

CH11570

O-Ring

1шт.

28

A852133

Adapter Fitting

3шт.

28A

CH11570

O-Ring

3шт.

29

4154670

Elbow Fitting

SUB FOR A852322, P67984 OR THA852322

1шт.

29A

M800650

Packing

1шт.

30

A852422

Tee Fitting

SUB FOR THA852422

1шт.

31

Filter Element

Cleanup Filter Short Term Use - Ap proximately Three Hours Idle Speed

1шт.

33

4440802

Cover

1шт.

34

19M7550

Cap Screw

M10 X 35

6шт.

35

Breather

1шт.

35A

4326285

Cap

1шт.

35B

953612

O-Ring

1шт.

35C

19M8146

Screw

M5 X 16

3шт.

35D

4222875

Base

1шт.

35E

4222876

Packing

1шт.

35F

4251384

Filter Element

1шт.

36

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

37

FYA00033065

Filter

SUB FOR 4448402 OR FYA00016055

1шт.
