Запчасти John Deere 70CLC 368 - LUBRICATE LINES, SUPER LONG FRONT 3363 Lines, Hoses & Fittings

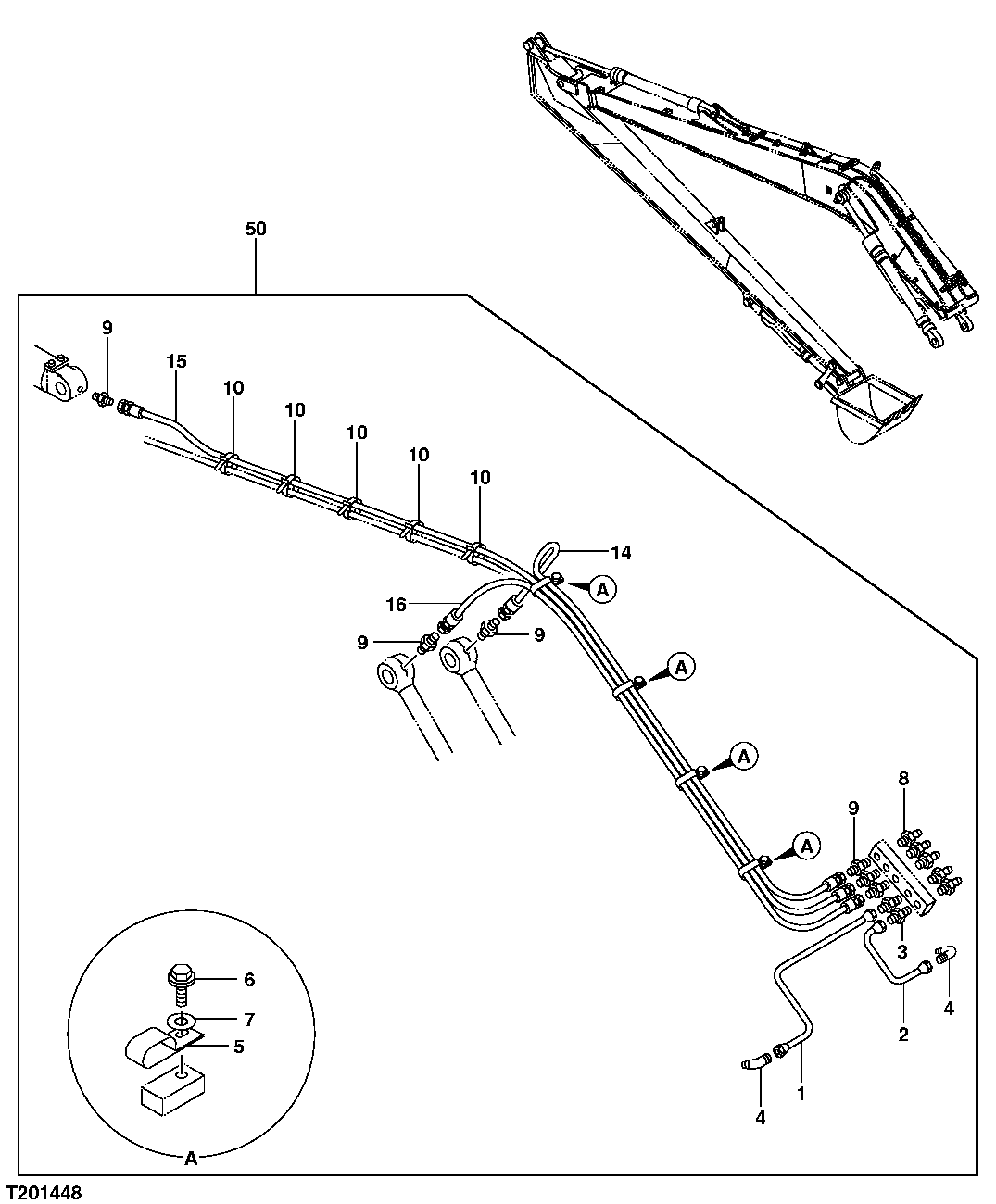

Схема запчастей John Deere 70CLC - 368 - LUBRICATE LINES, SUPER LONG FRONT 3363 Lines, Hoses & Fittings

Артикул

Название

Примечание

Количество

1

4372966

Oil Tube

1шт.

2

4372967

Oil Tube

1шт.

3

4360981

Adapter Fitting

2шт.

4

4345297

Elbow Fitting

2шт.

5

T152608

Clamp

(SUB FOR 4252877)

4шт.

6

19M8324

Cap Screw

M10 X 16 (SUB FOR J011016)

4шт.

7

12M7066

Lock Washer

10 mm

4шт.

8

JD7769

Lubrication Fitting

(SUB FOR TH100364)

5шт.

9

4154651

Adapter Fitting

6шт.

10

H77698

Tie Band

(SUB FOR 4055311)

5шт.

14

4358895

Hydraulic Hose

1шт.

15

4358896

Hydraulic Hose

1шт.

16

4358894

Hydraulic Hose

1шт.

50

Kit

( AT314803 NLA) Super Long Front

1шт.

Выбрано товаров: 14
