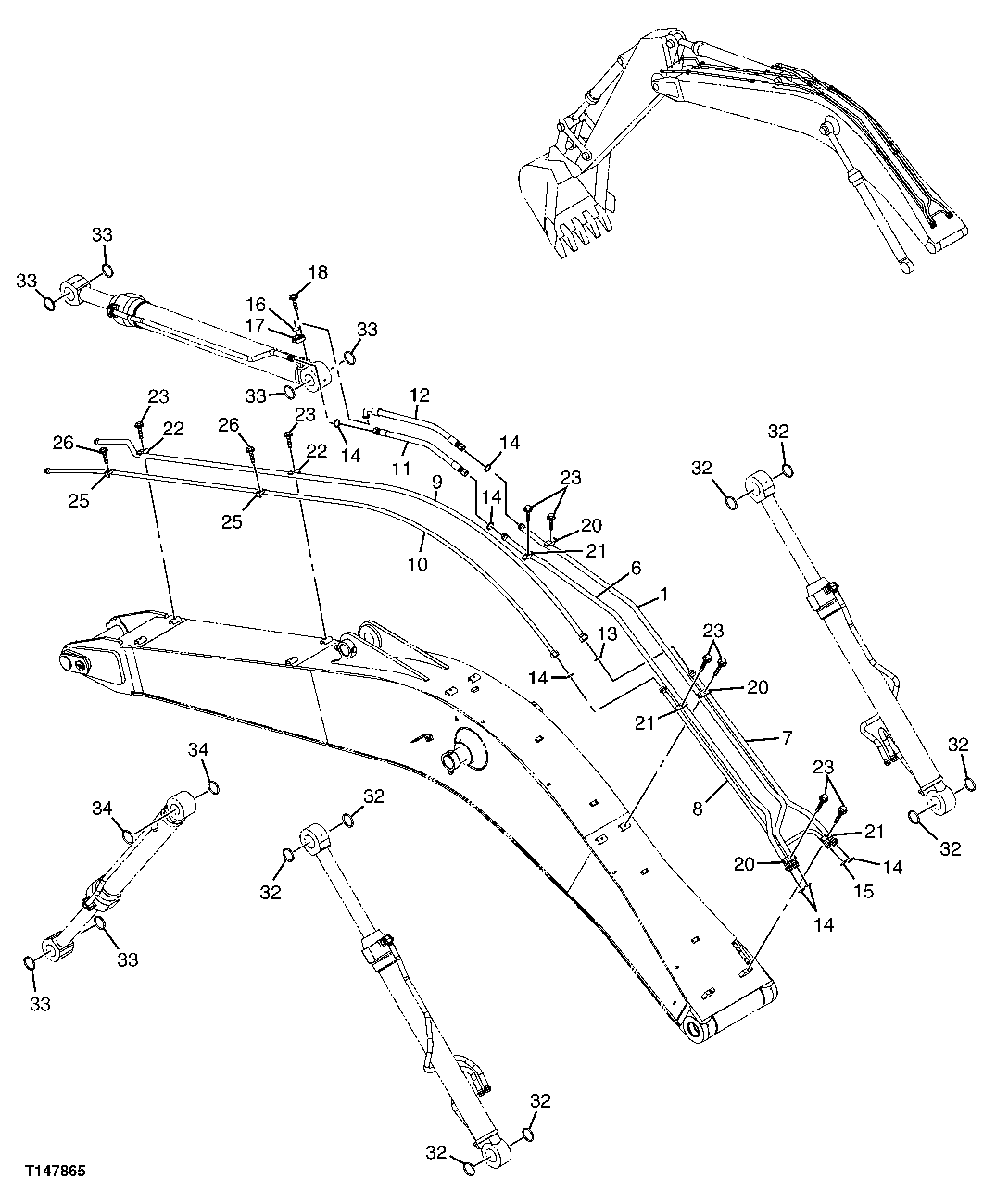

Запчасти John Deere 70CLC 364 - FRONT HYDRAULIC LINES 3363 Lines, Hoses & Fittings

1

8066502J

Oil Line

(SUB FOR AT218026 OR 8066502)

1шт.

6

8066503J

Oil Line

(SUB FOR AT218027 OR 8066503)

1шт.

7

9746887J

Oil Line

(SUB FOR AT218046 OR 9746887)

1шт.

8

9746888

Oil Tube

(SUB FOR AT218047)

1шт.

9

8066506J

Oil Line

(SUB FOR AT218028 OR 8066506)

1шт.

10

8066507J

Oil Line

(SUB FOR AT218029 OR 8066507)

1шт.

11

AT159574

Hydraulic Hose

1шт.

12

AT131302

Hydraulic Hose

1шт.

13

T78612

O-Ring

1шт.

14

T76938

O-Ring

7шт.

15

T77858

O-Ring

1шт.

16

T78313

O-Ring

1шт.

17

4085560

Flange Fitting

(SUB FOR TH101960)

2шт.

18

19M9163

Screw

M12 X 40 (SUB FOR J781240)

4шт.

20

4189860

Clamp

(SUB FOR TH108314)

3шт.

21

4153488

Clamp

(SUB FOR TH103780)

3шт.

22

4190127

Clamp

(SUB FOR TH108313)

2шт.

23

19M8348

Cap Screw

M12 X 65

8шт.

12H301

Lock Washer

1/2"

8шт.

25

4190126

Clamp

(SUB FOR TH109830)

2шт.

26

19M7363

Cap Screw

M12 X 60

2шт.

12H301

Lock Washer

1/2"

2шт.

32

TH102411

Seal

8шт.

33

TH102445

Seal

6шт.

34

TH102446

Seal

2шт.
