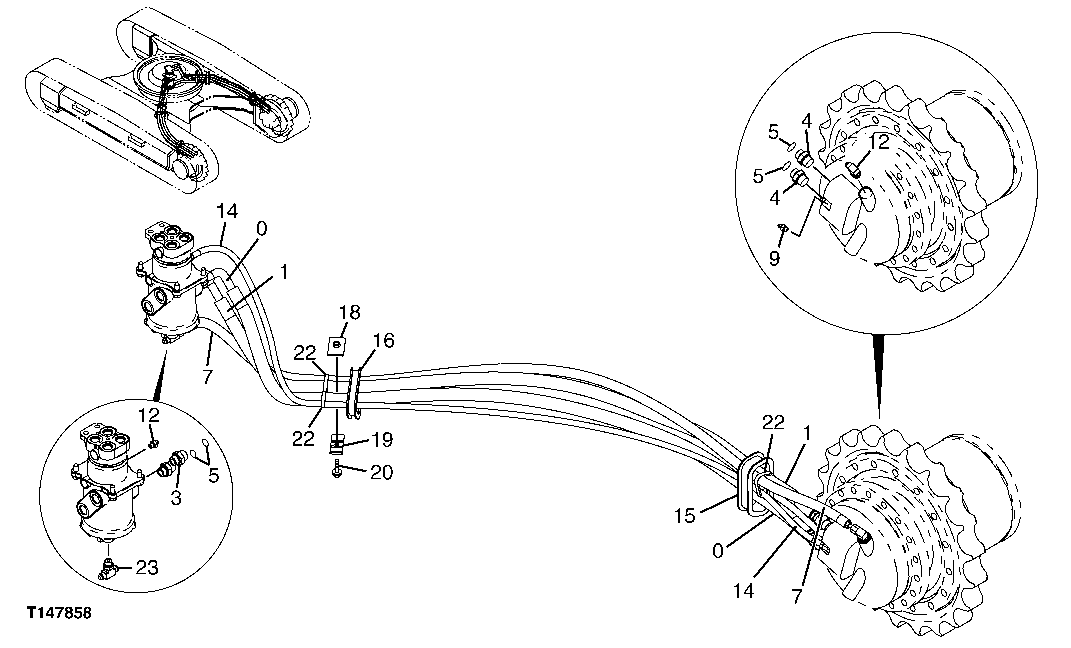

Запчасти John Deere 70CLC 25 - PROPEL HYDRAULIC LINES 0263 LINES, HOSES & FITTINGS

0

AT217987

Hydraulic Hose

(SUB FOR AT204776)

1шт.

1

AT217987

Hydraulic Hose

(SUB FOR AT204775)

1шт.

3

4189601

Adapter Fitting

(SUB FOR THA853168 ) (SUB FO R A853168, THIS APPLICATION)

2шт.

AT318035

O-Ring

SUB FOR 4506426, TH100055 Not Illustrated

1шт.

4506424

O-Ring

SUB FOR AT318035 THIS AP PLICATION Not Illustrated

1шт.

4

A853108

Adapter Fitting

2шт.

A853188

Adapter Fitting

2шт.

A853108

Adapter Fitting

2шт.

A853188

Adapter Fitting

2шт.

970860

O-Ring

37.700 X 3.500 mm (1-31/64 " X 0.138") Not Illustrated

2шт.

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138") Not Illustrated

2шт.

970860

O-Ring

37.700 X 3.500 mm (1-31/64 " X 0.138") Not Illustrated

2шт.

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138") Not Illustrated

2шт.

5

T76938

O-Ring

4шт.

7

4459641

Hydraulic Hose

(SUB FOR TH4459641)

1шт.

9

A852122

Adapter Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

12

A852122

Adapter Fitting

(SUB FOR P67968)

2шт.

M800650

Packing

1шт.

14

4429283

Hydraulic Hose

(SUB FOR TH4450505 OR 4450505)

1шт.

4429283

Hydraulic Hose

1шт.

4450505

Hydraulic Hose

1шт.

15

4380020

Grommet

(SUB FOR AT250021)

1шт.

16

4428098

Grommet

1шт.

18

4202103

Clamp

(SUB FOR TH108302)

1шт.

19

9736782

Clamp

(SUB FOR AT201191)

1шт.

20

19M8348

Cap Screw

M12 X 65

1шт.

12H301

Lock Washer

1/2"

1шт.

22

H77698

Tie Band

4шт.

23

A852544

Tee Fitting

(SUB FOR THA852544)

1шт.

4506418

O-Ring

(SUB FOR U46489)

1шт.
