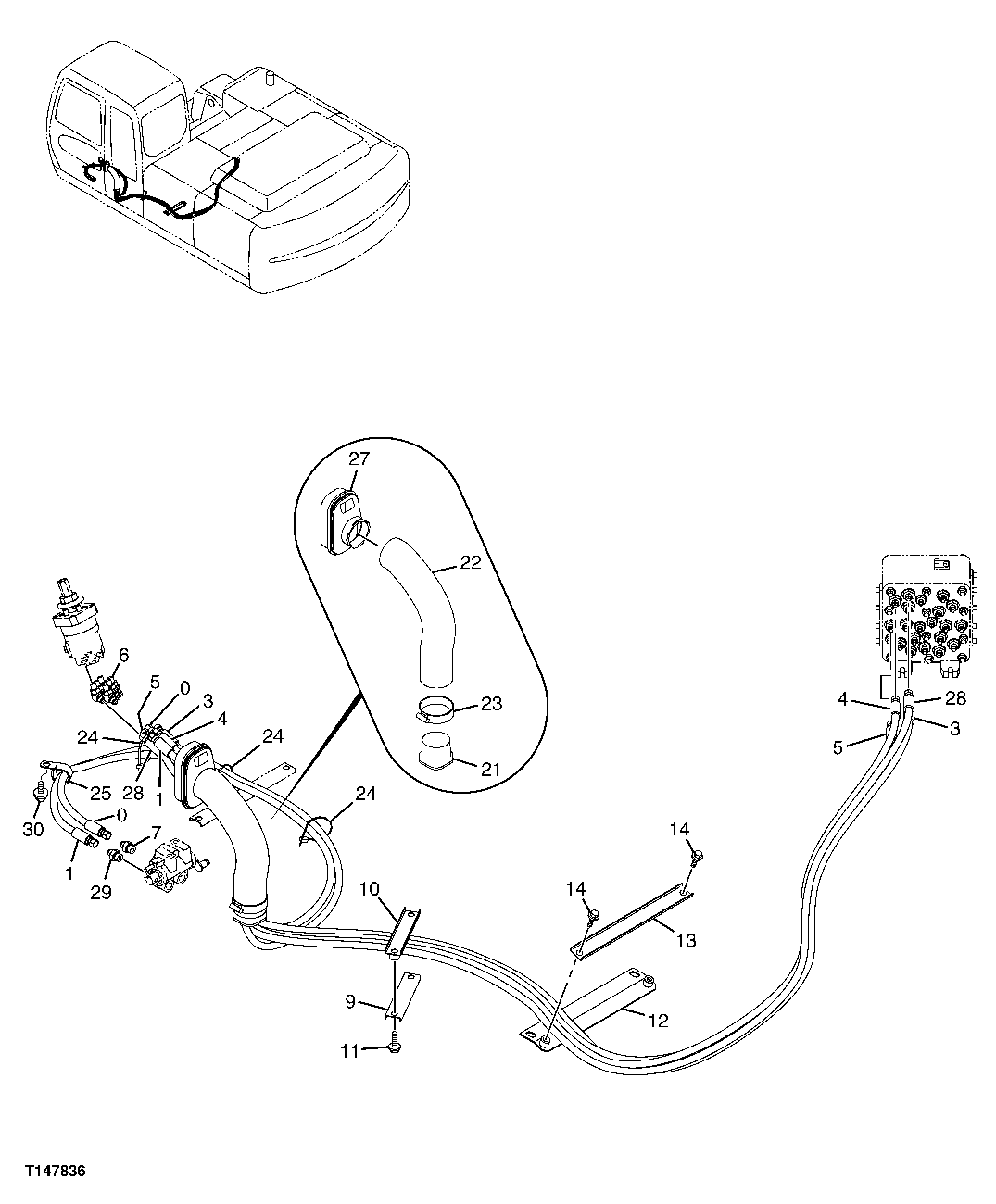

Запчасти John Deere 70CLC 358 - PILOT HYDRAULIC LINES 3363 Lines, Hoses & Fittings

0

4437653

Hydraulic Hose

(SUB FOR TH4437653)

1шт.

1

4437656

Hydraulic Hose

(SUB FOR TH4437656) Fabricate

1шт.

3

4437634

Hydraulic Hose

(SUB FOR TH4437634)

1шт.

4

4484016

Hydraulic Hose

(SUB FOR TH4437636)

1шт.

5

4437637

Hydraulic Hose

(SUB FOR TH4437637)

1шт.

6

A852223

Elbow Fitting

(SUB FOR THA852223)

6шт.

M800650

Packing

1шт.

7

A852133

Adapter Fitting

(SUB FOR P67978)

1шт.

CH11570

O-Ring

1шт.

9

4412666

Clamp

(SUB FOR TH4412666)

1шт.

10

9751787

Clamp

(SUB FOR TH9751787)

1шт.

11

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

12

8077444

Bracket

(SUB FOR TH8077444)

1шт.

13

4425177

Channel

(SUB FOR TH4425177)

1шт.

14

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

21

3079728

Bushing

(SUB FOR AT250589)

1шт.

22

4351175

Hose

(SUB FOR AT213957)

1шт.

23

4351774

Clamp

(SUB FOR AT213962)

1шт.

24

H77698

Tie Band

3шт.

25

AT121321

Hose Clamp

1шт.

27

2045998

Bushing

(SUB FOR TH2045998)

1шт.

28

4484016

Hydraulic Hose

(SUB FOR TH4444732 OR 4459260)

1шт.

29

4261938

Fitting

(SUB FOR AT154285)

1шт.

CH11570

O-Ring

1шт.

30

19M7938

Cap Screw

M10 X 20

1шт.
