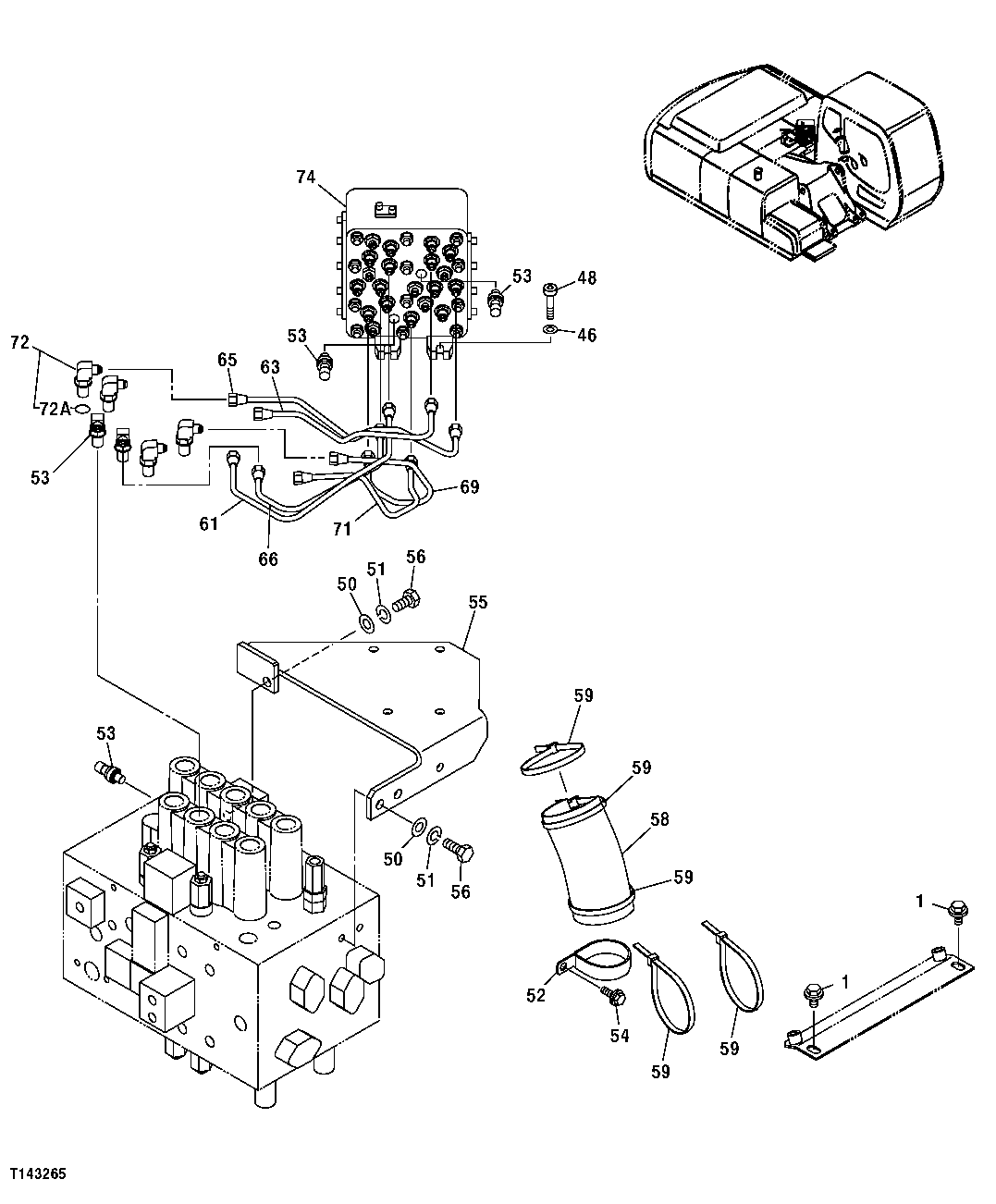

Запчасти John Deere 70CLC 355 - PILOT HYDRAULIC LINES 3363 Lines, Hoses & Fittings

1

19M7402

Cap Screw

M10 X 25

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

46

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

48

L159272

Screw

(SUB FOR AT213615 OR J781040)

4шт.

50

12H317

Lock Washer

9/16"

3шт.

51

24M7085

Washer

15 X 28 X 2.500 mm

3шт.

52

4204136

Clip

(SUB FOR TH4204136)

1шт.

53

4436535

Sensor

(SUB FOR TH4436535)

3шт.

O-Ring

3шт.

54

19M7662

Cap Screw

M10 X 30

1шт.

55

8082452

Bracket

(SUB FOR TH8082452)

1шт.

56

19M6332

Cap Screw

M14 X 35

3шт.

58

4219918

Isolator

(SUB FOR TH111416)

1шт.

59

H77698

Tie Band

5шт.

61

4630938

Hydraulic Hose

Boom Down ALSO ORDER 4202422 AND 4455 585, (SUB FOR TH4452046) 4452046 NLA)

1шт.

4202422

Adapter Fitting

1шт.

4455585

Reducer

1шт.

63

4630941

Hydraulic Hose

Arm In ALSO ORDER 4455585 4202 422 AND H77698, SUB FOR 4452047

1шт.

4455585

Reducer

1шт.

4202422

Adapter Fitting

1шт.

H77698

Tie Band

1шт.

64

H77698

Tie Band

1шт.

65

4630940

Hydraulic Hose

Right Swing ALSO ORDER 4455585 42 02422 AND H77698, SUB FOR 4452048)

1шт.

4455585

Reducer

1шт.

4202422

Adapter Fitting

1шт.

H77698

Tie Band

1шт.

66

4452049

Oil Line

Bucket Curl (SUB FOR TH4452049)

1шт.

69

4452050

Oil Line

Left Propel Reverse (SUB FOR TH4452050)

1шт.

71

4452051

Oil Line

Right Propel Reverse (SUB FOR TH4452051)

1шт.

72

4420392

Fitting

(SUB FOR TH4420392)

6шт.

72A

CH11570

O-Ring

1шт.

74

4468337

Flow Control Hyd. Valve

Shuttle

1шт.

4486321

Valve

Shuttle

1шт.
