Запчасти John Deere 70CLC 354 - PILOT HYDRAULIC LINES 3363 Lines, Hoses & Fittings

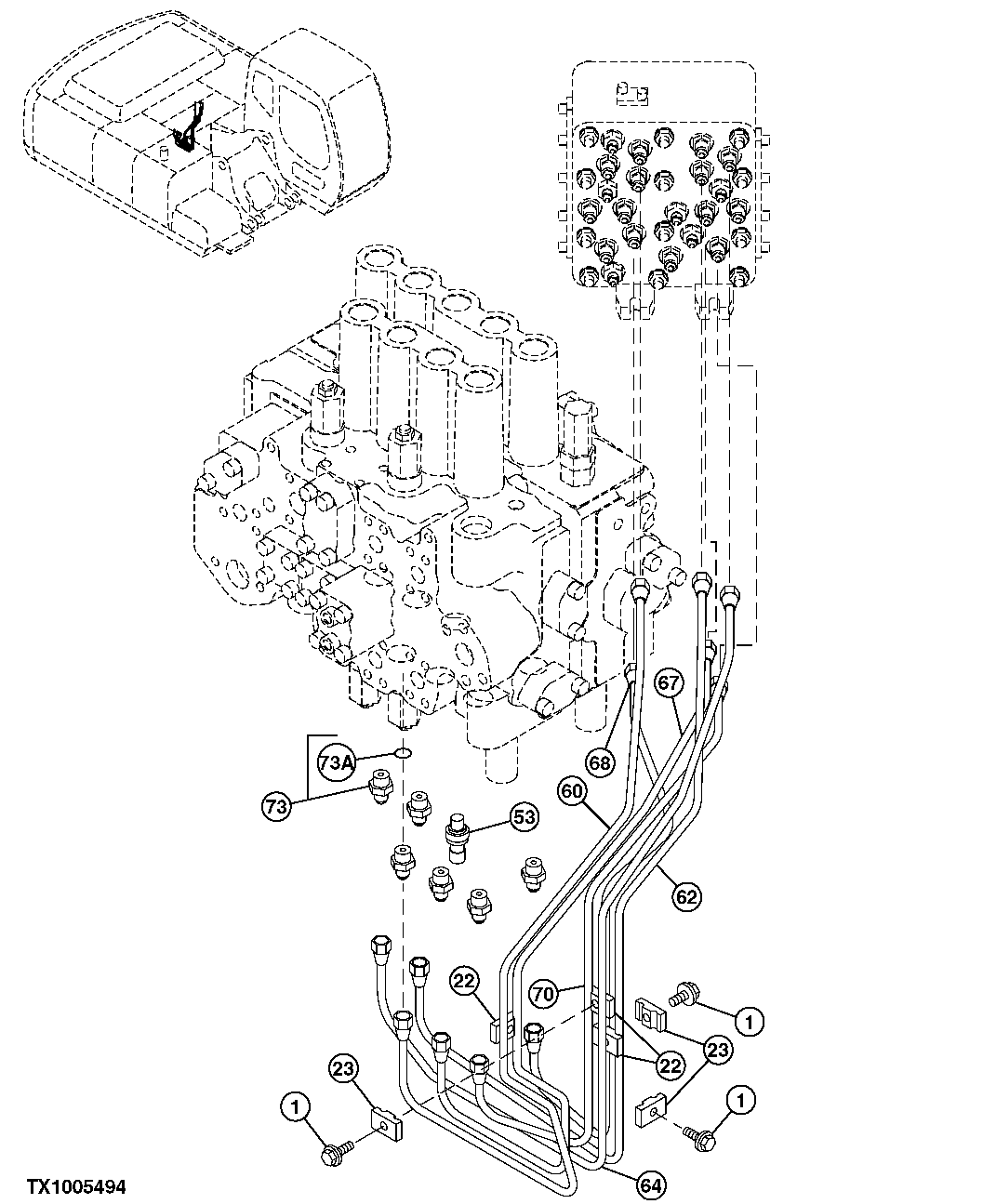

Схема запчастей John Deere 70CLC - 354 - PILOT HYDRAULIC LINES 3363 Lines, Hoses & Fittings

Артикул

Название

Примечание

Количество

1

19M7163

Cap Screw

M8 X 25

3шт.

Washer

12M7065 NLA

3шт.

22

9735305

Clamp

SUB FOR AP33637

3шт.

23

9735306

Clamp

SUB FOR AP33638

3шт.

53

4436535

Sensor

SUB FOR TH4436535

1шт.

CH11570

O-Ring

1шт.

60

3091680

Oil Line

SUB FOR TH3091680

1шт.

62

3091681

Oil Line

SUB FOR TH3091681

1шт.

64

3091682

Oil Line

SUB FOR TH3091682

1шт.

67

3091683

Oil Line

SUB FOR TH3091683

1шт.

68

3091684

Oil Line

SUB FOR TH3091684

1шт.

70

3091685

Oil Line

SUB FOR TH3091685

1шт.

73

4255305

Fitting

SUB FOR AT213809

6шт.

73A

CH11570

O-Ring

6шт.

Выбрано товаров: 14
