Запчасти John Deere 70CLC 350 - PILOT LINES (CONTROL VALVE TO ROTARY AND SIGNAL MANIFOLD) (SN -071103) 3363 Lines, Hoses & Fittings

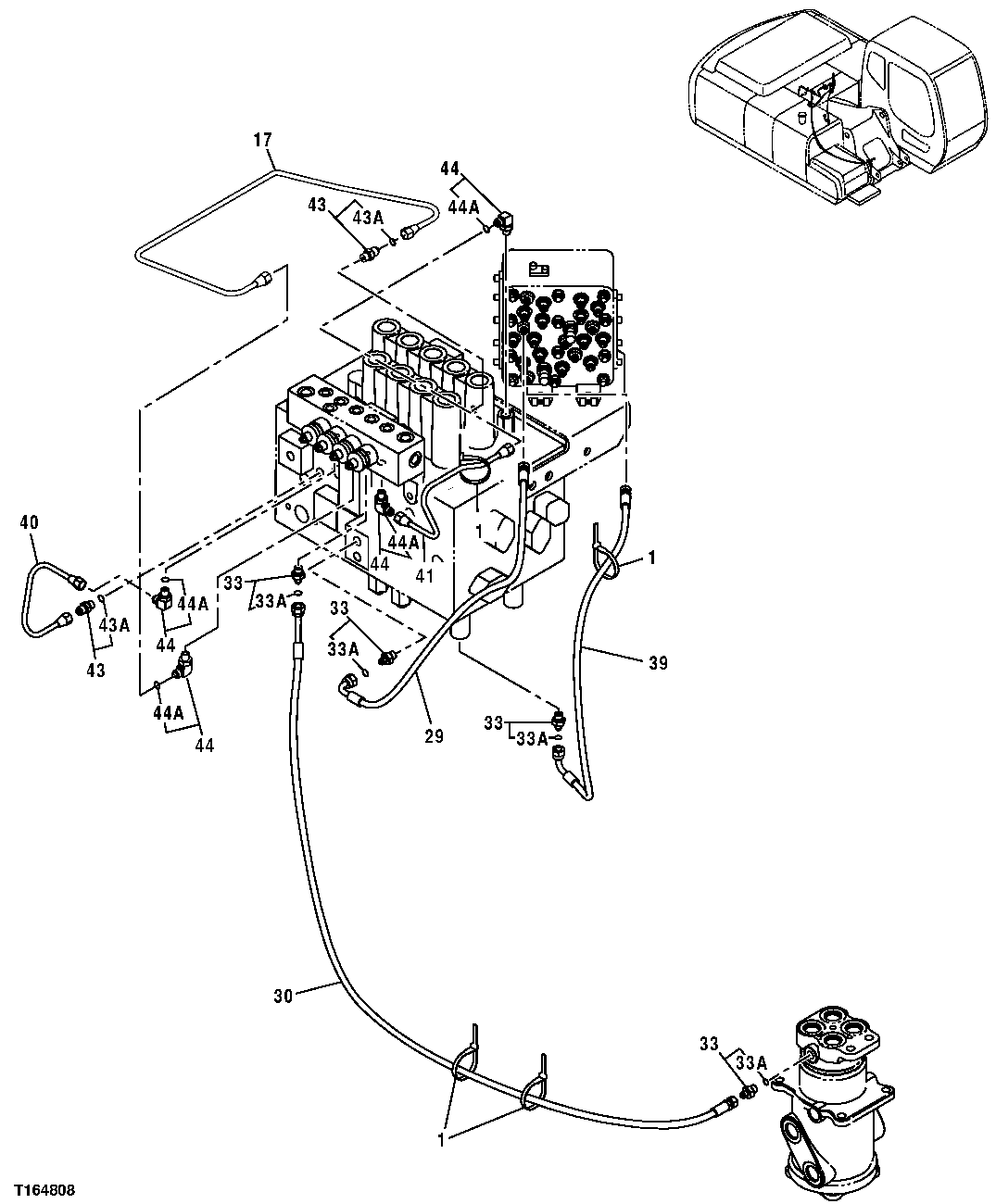

Схема запчастей John Deere 70CLC - 350 - PILOT LINES (CONTROL VALVE TO ROTARY AND SIGNAL MANIFOLD) (SN -071103) 3363 Lines, Hoses & Fittings

Артикул

Название

Примечание

Количество

1

H77698

Tie Band

4шт.

17

3091679

Oil Line

1шт.

29

4427111

Hydraulic Hose

(SUB FOR TH4427111)

1шт.

30

4437938

Hydraulic Hose

1шт.

33

A852122

Adapter Fitting

(SUB FOR P67968)

4шт.

33A

M800650

Packing

1шт.

39

4435036

Hydraulic Hose

(SUB FOR TH4435036)

1шт.

40

4470393

Hose

ALSO ORDER (2) A852122, (SU B FOR TH4452044 AND 4452044)

1шт.

A852122

Adapter Fitting

2шт.

41

4452045

Oil Line

(SUB FOR TH4452045)

1шт.

43

4255304

Fitting

(SUB FOR AT155270)

2шт.

43A

M800650

Packing

1шт.

44

4293950

Fitting

(SUB FOR AT160584)

4шт.

44A

M800650

Packing

1шт.

Выбрано товаров: 14
