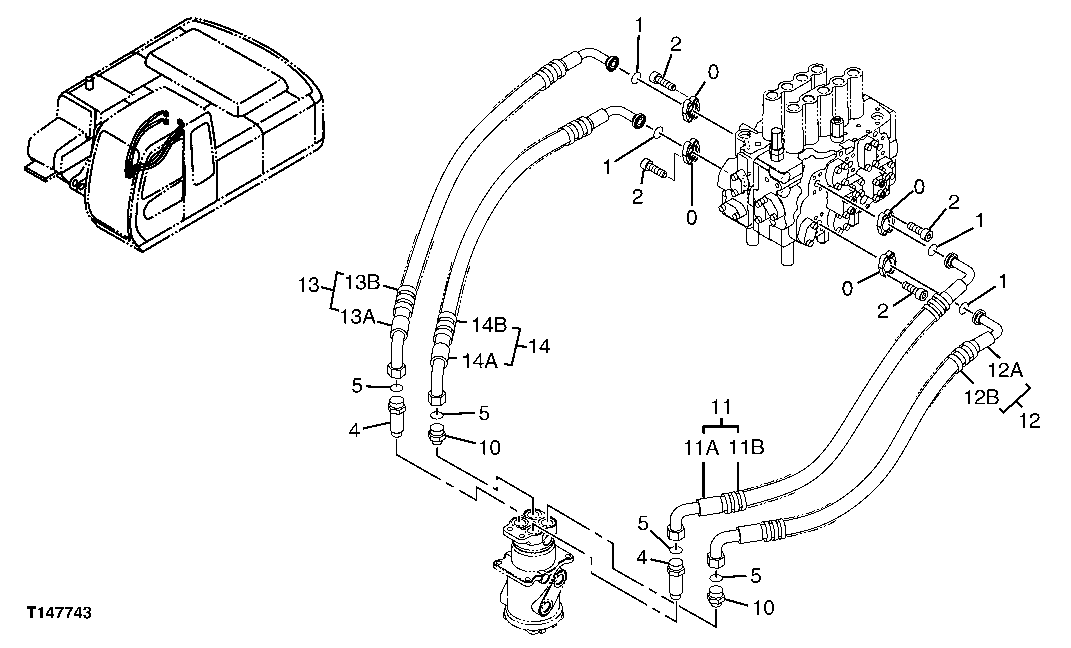

Запчасти John Deere 70CLC 343 - CONTROL VALVE HYDRAULIC LINES 3363 Lines, Hoses & Fittings

0

R29424

Flange Fitting

8шт.

1

T59014

O-Ring

4шт.

2

19M7576

Screw

M10 X 30 (SUB FOR J781030)

16шт.

4

4198411

Adapter Fitting

(SUB FOR TH111292)

2шт.

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

5

T76938

O-Ring

4шт.

10

4189601

Adapter Fitting

(SUB FOR THA853168, OR A853168THIS APPLICATION)

2шт.

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

11

Hydraulic Hose

( TH9199904, 9199904 NOT AVAIL ABLE) (SUB 4438881 AND XHG-075)

1шт.

11A

4438881

Hydraulic Hose

(SUB FOR TH4438881)

1шт.

11B

Hose Guard

(MAKE FROM XHG-075, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.

12

Hydraulic Hose

( TH9199905, 9199905 NOT AVAIL ABLE) (SUB 4438885 AND XHG-075)

1шт.

12A

4438885

Hydraulic Hose

(SUB FOR TH4438885)

1шт.

12B

Hose Guard

(MAKE FROM XHG-075, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.

13

Hydraulic Hose

( TH9206186, 9206186 NOT AVAIL ABLE) (SUB 4466479 AND XHG-075)

1шт.

13A

4466479

Hydraulic Hose

(SUB FOR TH4466479)

1шт.

13B

Hose Guard

(MAKE FROM XHG-075, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.

14

Hydraulic Hose

( TH9206187, 9206187 NOT AVAIL ABLE) (SUB 4466480 AND XHG-075)

1шт.

14A

4466480

Hydraulic Hose

(SUB FOR TH4466480)

1шт.

14B

Hose Guard

(MAKE FROM XHG-075, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.
