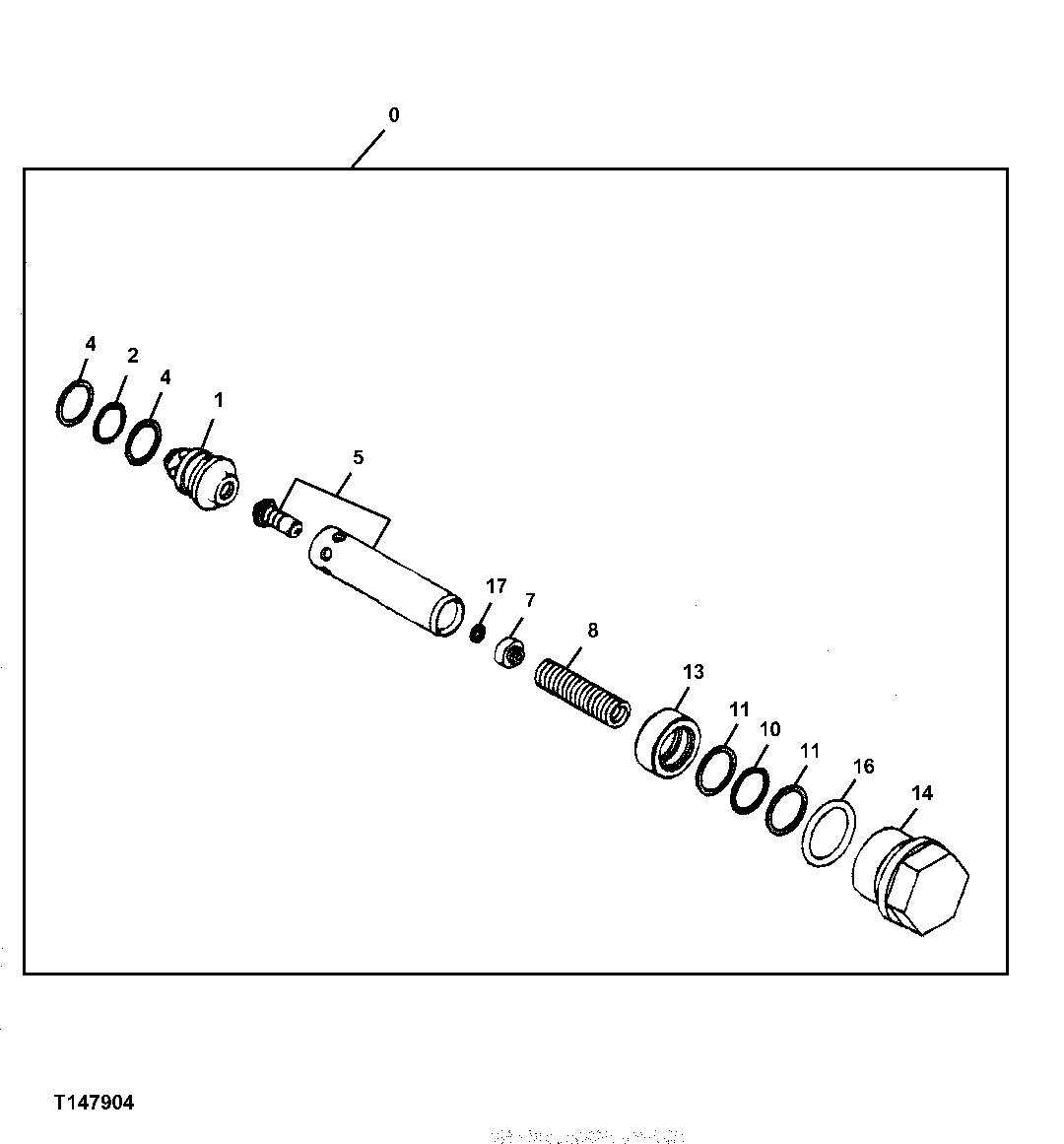

Запчасти John Deere 70CLC 23 - Propel Motor Crossover Relief Valve Components ( - XXXXXX) 0260 AXLES, DIFF. & SUSP. SYS. HYD. (INCL. FWD)

0

9185757

Pressure Relief Valve

Propel Motor Brake Valve USE WITH 91 56041, 9156041EX, 9185360 OR 9158391

1шт.

1

Sleeve

3086417 NLA

1шт.

2

4506418

O-Ring

SUB FOR U46489

1шт.

4

4033725

Back-Up Ring

SUB FOR TH103576 OR 4S01080

2шт.

5

Valve

9753750 NLA

1шт.

7

Guide

4396955 NLA

1шт.

8

Spring

4396836 NLA

1шт.

10

CH12329

Packing

1шт.

11

4027959

Back-Up Ring

SUB FOR TH100771

2шт.

13

Piston

4396950 NLA

1шт.

14

4397029

Pipe Plug

SUB FOR TH4397029

1шт.

16

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

17

24M7029

Shim

1шт.
