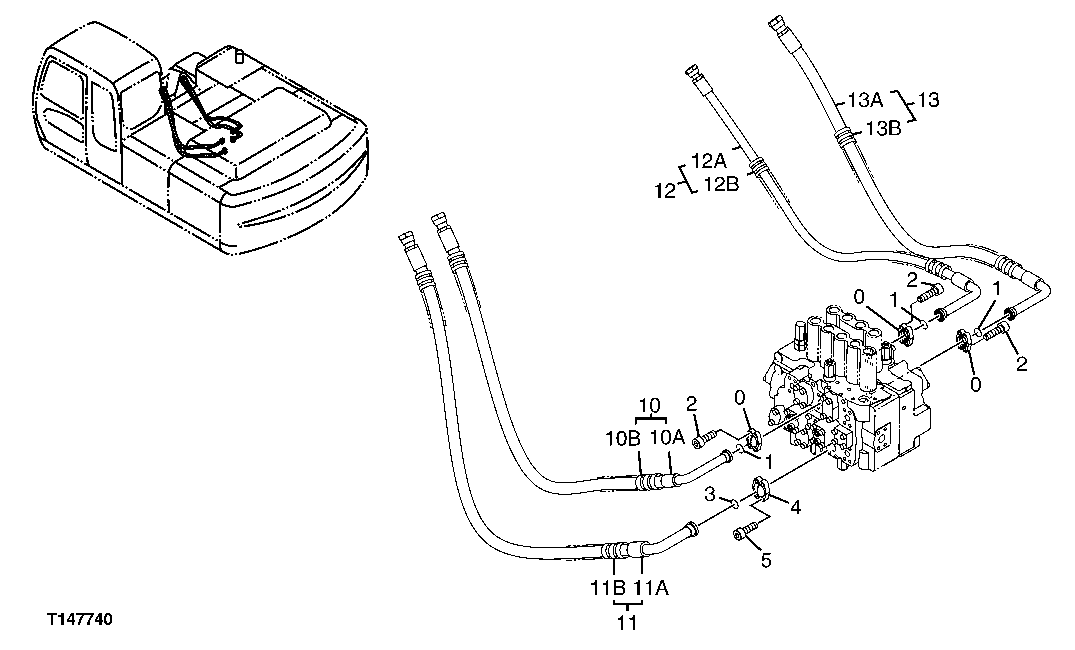

Запчасти John Deere 70CLC 341 - CONTROL VALVE HYDRAULIC LINES 3363 Lines, Hoses & Fittings

0

R29424

Flange Fitting

6шт.

1

T59014

O-Ring

3шт.

2

19M7576

Screw

M10 X 30 SUB FOR J781030

12шт.

3

T78313

O-Ring

1шт.

4

H61354

Flange Fitting

2шт.

5

19M7576

Screw

M10 X 30 SUB FOR J781030

4шт.

10

Hydraulic Hose

9199749, TH9199749 NLA , SUB 4438866 AND XHG-075

1шт.

10A

4438866

Hose

SUB FOR TH4438866

1шт.

10B

Hose Guard

432794 NLA, MF XHG-07 5 CTL, SUB FOR AT213832

2шт.

11

Hydraulic Hose

TH9199873 NLA

1шт.

11A

4447099

Hydraulic Hose

SUB FOR TH4447099

1шт.

11B

Hose Guard

4327294 NLA, MF XHG-07 5 CTL, SUB FOR AT213832

3шт.

12

Hydraulic Hose

TH9209641 NLA

1шт.

12A

4410314

Hydraulic Hose

SUB FOR TH4410314

1шт.

12B

Hose Guard

4327294 NLA, MF XHG-07 5 CTL, SUB FOR AT213832

3шт.

13

Hydraulic Hose

TH9209638 NLA

1шт.

13A

4438866

Hose

SUB FOR TH4438866

1шт.

13B

Hose Guard

MF XHG-075 CTL, SUB FOR AT213832

3шт.
