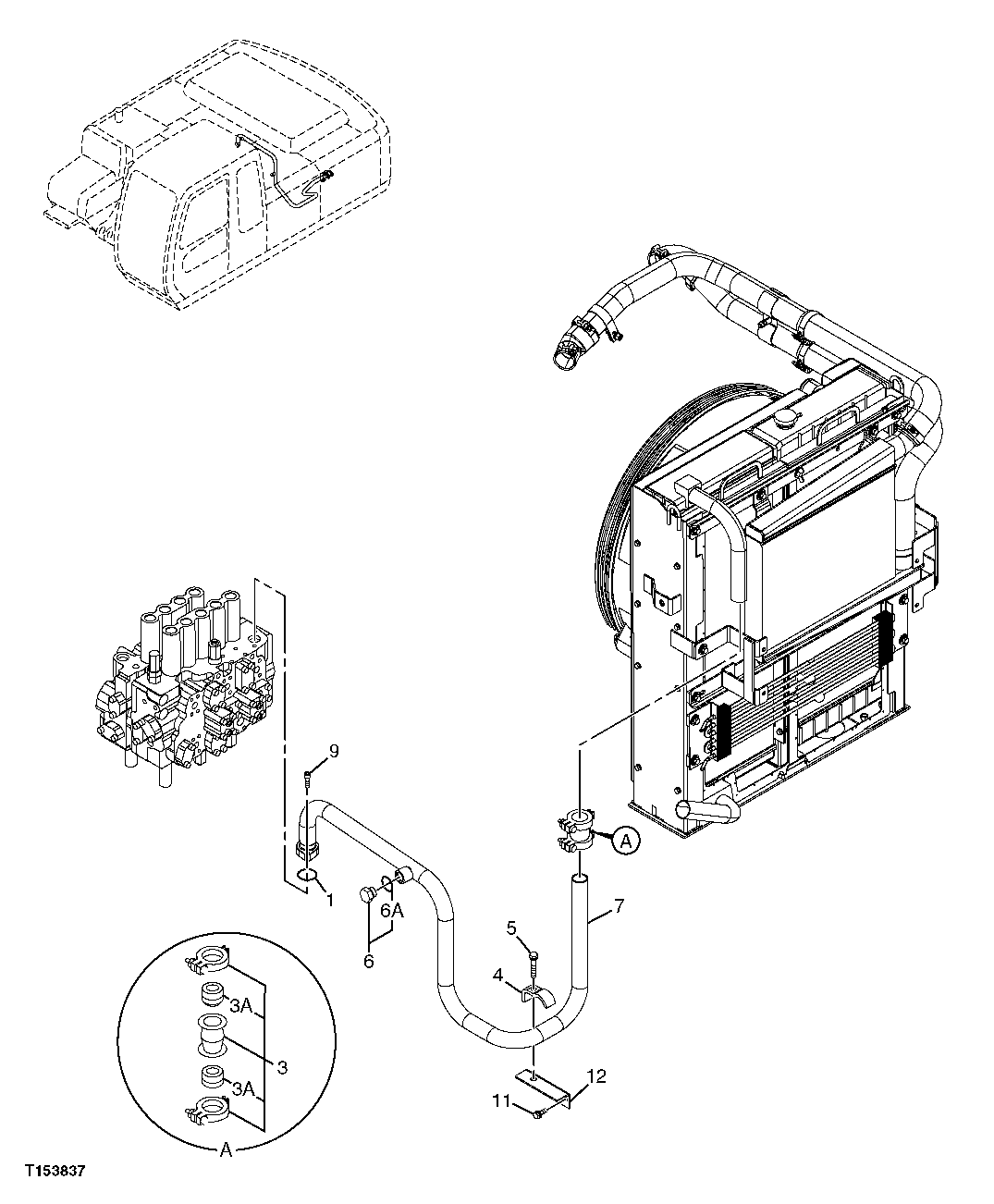

Запчасти John Deere 70CLC 338 - RETURN HYDRAULIC LINES 3363 Lines, Hoses & Fittings

1

A811040

O-Ring

1шт.

3

4069801

Coupling

(SUB FOR 4712341 AND 4196259)

1шт.

3A

4196259

Seal

NLA, ORDER 4069801

2шт.

4

4053698

Clamp

1шт.

5

19M8348

Cap Screw

M12 X 65

1шт.

12H301

Lock Washer

1/2"

1шт.

6

A885006

Plug

( P68008 NLA)

1шт.

6A

AT318035

O-Ring

(SUB FOR 4506424)

1шт.

7

7041466

Line

1шт.

9

19M8337

Screw

M10 X 30

2шт.

11

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12

9757787

Bracket

2шт.
