320 - CONTROL VALVE

Запчасти John Deere 70CLC 320 - CONTROL VALVE 3362 Control & Load Holding Valves

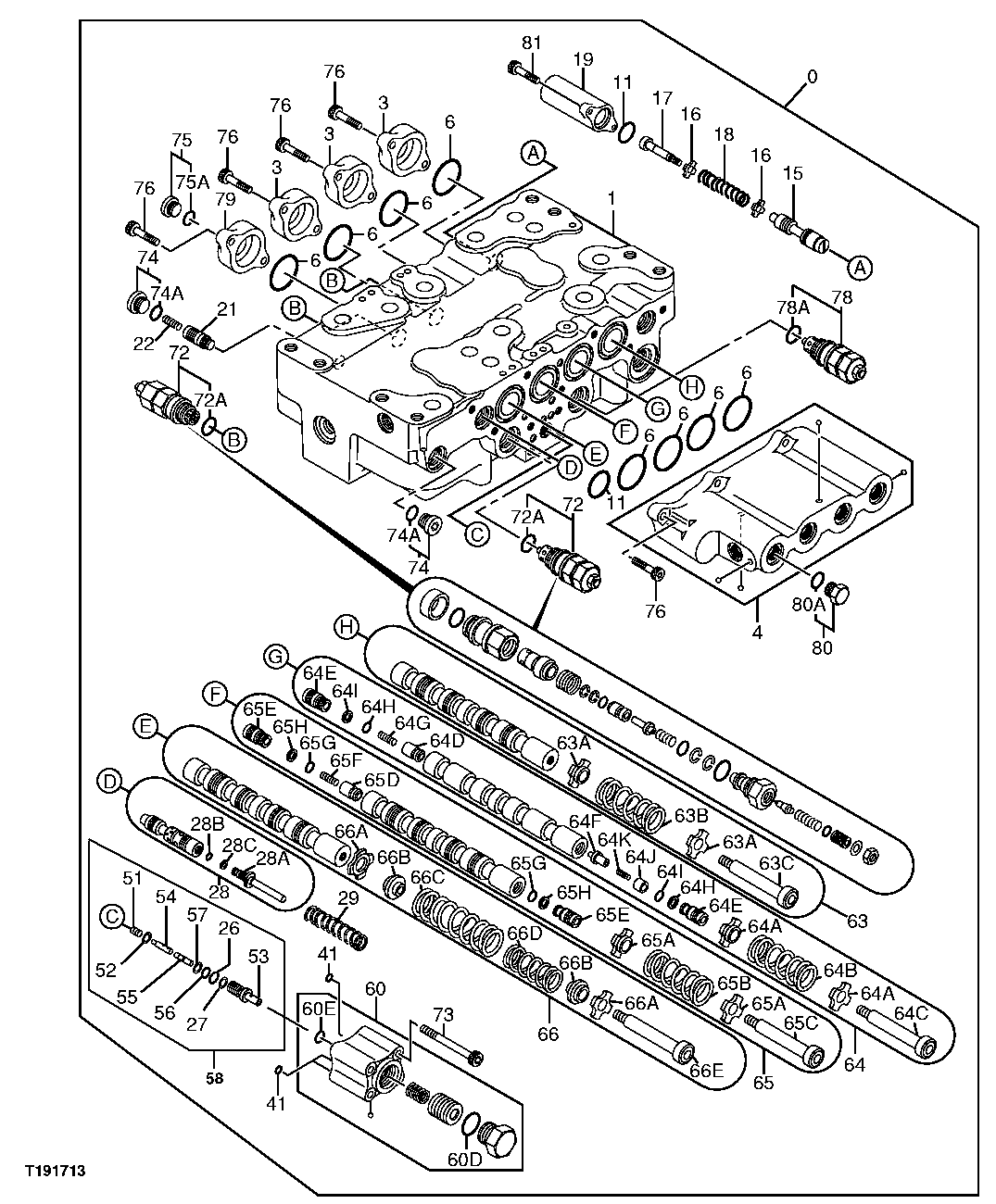

Схема запчастей John Deere 70CLC - 320 - CONTROL VALVE 3362 Control & Load Holding Valves
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

4437242

Hyd Actuated Control Valve

(SUB FOR 4437242EX)(CONTAINS ALL PARTS ON THIS PAGE - ADDITIONAL COMPONENTS L ISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

1

Housing

1шт.

3

0791801

Cap

(SUB FOR TH0791801)

3шт.

4

4454201

Cap

(SUB FOR TH4454201)

1шт.

6

A811045R

O-Ring

(SUB FOR T74492 OR A811045)

8шт.

11

CH17886

Packing

(SUB FOR TH111690 ) (SUB FOR 4509182)

2шт.

15

Valve Spool

1шт.

16

0332904

Retainer

(SUB FOR TH110305)

2шт.

17

0735807

Spool

(SUB FOR TH0735807)

1шт.

18

0791902

Spring

(SUB FOR TH0791902)

1шт.

19

0791803

Cap

(SUB FOR TH0791803)

1шт.

21

0791903

Poppet

(SUB FOR TH0791903)

1шт.

22

0668007

Spring

(SUB FOR AT213693)

1шт.

26

4317636

O-Ring

(SUB FOR AT202454)

1шт.

27

0332924

Back-Up Ring

(SUB FOR TH110325)

1шт.

28

Valve Spool

1шт.

28A

0791904

Spacer

(SUB FOR TH0791904)

1шт.

28B

4013748

O-Ring

(SUB FOR TH4013748)

1шт.

28C

0250914

Back-Up Ring

(SUB FOR AT218048)

1шт.

29

0791914

Spring

(SUB FOR TH0791914)

1шт.

41

4506406

O-Ring

(SUB FOR TH104587)

3шт.

51

0791808

Spring

(SUB FOR TH0791808)

1шт.

52

0791809

Valve Seat

(SUB FOR TH0791809)

1шт.

53

Sleeve

( 0791810 NLA)

1шт.

54

Poppet

( 0791811 NLA)

1шт.

55

Valve Spool

1шт.

56

CH11560

Packing

1шт.

57

4105067

Back-Up Ring

(SUB FOR AT130859)

1шт.

58

0791818

Valve

(ASSY)

1шт.

60

4454198

Flow Control Hyd. Valve

1шт.

60D

R29936

O-Ring

1шт.

60E

CH17167

O-Ring

1шт.

63

Valve Spool

1шт.

63A

0306003

Plate

(SUB FOR TH109968)

2шт.

63B

0309705

Spring

(SUB FOR TH109970)

1шт.

63C

0791815

Stop

(SUB FOR TH0791815)

1шт.

64

Valve Spool

1шт.

64A

0306003

Plate

(SUB FOR TH109968)

2шт.

64B

0309705

Spring

(SUB FOR TH109970)

1шт.

64C

0791815

Stop

(SUB FOR TH0791815)

1шт.

64D

0791905

Poppet

(SUB FOR TH0791905)

1шт.

64E

0791906

Pipe Plug

(SUB FOR TH0791906)

2шт.

64F

0791907

Poppet

(SUB FOR TH0791907)

1шт.

64G

0668007

Spring

(SUB FOR AT213693)

1шт.

64H

4317636

O-Ring

(SUB FOR AT202454)

2шт.

64I

0332924

Back-Up Ring

(SUB FOR TH110325)

2шт.

64J

Sleeve

(SUB FOR TH0791908)( 0791908 NLA)

1шт.

64K

Spring

(SUB FOR TH0791909)( 0791909 NLA)

1шт.
