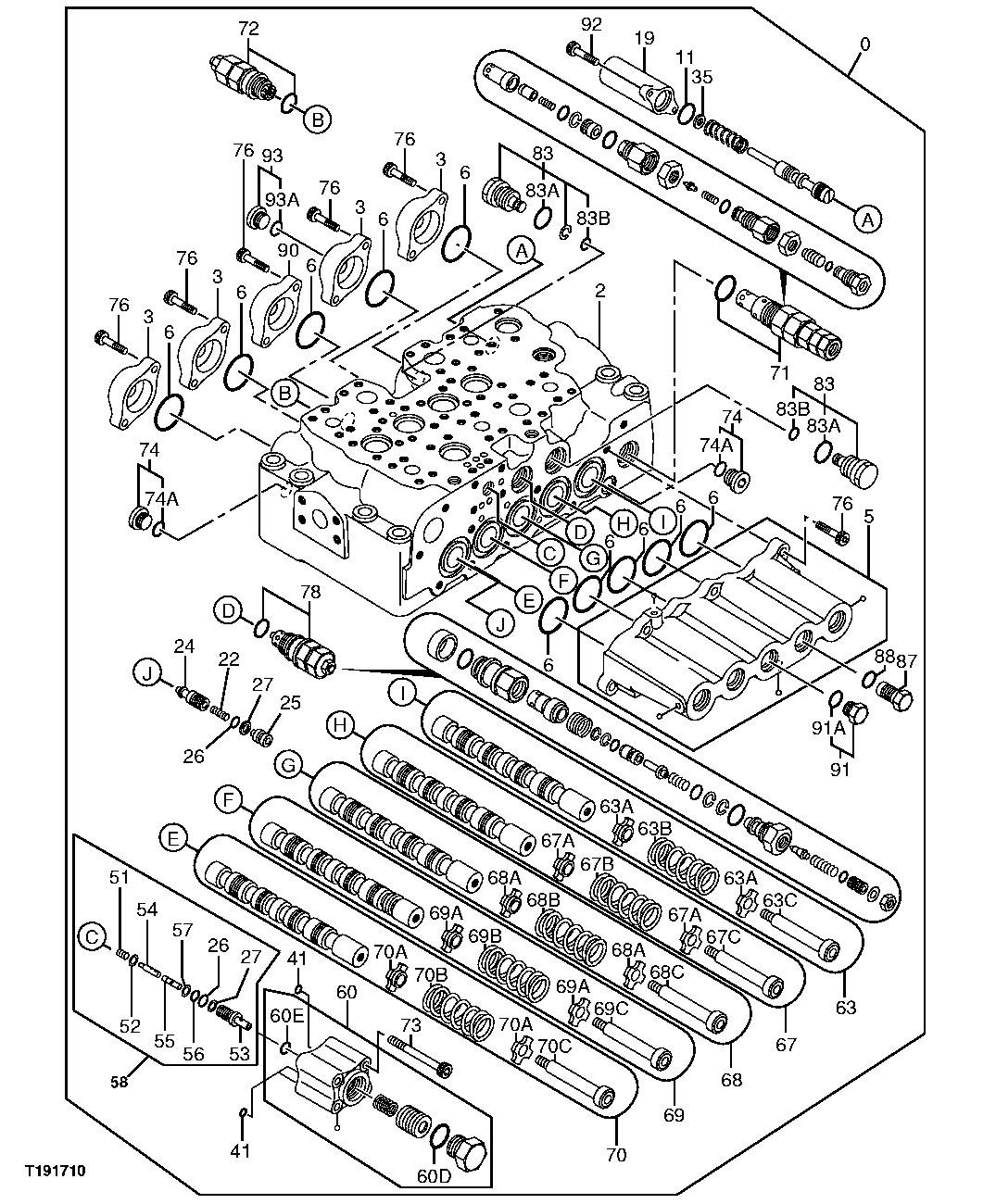

Запчасти John Deere 70CLC 319 - CONTROL VALVE 3362 Control & Load Holding Valves

0

4437242

Hyd Actuated Control Valve

(SUB FOR 4437242EX)(CONTAINS ALL PARTS ON THIS PAGE - ADDITIONAL COMPONENTS L ISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

2

Housing

1шт.

3

0791801

Cap

(SUB FOR TH0791801)

4шт.

5

4454202

Cap

(SUB FOR TH4454202)

1шт.

6

A811045R

O-Ring

(SUB FOR T74492 OR A811045)

10шт.

11

CH17886

Packing

(SUB FOR TH111690 ) (SUB FOR 4509182)

1шт.

19

0791803

Cap

(SUB FOR TH0791803)

1шт.

22

0668007

Spring

(SUB FOR AT213693)

1шт.

24

0791804

Poppet

(SUB FOR TH0791804)

1шт.

25

0791805

Spacer

(SUB FOR TH0791805)

1шт.

26

4317636

O-Ring

(SUB FOR AT202454)

2шт.

27

0332924

Back-Up Ring

(SUB FOR TH110325)

2шт.

33

Valve Spool

1шт.

34

0791806

Spring

(SUB FOR TH0791806)

1шт.

35

0791807

Washer

(SUB FOR TH0791807)

1шт.

41

4506406

O-Ring

(SUB FOR TH104587)

3шт.

51

0791808

Spring

(SUB FOR TH0791808)

1шт.

52

0791809

Valve Seat

(SUB FOR TH0791809)

1шт.

53

Sleeve

( 0791810 NLA)

1шт.

54

Poppet

( 0791811 NLA)

1шт.

55

Valve Spool

1шт.

56

CH11560

Packing

1шт.

57

4105067

Back-Up Ring

(SUB FOR AT130859)

1шт.

58

0791818

Valve

(ASSY)

1шт.

60

4454198

Flow Control Hyd. Valve

1шт.

60D

R29936

O-Ring

1шт.

60E

CH17167

O-Ring

1шт.

63

Valve Spool

1шт.

63A

0306003

Plate

(SUB FOR TH109968)

2шт.

63B

0309705

Spring

(SUB FOR TH109970)

1шт.

63C

0791815

Stop

(SUB FOR TH0791815)

1шт.

67

Valve Spool

1шт.

67A

0306003

Plate

(SUB FOR TH109968)

2шт.

67B

0309705

Spring

(SUB FOR TH109970)

1шт.

67C

0791815

Stop

(SUB FOR TH0791815)

1шт.

68

Valve Spool

1шт.

68A

0306003

Plate

(SUB FOR TH109968)

2шт.

68B

0309705

Spring

(SUB FOR TH109970)

1шт.

68C

0791815

Stop

(SUB FOR TH0791815)

1шт.

69

Valve Spool

1шт.

69A

0306003

Plate

(SUB FOR TH109968)

2шт.

69B

0309705

Spring

(SUB FOR TH109970)

1шт.

69C

0791815

Stop

(SUB FOR TH0791815)

1шт.

70

Valve Spool

1шт.

70A

0306003

Plate

(SUB FOR TH109968)

2шт.

70B

0309705

Spring

(SUB FOR TH109970)

1шт.

70C

0791815

Stop

(SUB FOR TH0791815)

1шт.

71

4381811

Relief Valve

(SUB FOR AT217834)

1шт.

72

4372039

Relief Valve

(SUB FOR AT214285)

1шт.

73

0791622

Bolt

(SUB FOR TH0791622)

4шт.

74

0695007

Fitting Plug

(SUB FOR AT250518)

2шт.

74A

CH11570

O-Ring

1шт.

76

0459541

Bolt

(SUB FOR AT200931)

16шт.

78

4358914

Relief Valve

(SUB FOR AT213982)

1шт.

83

0667927

Fitting Plug

(SUB FOR AT213687)

2шт.

83A

U12547

O-Ring

1шт.

83B

0413616

O-Ring

(SUB FOR 4154207)

1шт.

87

0667931

Fitting Plug

(SUB FOR AT213691)

1шт.

88

CH11570

O-Ring

1шт.

90

0791816

Cap

(SUB FOR TH0791816)

1шт.

91

0332914

Drain Plug

(SUB FOR TH110003)

1шт.

91A

CH11570

O-Ring

1шт.

92

19M7603

Screw

M6 X 20 (SUB FOR 0455002)

2шт.

93

0218607

Pipe Plug

(INCLUDES 4297380)

1шт.

93A

4297380

O-Ring

1шт.
