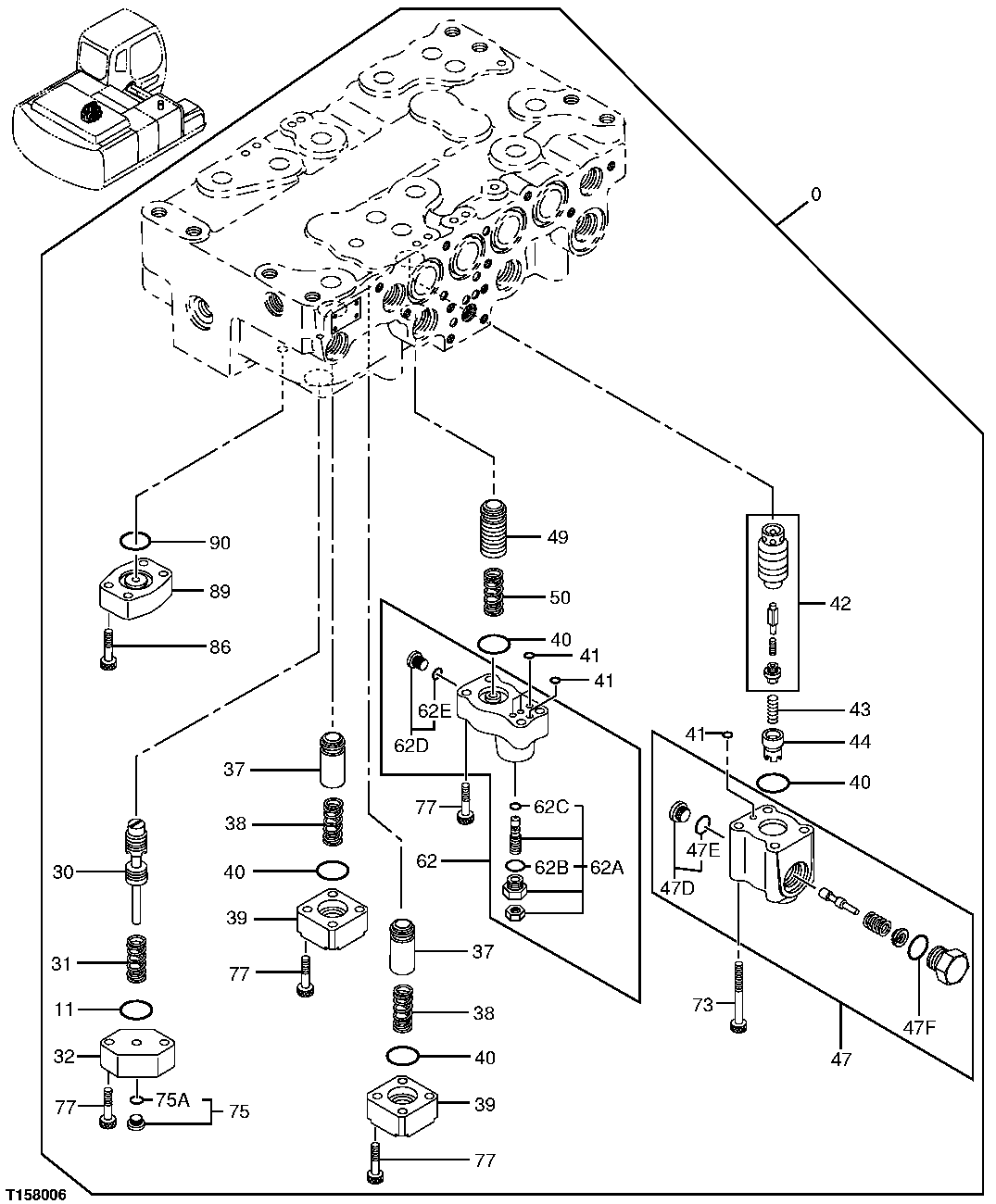

Запчасти John Deere 70CLC 318 - CONTROL VALVE 3362 Control & Load Holding Valves

0

4437242

Hyd Actuated Control Valve

(SUB FOR 4437242EX)COMPONENTS LIST ED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

11

CH17886

Packing

(SUB FOR TH111690 ) (SUB FOR 4509182)

1шт.

30

Valve Spool

1шт.

31

0791701

Spring

(SUB FOR TH0791701)

1шт.

32

0791702

Flange

(SUB FOR TH0791702)

1шт.

37

0791603

Poppet

(SUB FOR TH0791603)

2шт.

38

0791604

Spring

(SUB FOR TH0791604)

2шт.

39

0791605

Flange

(SUB FOR TH0791605)

2шт.

40

985098

O-Ring

(SUB FOR TH102528)

4шт.

41

4506406

O-Ring

(SUB FOR TH104587)

5шт.

42

4454193

Poppet

(SUB FOR TH4454193)

1шт.

43

0791606

Spring

(SUB FOR TH0791606)

1шт.

44

0791607

Spacer

(SUB FOR TH0791607)

1шт.

47

4454196

Flow Control Hyd. Valve

1шт.

47D

0667817

Fitting Plug

(SUB FOR AT213675)

1шт.

47F

4506418

O-Ring

(SUB FOR U46489)

1шт.

47E

M800650

Packing

1шт.

49

0791619

Poppet

(SUB FOR TH0791619)

1шт.

50

0791620

Spring

(SUB FOR TH0791620)

1шт.

62

4454200

Flow Control Hyd. Valve

1шт.

62A

Valve

1шт.

62B

M800650

Packing

1шт.

62C

4032996

O-Ring

(SUB FOR TH101490)

1шт.

62D

0667713

Fitting Plug

(SUB FOR AT213660)

1шт.

62E

4506408

O-Ring

(SUB FOR TH101490)

1шт.

73

0791622

Bolt

(SUB FOR TH0791622)

4шт.

75

0689405

Fitting Plug

(SUB FOR AT250517)

1шт.

75A

M800650

Packing

1шт.

77

0413909

Bolt

(SUB FOR AT154619)

14шт.

86

0413619

Bolt

(SUB FOR AT154591)

4шт.

89

Cap

( AT154604 NLA)

1шт.

90

A4730R

O-Ring

1шт.
