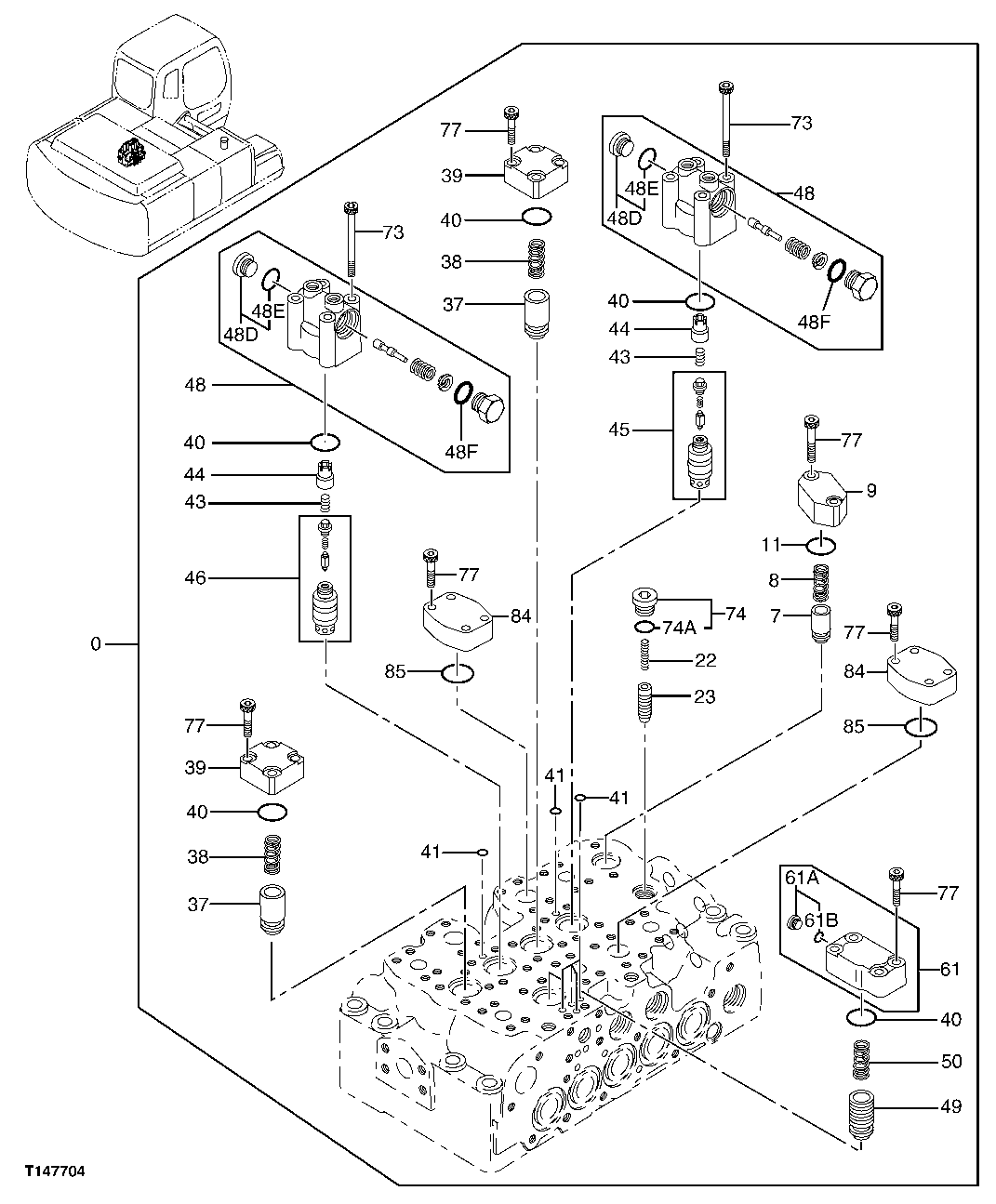

Запчасти John Deere 70CLC 317 - CONTROL VALVE 3362 Control & Load Holding Valves

0

4437242

Hyd Actuated Control Valve

(SUB FOR 4437242EX)(CONTAINS ALL PARTS ON THIS PAGE - ADDITIONAL CO MPONENTS LISTED ON FOLLOWING PAGES )

1шт.

7

0668111

Poppet

(SUB FOR AT213700)

1шт.

8

0668112

Spring

(SUB FOR AT213701)

1шт.

9

0791601

Flange

(SUB FOR TH0791601)

1шт.

11

CH17886

Packing

(SUB FOR 4509182)

1шт.

22

0668007

Spring

(SUB FOR AT213693)

1шт.

23

0791602

Poppet

(SUB FOR TH0791602)

1шт.

37

0791603

Poppet

(SUB FOR TH0791603)

2шт.

38

0791604

Spring

(SUB FOR TH0791604)

2шт.

39

0791605

Flange

(SUB FOR TH0791605)

2шт.

40

985098

O-Ring

(SUB FOR TH102528)

5шт.

41

4506406

O-Ring

(SUB FOR TH104587)

6шт.

43

0791606

Spring

(SUB FOR TH0791606)

2шт.

44

0791607

Spacer

(SUB FOR TH0791607)

2шт.

45

4454194

Poppet

(SUB FOR TH4454194)

1шт.

46

4454195

Poppet

(SUB FOR TH4454195)

1шт.

48

4454197

Flow Control Hyd. Valve

2шт.

48D

0667817

Fitting Plug

(SUB FOR AT213675)

1шт.

48F

4506418

O-Ring

(SUB FOR U46489)

1шт.

48E

M800650

Packing

1шт.

49

0791619

Poppet

(SUB FOR TH0791619)

1шт.

50

0791620

Spring

(SUB FOR TH0791620)

1шт.

61

4454199

Housing

(SUB FOR TH4454199)

1шт.

61A

0667713

Fitting Plug

(SUB FOR AT213660)

1шт.

61B

4506408

O-Ring

(SUB FOR TH101490)

1шт.

73

0791622

Bolt

(SUB FOR TH0791622)

8шт.

74

0695007

Fitting Plug

(SUB FOR AT250518)

1шт.

74A

CH11570

O-Ring

1шт.

77

0791623

Bolt

(SUB FOR TH0791623)

22шт.

84

0667726

Cap

(SUB FOR AT213668)

2шт.

85

T78313

O-Ring

2шт.
