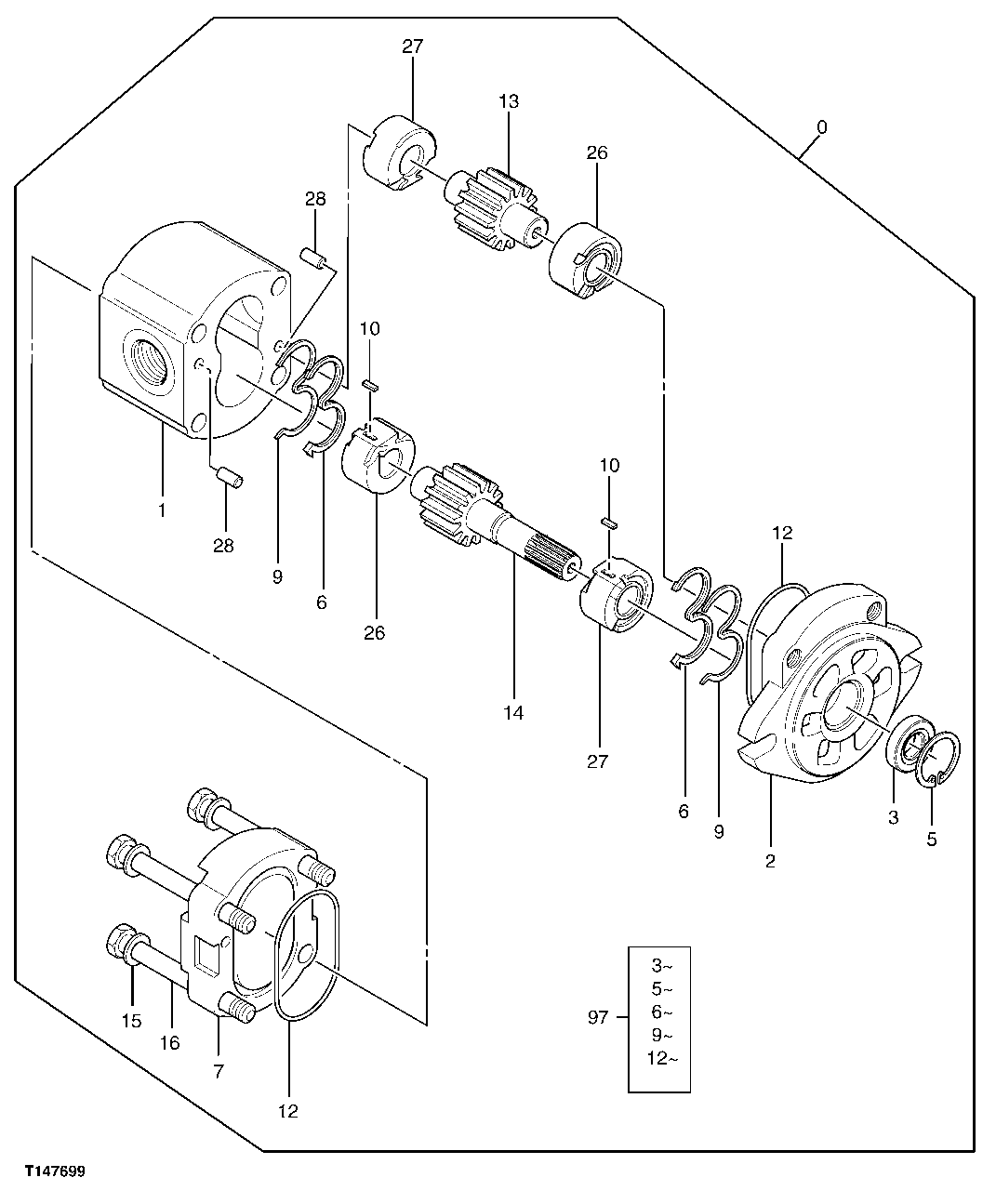

Запчасти John Deere 70CLC 314 - MAIN HYDRAULIC PUMP DRIVE PUMP 3361 Hydraulic Pump

0

4276918

Pump

(SUB FOR AT202122)

1шт.

1

Housing

1шт.

2

Flange

(SUB FOR AT203653)( 2050209 NLA)

1шт.

3

0408202

Seal

(A) (SUB FOR AT153880)

1шт.

5

Snap Ring

(A) (PART OF KIT AT153885)( AT153833 NLA)

1шт.

6

Back-Up Ring

(A) ( AT153881 NLA)

2шт.

7

Cover

( AT153832 NLA)

1шт.

9

Back-Up Ring

(A) ( AT153834 NLA)

2шт.

10

4484119

Key

(SUB FOR AT153838)

2шт.

12

4488720

O-Ring

(A) (SUB FOR 4206163, TH10 9922, 0354608 OR TH0354608)

2шт.

13

Gear

1шт.

14

Gear

1шт.

15

AT153837

Washer

10.400 X 18 X 2 mm (0. 409" X 0.709" X 0.079")

4шт.

16

19M7668

Cap Screw

M10 X 100 (SUB FOR AT15 3882 ) (SUB FOR 0408204)

4шт.

26

Bushing

2шт.

27

Bushing

2шт.

28

Pin

( AT153836 NLA)

4шт.

97

0408207

Seal Kit

(SUB FOR AT153885)(INCLU DES ALL PARTS MARKED (A))

1шт.
