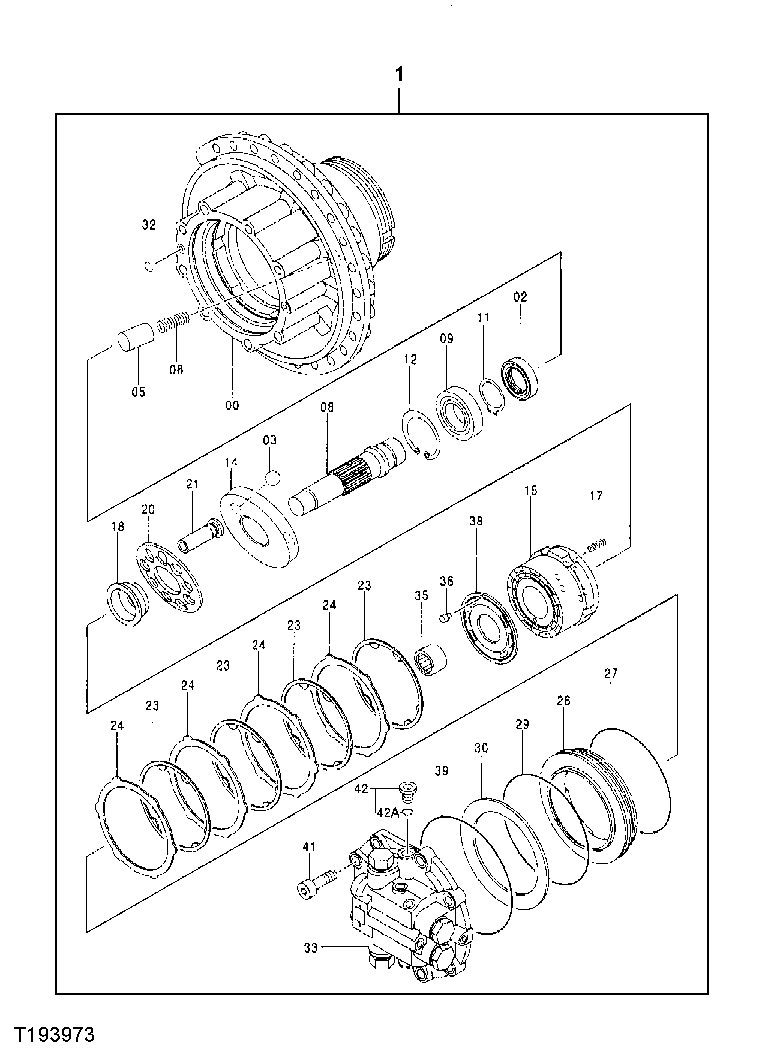

Запчасти John Deere 70CLC 20 - Propel Motor Components (071232 - ) 0260 AXLES, DIFF. & SUSP. SYS. HYD. (INCL. FWD)

0

0004501

Housing

1шт.

1

9231672

Oil

NLA, ORDER 9231672EX, USE WITH 9232359

1шт.

9231672EX

Hydraulic Motor Reman

REMAN FOR 9231672, USE WITH 9232359

1шт.

2

4396696

Seal

1шт.

3

4428919

Ball

SUB FOR 4355728

2шт.

5

4706126

Piston

SUB FOR 4462038

1шт.

6

4475147

Compression Spring

1шт.

8

2047884

Universal Driveshaft

1шт.

9

4396755

Cylindrical Roller Bearing

1шт.

11

40M7166

Snap Ring

1шт.

12

40M1873

Snap Ring

1шт.

14

3106087

Plate

SUB FOR 3095397

1шт.

15

2052854

Rotor

SUB FOR 2047885

1шт.

17

4468258

Compression Spring

6шт.

18

4627480

Bushing

SUB FOR 4461908 OR 464 2740, USE WITH 3094362

1шт.

20

3118194

Retainer

SUB FOR 3103491 OR 3094 362, ALSO ORDER 4642740

1шт.

21

8107650

Piston

SUB FOR 8092512 OR 8100811

9шт.

23

3096779

Plate

4шт.

24

3094376

Plate

4шт.

26

3094377

Piston

1шт.

27

4468248

O-Ring

1шт.

29

4468249

O-Ring

1шт.

30

4468250

Disk Spring

1шт.

32

T111819

O-Ring

SUB FOR 4506415

2шт.

33

9264410

Valve

Propel Motor Brake Valve SUB FOR 9213241 OR 9229962

1шт.

35

4472355

Needle Bearing

1шт.

36

4461910

Pin

1шт.

38

3103258

Plate

SUB FOR 3098526 OR 3103022, ALS O ORDER 2052854 AND (9) 8107650

1шт.

39

4468244

O-Ring

1шт.

41

19M9153

Screw

M20 X 55 SUB FOR M342056

8шт.

42

9134112

Fitting Plug

1шт.

42A

4506418

O-Ring

1шт.
