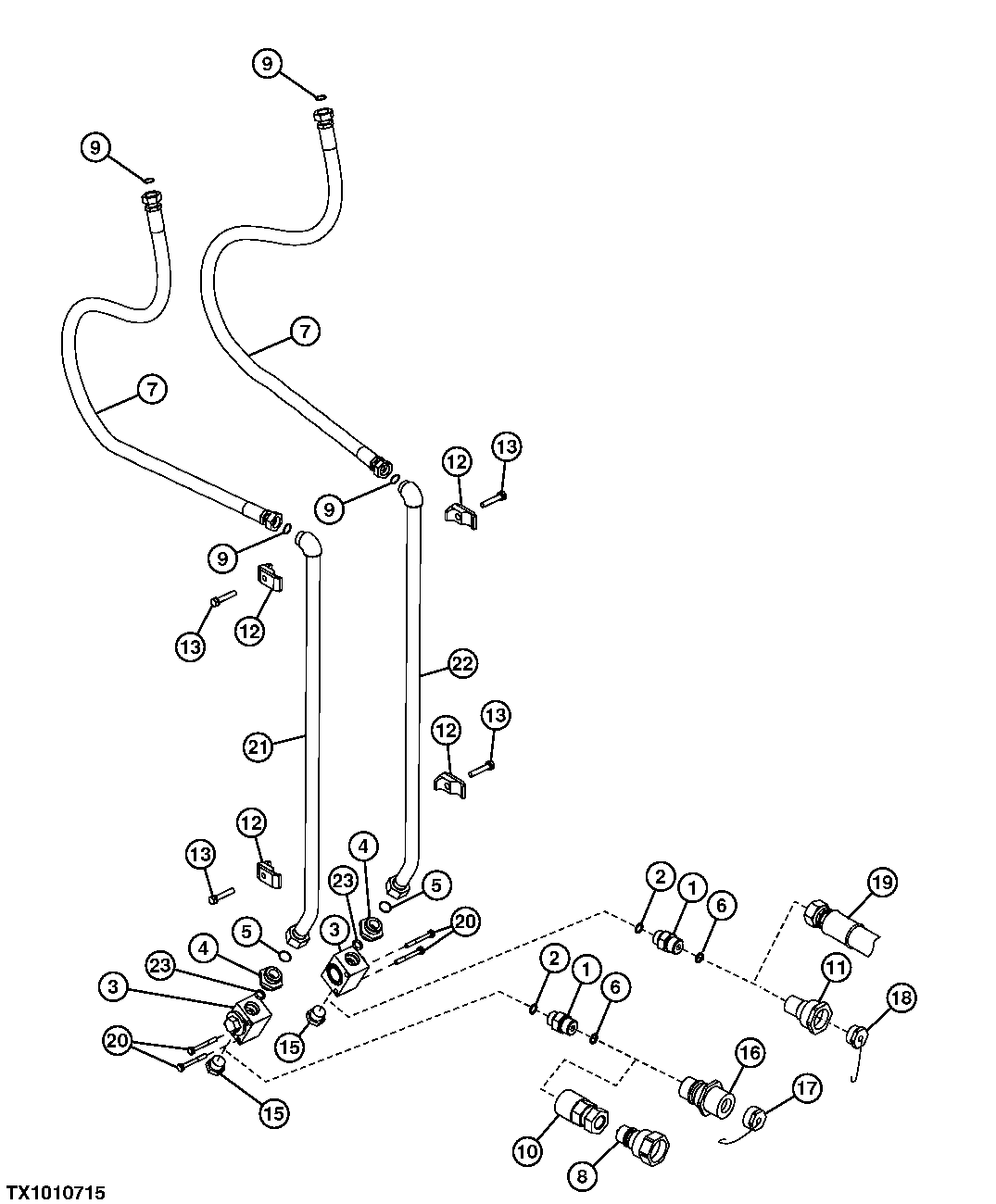

Запчасти John Deere 70CLC 305 - ARM AUXILIARY HOSES AND LINES (FACTORY INSTALLED) 3360 HYDRAULIC SYSTEM

1

4189535

Adapter Fitting

(1" ORFS)

2шт.

AT318016

Adapter Fitting

(3/4" ORFS) (SUB FOR 4189537)

2шт.

AT301151

Fitting

(1" SAE, MALE)

2шт.

X12-16F4OMXS

Adapter Fitting

(3/4" 37 DEGREE)

2шт.

X12-16F4OMXS

Adapter Fitting

(1" 37 DEGREE)

2шт.

AT305641

Fitting

(3/4" SAE, MALE)

2шт.

2

TH101926

O-Ring

2шт.

3

4447675

Flow Control Hyd. Valve

(SUB FOR 4600164)

2шт.

4

A853180

Adapter Fitting

2шт.

5

T78612

O-Ring

(SUB FOR 4187329)

2шт.

6

R29936

O-Ring

2шт.

7

4452263

Hydraulic Hose

(USE WITH 3.1 M STANDARD ARM)

2шт.

4397354

Hydraulic Hose

(USE WITH 3.75 M LONG ARM) Fabricate

2шт.

8

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

2шт.

9

T76938

O-Ring

(SUB FOR 4187328)

4шт.

10

AT117364

Hydr. Quick Coupler Socket

(-12) 1 1/16 SAE O-RIN G Female Quick Coupler

2шт.

AT120499

Coupling

(-16) 1 5/16 SAE O-RIN G Female Quick Coupler

2шт.

11

AT186111

Quick Coupler

(1" FEMALE) Screw Together Coupler

1шт.

12

4190127

Clamp

Pipe

4шт.

13

19M8348

Cap Screw

M12 X 65 (SUB FOR J011265)

4шт.

15

A885008

Pipe Plug

(SUB FOR THA885008)

2шт.

16

AT186112

Quick Coupler

(1" MALE) (SCREW TOGETHER COUPLER)

1шт.

17

AT186113

Cap

1шт.

18

AT186114

Plug

1шт.

19

X1JS78-20-16

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J978-20-16

Elbow Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

20

19M8197

Cap Screw

M10 X 85 (SUB FOR J901085 OR J271085)

4шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR J222010)

4шт.

21

8085981J

Oil Line

1шт.

22

8085973J

Oil Line

1шт.

23

TH101926

O-Ring

2шт.
