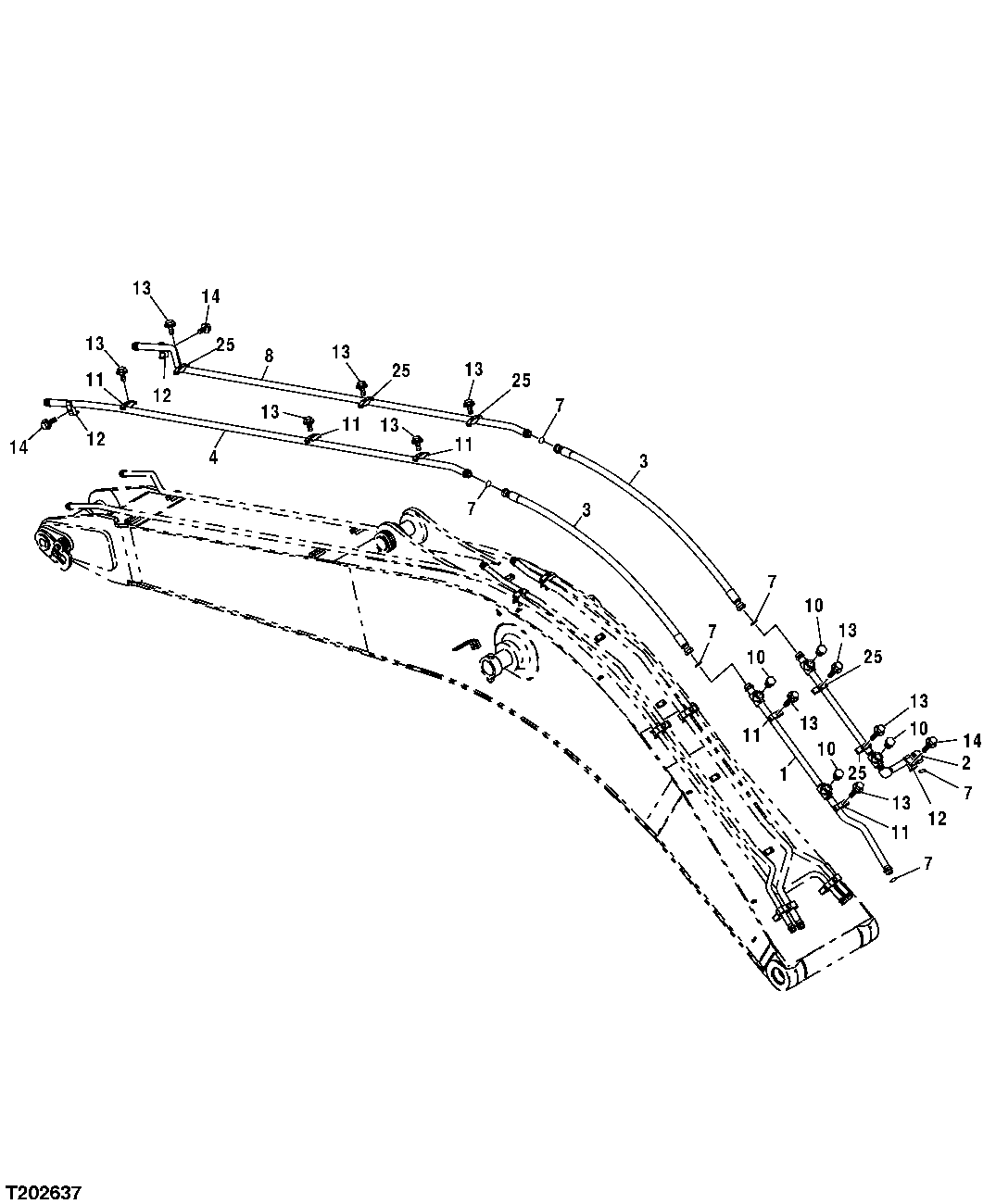

Запчасти John Deere 70CLC 304 - BOOM AUXILIARY HOSES AND LINES (FACTORY INSTALLED) 3360 HYDRAULIC SYSTEM

1

8082662J

Oil Line

1шт.

2

8082663J

Oil Line

1шт.

3

4286876

Hydraulic Hose

2шт.

4

DH800123J

Oil Line

1шт.

7

4187328

O-Ring

6шт.

8

DH800124J

Oil Line

1шт.

10

A885008

Pipe Plug

(SUB FOR THA885008)

4шт.

11

4153488

Clamp

5шт.

12

4190127

Clamp

3шт.

13

19M8348

Cap Screw

M12 X 65 (SUB FOR J011265)

10шт.

14

19M8088

Cap Screw

M12 X 75 (SUB FOR J011275)

3шт.

25

4189860

Clamp

5шт.
