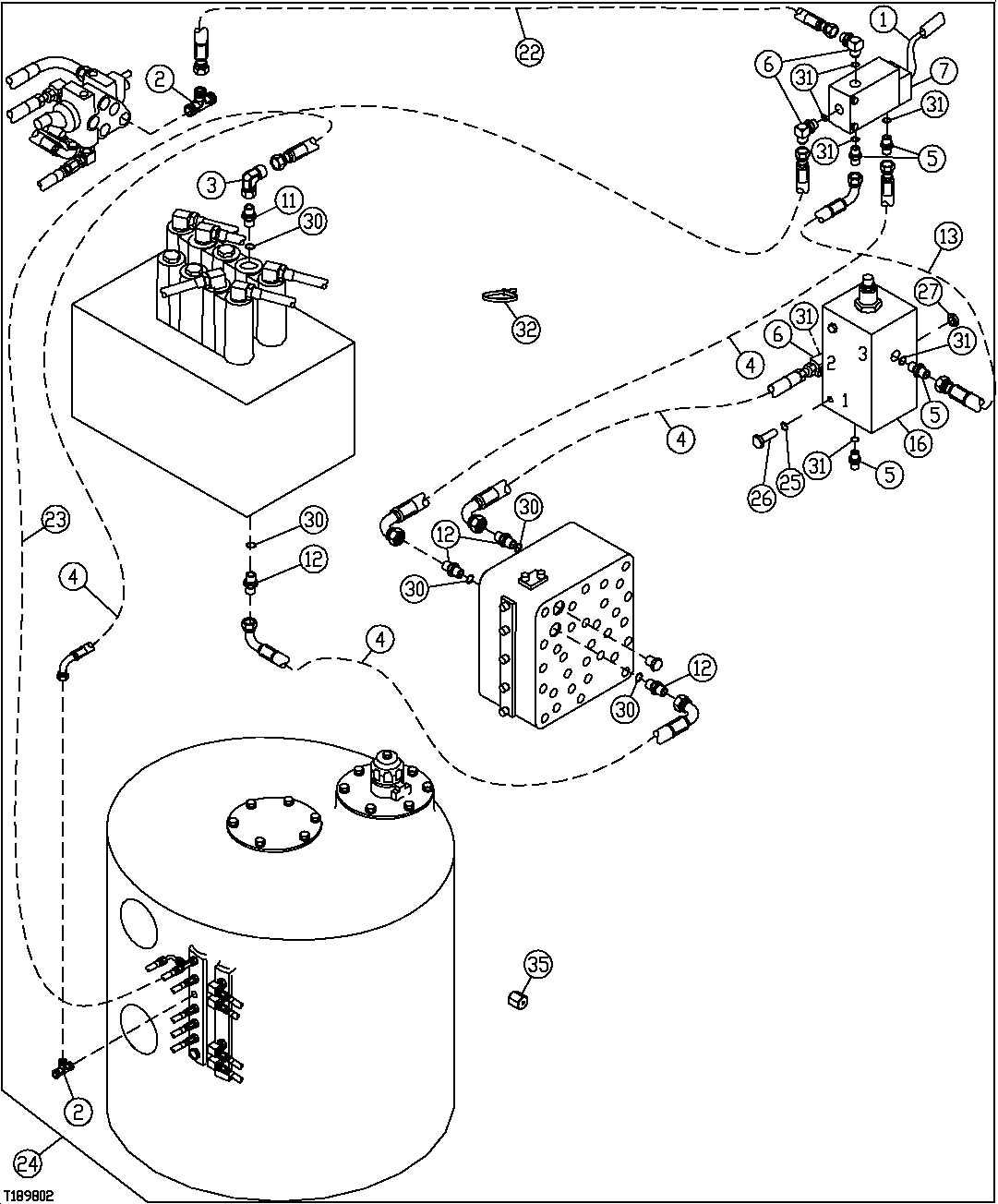

Запчасти John Deere 70CLC 294 - AUXILIARY SOLENOID AND FLOW CONTROL VALVE KIT (1-WAY) 3360 HYDRAULIC SYSTEM

1

AT191297

Wiring Harness

1шт.

2

AT36921

Tee Fitting

3шт.

3

AE24616

Elbow Fitting

1шт.

4

AT71732

Hydraulic Hose

4шт.

5

R27212

Fitting

4шт.

6

AT35121

Elbow Fitting

4шт.

7

AT306723

Elec.Proportional Valve

Solenoid (SUB FOR AT116486 AND AT140041)

1шт.

Electrical Coil

( AT140041 NLA)

1шт.

11

AT130053

Adapter Fitting

1шт.

12

4200466

Adapter Fitting

4шт.

13

AE42718

Hydraulic Hose

1шт.

16

AT186623

Hydraulic Pressure Valve

1шт.

22

AT130684

Hydraulic Hose

9/16" X 2520 mm (99-1/4") X 9/16"

1шт.

23

AT71082

Hydraulic Hose

9/16" X 711 mm (28") X 9/16"

1шт.

24

Field Installation Kit

(WHOLEGOODS) (ALSO ORDER T188662 ( AT186622 NLA))

1шт.

25

24M7139

Washer

6.400 X 18 X 1.600 mm (NOT ILLUSTRATED)

4шт.

26

19M7529

Cap Screw

M6 X 55

4шт.

27

14M7272

Nut

M6

4шт.

30

CH11570

O-Ring

5шт.

31

R26448

O-Ring

7шт.

32

R44302

Tie Band

4шт.

33

AH75160

Elbow Fitting

Not Illustrated

2шт.

35

R31147

Fitting

1шт.
