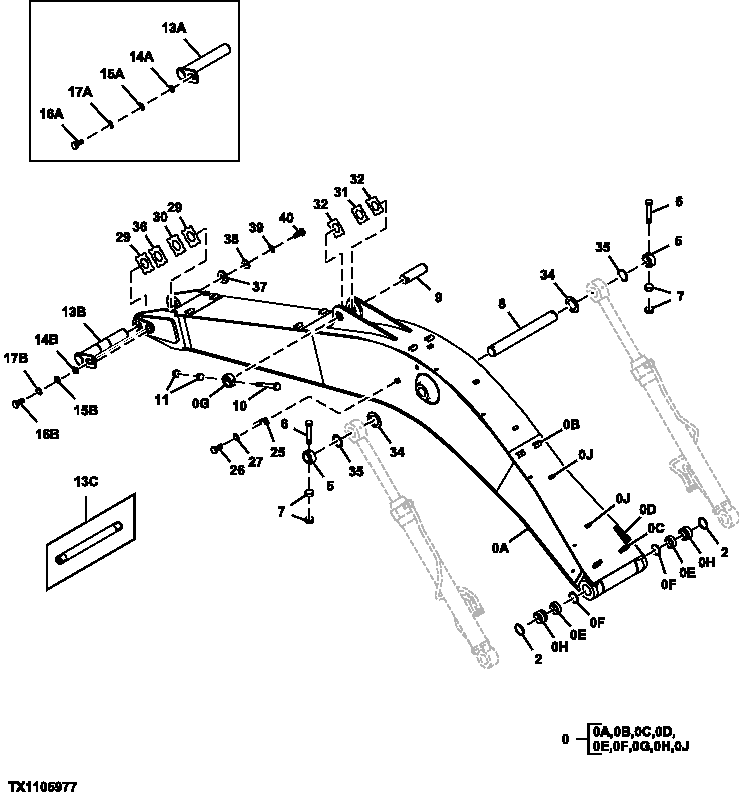

Запчасти John Deere 70CLC 281 - BOOM 3344 BOOM

0

7038670

Excavator Boom

(SUB FOR TH7038670)

1шт.

0A

Excavator Boom

TH5007002, 5007002 NLA)

1шт.

0B

AP33691

Support

8шт.

0C

P64776

Support

2шт.

0D

T115120

Strap

1шт.

0E

4364501

Bushing

SUB FOR AT217799

2шт.

0F

TH102411

Seal

2шт.

0G

4434956

Stop

SUB FOR TH4434956

1шт.

0H

4443885

Bushing

SUB FOR TH4443885

2шт.

0J

9738322

Support

2шт.

2

TH102411

Seal

2шт.

5

TH103198

Bushing

2шт.

6

4435127

Pin Fastener

(SUB FOR TH4435127)

2шт.

7

14M7277

Nut

M20

4шт.

8

3090165

Pin Fastener

(SUB FOR TH3090165)

1шт.

9

3088751

Pin

(SUB FOR TH3088751)

1шт.

10

4435128

Pin Fastener

(SUB FOR TH4435128)

1шт.

11

R114125

Nut

(SUB FOR THJ950022 OR J950022)

2шт.

13A

Pin Fastener

( TH8079425 NLA) Units Built Befo re December 2003 (SUB 8094392, 460 8853, 4611642, T116332, (4) J25721 8, 4615565, 4611642 AND (3) J92185 0)

1шт.

13B

8094392

Pin

Units Built December 2003 and After

1шт.

4611731

Stop

Units Built December 2003 and After

1шт.

13C

AT361199

Pin

Expander Pin Option

1шт.

T248611

Sleeve

1шт.

14A

4608853

Washer

Units Built Before Decemb er 2003 (SUB FOR 4424425)

1шт.

14B

4611688

Block Clamp

Units Built December 2003 and After

1шт.

15A

4615566

Washer

Units Built Before Decemb er 2003 (SUB FOR 4426128)

1шт.

15B

4611733

Plate

Units Built December 2003 and After

1шт.

16A

T116332

Bolt

Units Built Before Decemb er 2003 (SUB FOR J921840)

1шт.

16B

J922245

Bolt

Units Built December 2003 and After

1шт.

17A

J257218

Lock Washer

Units Built Before December 2003

1шт.

17B

J257222

Lock Washer

Units Built December 2003 and After

1шт.

25

4224631

Angle

(SUB FOR TH111685)

1шт.

26

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

27

12H317

Lock Washer

9/16"

1шт.

29

4445638

Thrust Washer

(SUB FOR TH4445638)

2шт.

30

4445639

Thrust Washer

(SUB FOR TH4445639)

1шт.

31

4444285

Thrust Washer

(SUB FOR TH4444285)

1шт.

32

4470743

Thrust Washer

(SUB FOR 4444284)

2шт.

34

4450014

Plate

(SUB FOR TH4450014)

2шт.

35

4445640

Plate

(SUB FOR TH4445640)

2шт.

36

4460372

Thrust Washer

(SUB FOR TH4460372)

1шт.

37

4615565

Spacer

Units Built December 2003 and After

1шт.

38

4611642

Washer

Units Built December 2003 and After

1шт.

39

J257218

Lock Washer

Units Built December 2003 and After

1шт.

40

J921850

Bolt

Units Built December 2003 and After

1шт.
