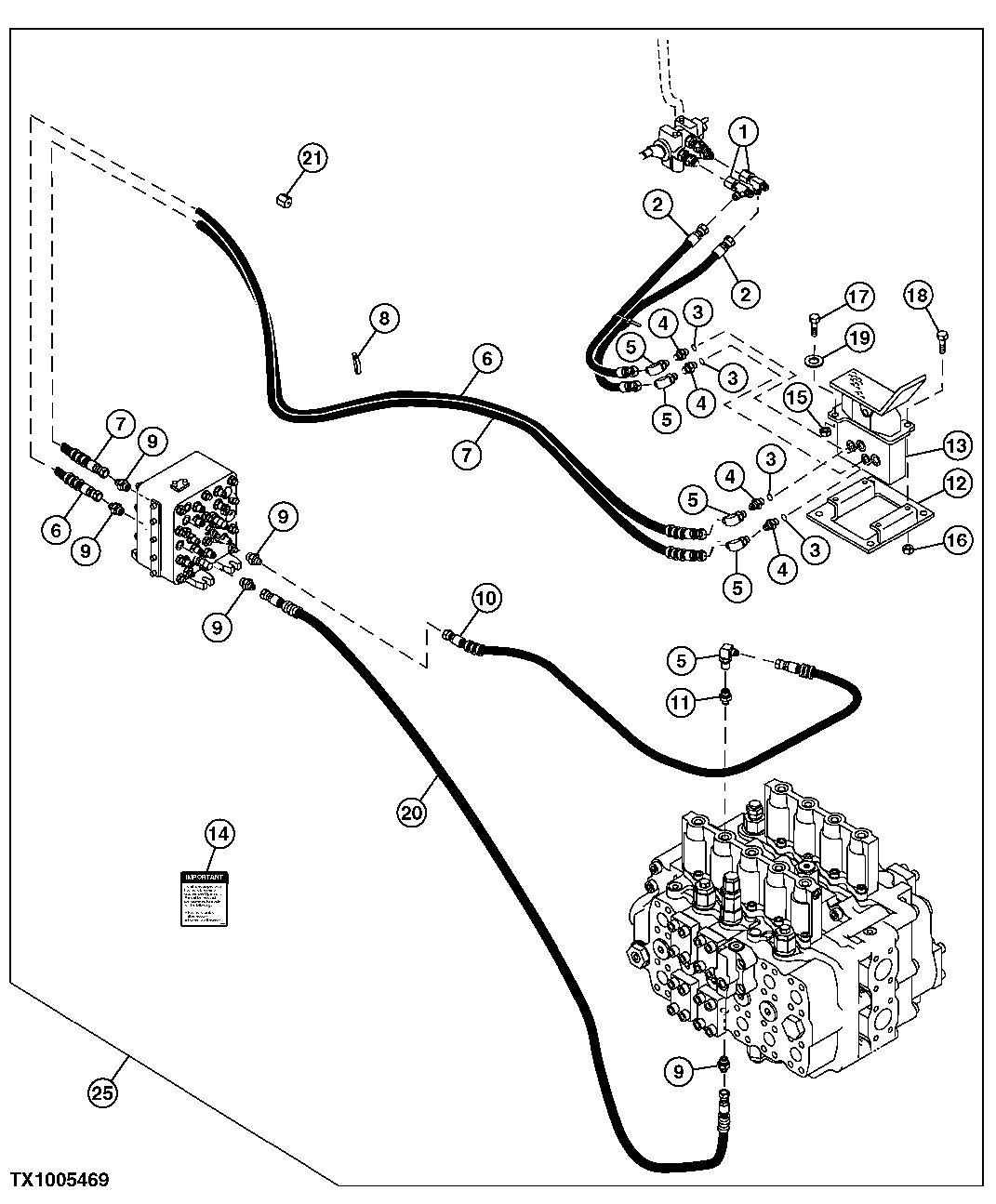

Запчасти John Deere 70CLC 273 - AUXILIARY 2-WAY HYDRAULIC FOOT PEDAL CONTROL 3315 CONTROLS LINKAGE

0

Field Installation Kit

AUXILIARY FOOT PEDAL C ONTROL ( AT195684 NLA)

1шт.

1

AT36921

Tee Fitting

2шт.

2

AH108250

Hose

9/16" X 787 mm (31") X 9/16"

2шт.

3

R26448

O-Ring

4шт.

4

R27212

Fitting

4шт.

5

AE24616

Elbow Fitting

5шт.

6

AE42067

Hydraulic Hose

9/16" X 3699 mm (145-3/4") X 9/16"

1шт.

7

AE42067

Hydraulic Hose

9/16" X 3699 mm (145-3/4") X 9/16"

1шт.

8

H77698

Tie Band

5шт.

9

4200466

Adapter Fitting

(SUB FOR TH108320)

5шт.

CH11570

O-Ring

5шт.

10

AT68901

Hydraulic Hose

9/16" X 964 mm (38") X 9/16"

2шт.

11

4202422

Adapter Fitting

(SUB FOR TH108440)

1шт.

CH11570

O-Ring

1шт.

12

AT115535

Support

1шт.

13

AT152120

Valve

1шт.

14

T149434

Label

(ENGLISH)

1шт.

T222992

Label

(FRENCH)

1шт.

T222993

Label

(SPANISH)

1шт.

15

14M7296

Flange Nut

M10

1шт.

16

14M7298

Flange Nut

M8

4шт.

17

19M7784

Screw

M10 X 20

2шт.

18

19M7866

Screw

M8 X 20

4шт.

19

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

20

AR90081

Hydraulic Hose

1шт.

21

R31147

Fitting

(TANK PORT DRAIN LINE)

1шт.
