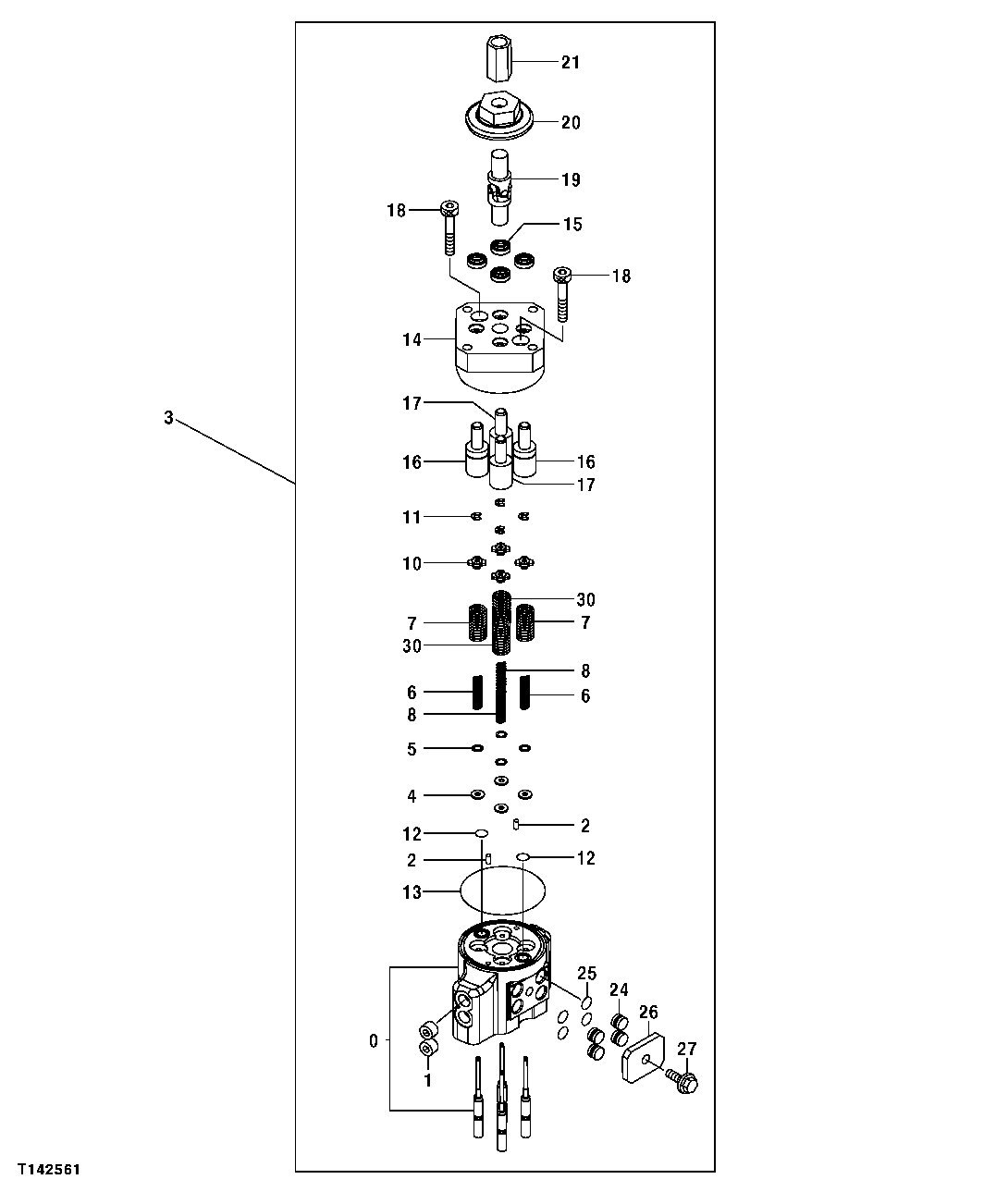

Запчасти John Deere 70CLC 268 - PILOT CONTROLLER VALVE COMPONENTS (DIG AND SWING) (SN -071384) 3315 CONTROLS LINKAGE

0

Case

( TH8081319 NOT AVAILABLE)

1шт.

1

9420111

PART MISSING IN WISE

(SUB FOR 94-2011)

2шт.

2

J400408

Pin

2шт.

3

9195304

Hydr./Pilot Control Valve

(SUB 9239583 ) (ALSO ORDER 46099 56, (3) 19M7139 AND (3) 24M7055)

1шт.

4

4410898

Spacer

4шт.

5

4173208

Shim

12шт.

6

4425414

Spring

2шт.

7

4421771

Spring

2шт.

8

4429120

Spring

2шт.

10

4429119

Guide

4шт.

11

4437333

Snap Ring

4шт.

12

4431914

O-Ring

2шт.

13

4431915

O-Ring

1шт.

14

Manifold

( 2044350 NLA) Manifold Has One Punc h Mark On Top Face (SUB 9234284, (4) 4477852, (2) 9759158 AND (2) 9759157)

1шт.

9234284

Manifold

Manifold Has Two Punch Marks On Top Face

1шт.

15

4447050

Seal

(USE WITH 2044350) (SUB 9234284, (4) 4477852, (2) 9759158 AND (2) 9759157)

4шт.

4477852

Seal

(USE WITH 9234284)

4шт.

16

Piston

(USE WITH 2044350) ( 9754825 NLA) (SUB 92342 84, (4) 4477852, (2) 9759158 AND (2) 9759157)

2шт.

9759157

Piston

(USE WITH 9234284)

2шт.

17

Piston

(USE WITH 2044350) ( 9754826 NLA) (SUB 92342 84, (4) 4477852, (2) 9759158 AND (2) 9759157)

2шт.

9759158

Piston

(USE WITH 9234284)

2шт.

18

19M8923

Screw

M8 X 45 (SUB FOR J780845)

2шт.

19

4335060

Universal Joint

1шт.

20

4639115

Cam

(SUB FOR 4437106)

1шт.

21

4182067

Jointer

1шт.

24

4442323

Pipe Plug

4шт.

25

CH11560

Packing

4шт.

26

4442339

Plate

1шт.

27

19M7932

Cap Screw

M8 X 16

1шт.

30

4446960

Spring

2шт.
