Запчасти John Deere 70CLC 247 - HEAVY DUTY HIGH CAPACITY BUCKET 3302 BUCKET WITH TEETH

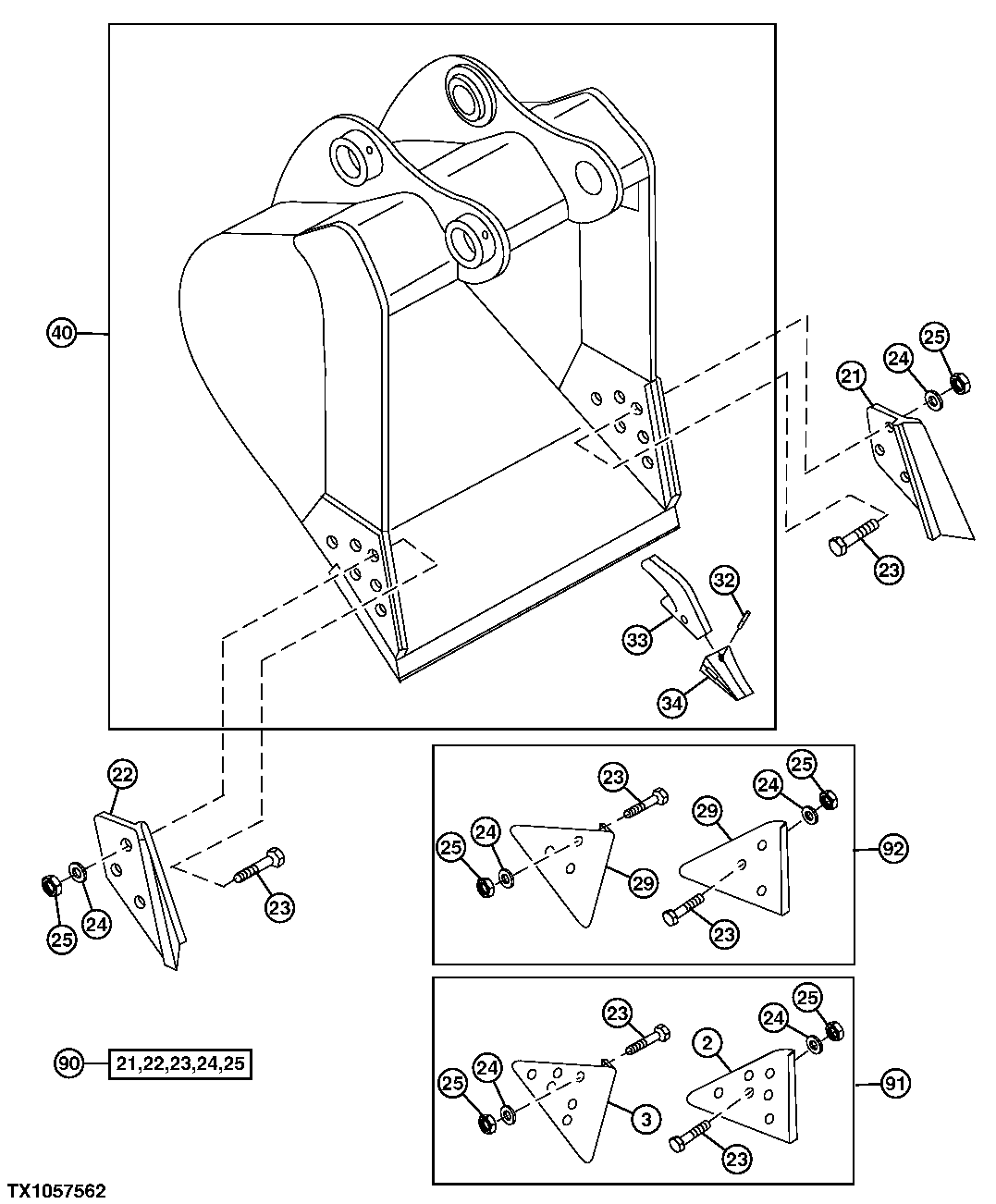

Схема запчастей John Deere 70CLC - 247 - HEAVY DUTY HIGH CAPACITY BUCKET 3302 BUCKET WITH TEETH

Артикул

Название

Примечание

Количество

2

T1156A

End Bit

1шт.

3

T1157A

End Bit

1шт.

21

CE17748L3

End Bit

1шт.

22

CE17748R3

End Bit

1шт.

23

09H1772

Bolt

7/8" X 3-1/2"

ARшт.

24

12H245

Lock Washer

7/8"

ARшт.

25

14H1077

Nut

7/8"

ARшт.

29

TPDE31329

Shroud

Wear

2шт.

32

TP400HD

Pin

ARшт.

33

T802X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.

40

AT339182

Excavator Bucket

24 INCH - .75 CUBIC YARD 3 Teeth SUB FOR AT332709

1шт.

AT339184

Excavator Bucket

30 INCH - 1.02 CUBIC YARD 4 Teeth SUB FOR AT332710

1шт.

AT339189

Excavator Bucket

36 INCH - 1.30 CUBIC YARD 4 Teeth SUB FOR AT332711

1шт.

AT339191

Excavator Bucket

42 INCH - 1.59 CUBIC YARD 5 Teeth SUB FOR AT332712

1шт.

90

AT342511

Kit

Side Cutter Kit

1шт.

91

AT342513

Kit

Edge Protector 6 Inch

1шт.

92

AT342512

Kit

Edge Protector 3 Inch

1шт.

Выбрано товаров: 18
