Запчасти John Deere 70CLC 243 - HEAVY DUTY HIGH CAPACITY BUCKET (48 INCH) (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

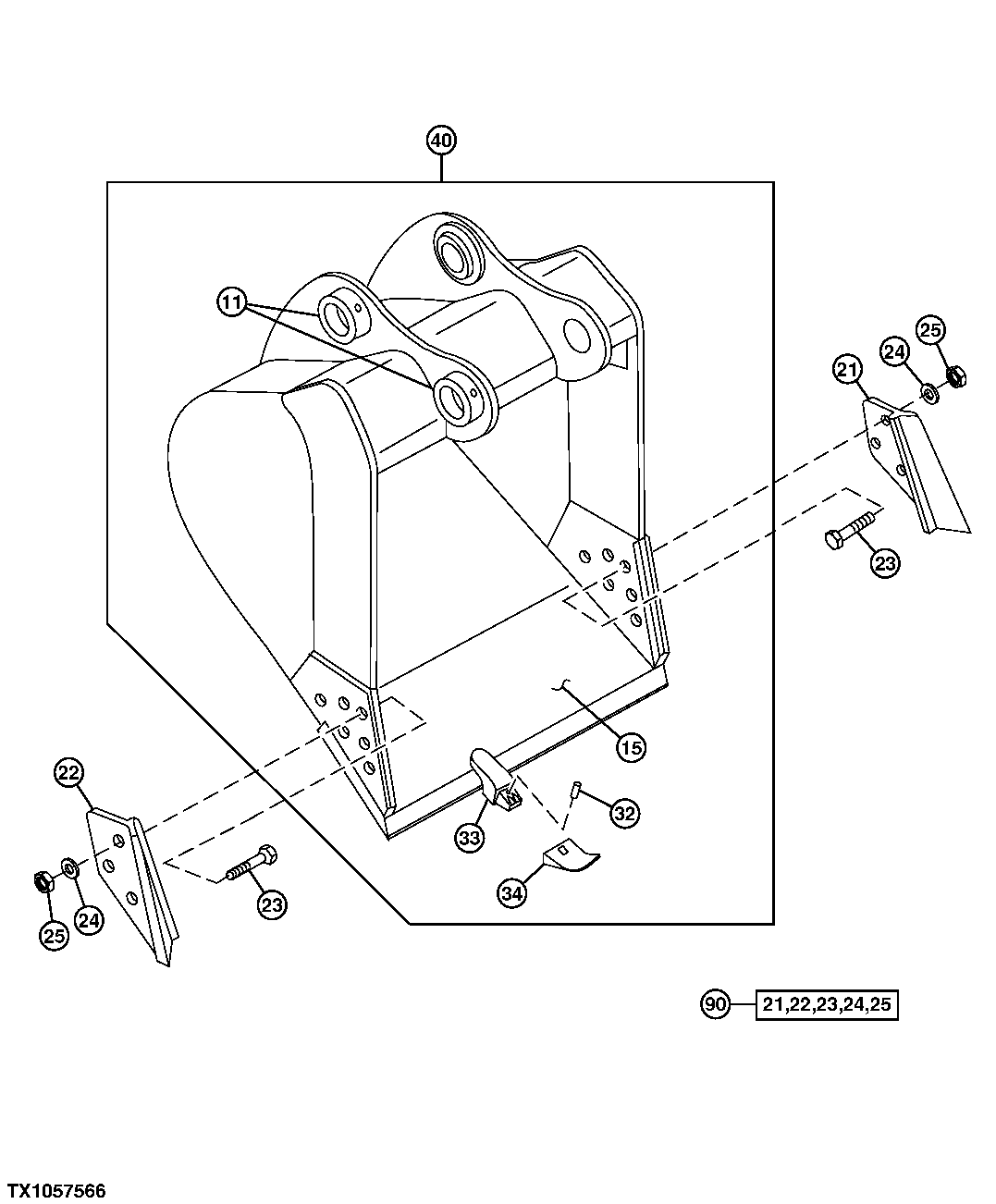

Схема запчастей John Deere 70CLC - 243 - HEAVY DUTY HIGH CAPACITY BUCKET (48 INCH) (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

Артикул

Название

Примечание

Количество

11

TH102409

Bushing

(SUB FOR AT185645)

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

21

Cutting Edge

(SUB AT131085)

1шт.

22

Cutting Edge

(SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

32

TP400HD

Pin

1шт.

33

T802X400

Bucket Tooth Adapter

1шт.

34

TF400

Tooth

1шт.

40

Excavator Bucket

(48 INCH/2.03 CUBIC YARD) ( AT 332713 NLA) Requires 6 Teeth (S UB FOR AT185645 ) (SUB AT339193 )

1шт.

90

End Bit

( AT131085 NLA) Side Cutter Kit

1шт.

Выбрано товаров: 12
