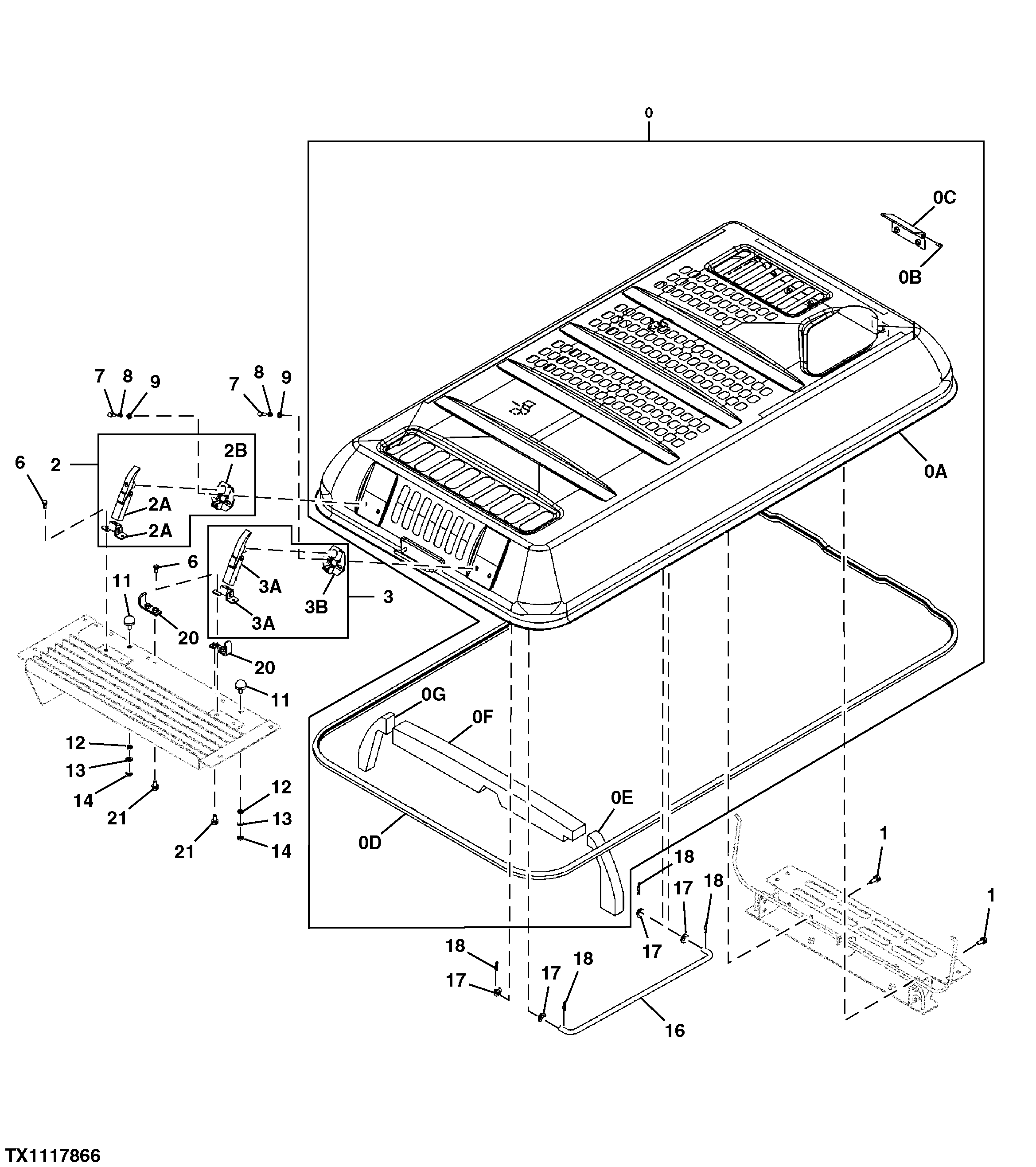

Запчасти John Deere 70CLC 230 - ENGINE COVER 1910 HOOD OR ENGINE ENCLOSURE

0

Cover

Stamped Engine Hood Cover Can Tell If S tamped Or Welded By Looking At Inside Co rner Of Cover ( 5008107, 5008107J NLA)

1шт.

Cover

Fabricated Engine Hood Cover Can Tel l If Stamped Or Welded By Looking At Inside Corner Of Cover DH900532 NLA

1шт.

0A

Cover

Stamped Engine Hood Cover NLA

1шт.

DH500088

Cover

Fabricated Engine Hood Cover A LSO ORDER DH300163, DH300164, D H400733, DH400734 AND DH400735

1шт.

0B

4390074

Hinge

2шт.

0C

Nut

4шт.

0D

4387043

Isolator

USE WITH 5008107J; SUB FOR 4278601

1шт.

DH300163

Isolator

USE WITH DH500088; ALSO ORDER DH300164

1шт.

DH300164

Isolator

USE WITH DH500088; ALSO ORDER DH300163

1шт.

0E

DH400735

Isolator

1шт.

0F

DH400734

Isolator

1шт.

0G

DH400733

Isolator

1шт.

1

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

2

4361455

Catch

SUB FOR TH111036, TH108769

1шт.

AT194969

Key

SUB FOR AT147803

1шт.

2A

3040904

Catch

SUB FOR AT126162

1шт.

2B

3021131

Anchor

SUB FOR TH102247

1шт.

3

4361455

Catch

SUB FOR TH111036

1шт.

AT194969

Key

1шт.

3A

3040904

Catch

1шт.

3B

3021131

Anchor

1шт.

6

19M7881

Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

7

21M7397

Screw

M8 X 25

4шт.

8

Washer

12M7065 NLA

4шт.

9

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

4шт.

11

4294508

Bumper

2шт.

12

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR A590110

2шт.

13

12M7066

Lock Washer

10 mm

2шт.

14

14M7274

Nut

M10

2шт.

16

4278783

Bracket

1шт.

17

24M7053

Washer

17 X 30 X 3 mm

4шт.

18

M40461

Spring Locking Pin

4шт.

20

AT307244

Bracket

SUB FOR 9743889

2шт.

21

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.
