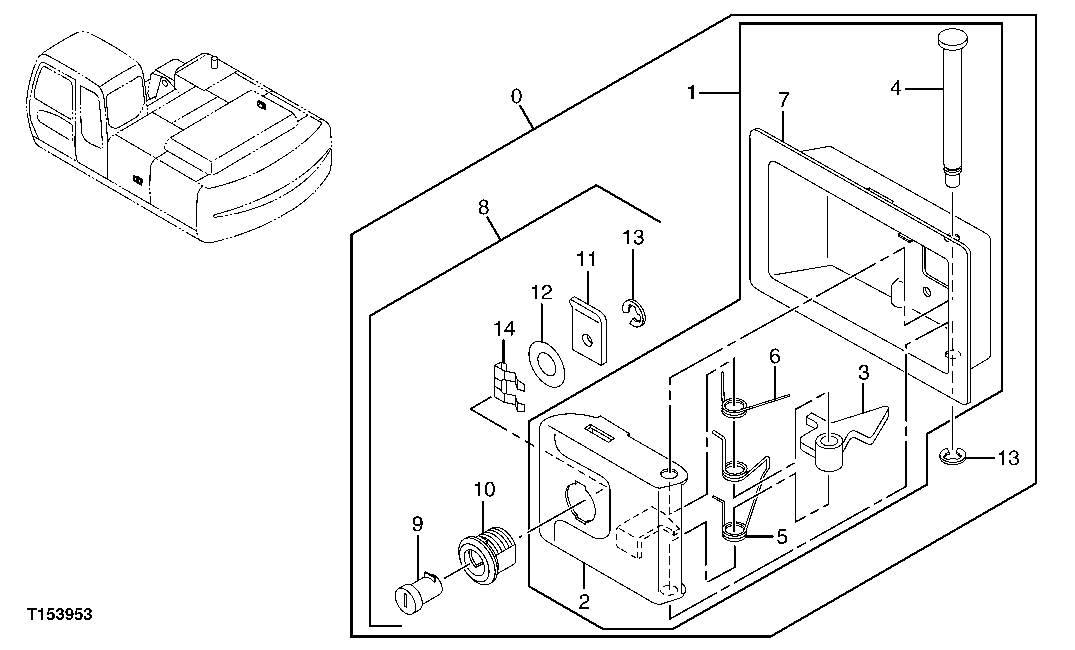

Запчасти John Deere 70CLC 228 - DOOR LOCK ASSEMBLY 1910 HOOD OR ENGINE ENCLOSURE

0

4409446

Lock

Weld In (SUB FOR TH4409446)

2шт.

DH400030

Latch

Rivet In

1шт.

1

Lock

(TH4409447 NLA)

2шт.

2

Latch

(TH4461344 NLA)

2шт.

3

Lever

(TH4461345 NLA)

2шт.

4

Shaft

(TH4461346 NLA)

2шт.

5

Spring

(TH4461347 NLA)

2шт.

6

Spring

(TH4461348 NLA)

2шт.

7

Lock

(TH4461343 NLA)

2шт.

8

4409396

Lock

(SUB FOR TH4409396)

2шт.

9

Key

(TH4461338 NLA)

2шт.

10

Case

(TH4461339 NLA)

2шт.

11

Plate

(TH4461340 NLA)

2шт.

12

Washer

(TH4461341 NLA)

4шт.

13

Clip

(TH4461347 NLA)

4шт.

14

Clip

(TH4461342 NLA)

2шт.
