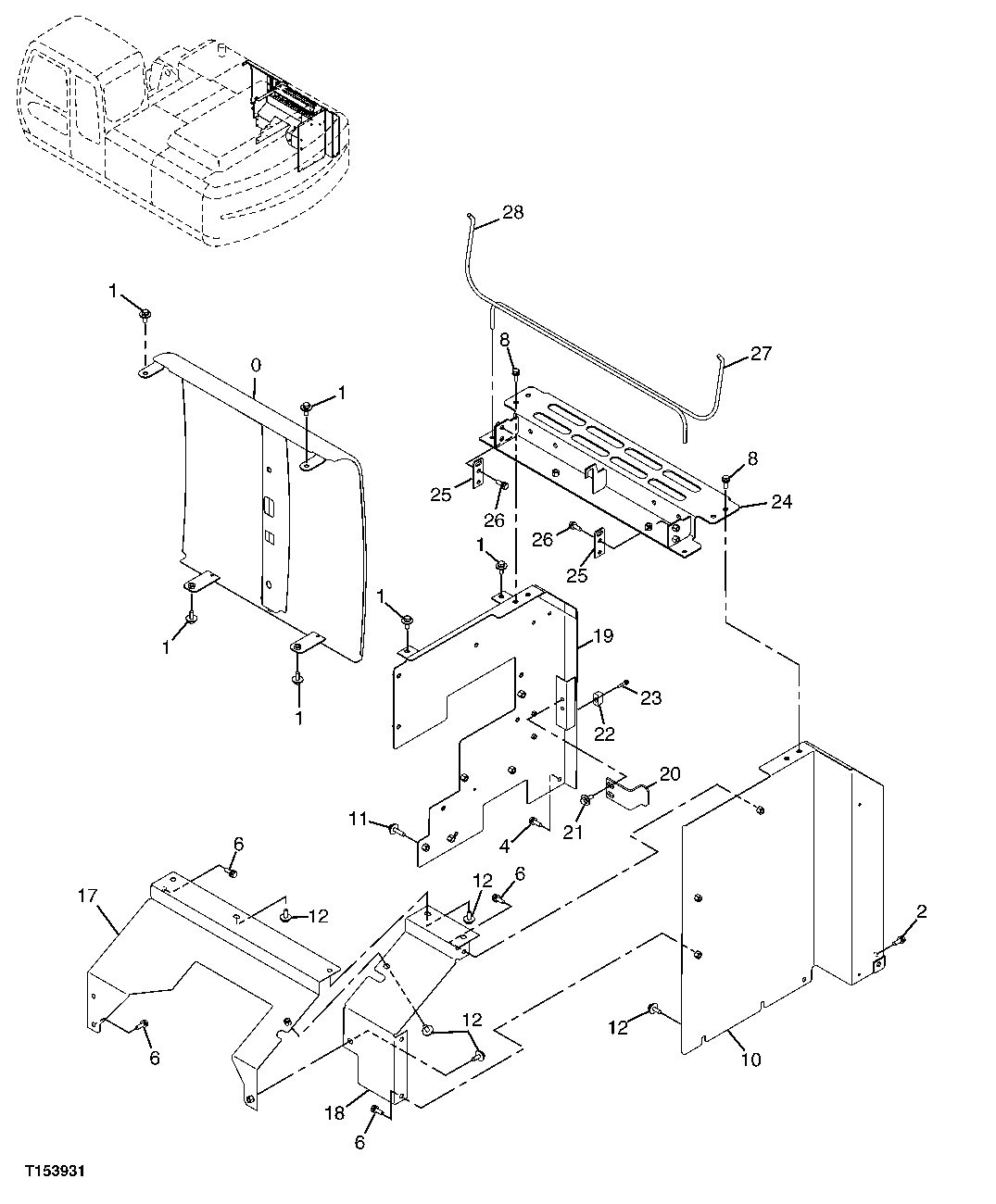

Запчасти John Deere 70CLC 226 - SIDE COVER 1910 HOOD OR ENGINE ENCLOSURE

0

DH700073J

Cover

(INCLUDES DH600009J AND DH400422)

1шт.

Cover

( DH600009J NLA) ( 6019197 NA)

1шт.

DH400422

Isolator

1шт.

1

19M7662

Cap Screw

M10 X 30

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

24M7346

Washer

11 X 20 X 2 mm

6шт.

2

19M7662

Cap Screw

M10 X 30

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

4

19M7662

Cap Screw

M10 X 30

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

6

19M7662

Cap Screw

M10 X 30

8шт.

12M7066

Lock Washer

10 mm

8шт.

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

8

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

10

7041400

Cover

1шт.

11

19M7572

Cap Screw

M10 X 45 (SUB FOR J031045 ) ( USE WITH 12M7066 AND 24M7296)

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

1шт.

12

19M7662

Cap Screw

M10 X 30

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

24M7346

Washer

11 X 20 X 2 mm

7шт.

17

7041485

Cover

(EXHAUST MUFFLER)

1шт.

DH700025

Cover

(EXHAUST MUFFLER)

1шт.

18

3093888

Cover

1шт.

DH800032

Cover

1шт.

19

6020595

Cover

1шт.

20

4431357

Stop

1шт.

21

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

22

4609950

Stop

(SUB FOR 4424157)

1шт.

23

19M7177

Cap Screw

M6 X 35

1шт.

12M7054

Lock Washer

19 mm

1шт.

24M7012

Washer

6.400 X 24 X 1.200 mm

1шт.

24

7040331

Cover

1шт.

DH800035

Cover

1шт.

25

DH400498

Bracket

( 4261669 NOT USED FOR THIS APPLICATION)

1шт.

26

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

27

3052306

Bracket

1шт.

DH300076

Bracket

1шт.

28

3052305

Bracket

1шт.

DH300075

Bracket

1шт.
