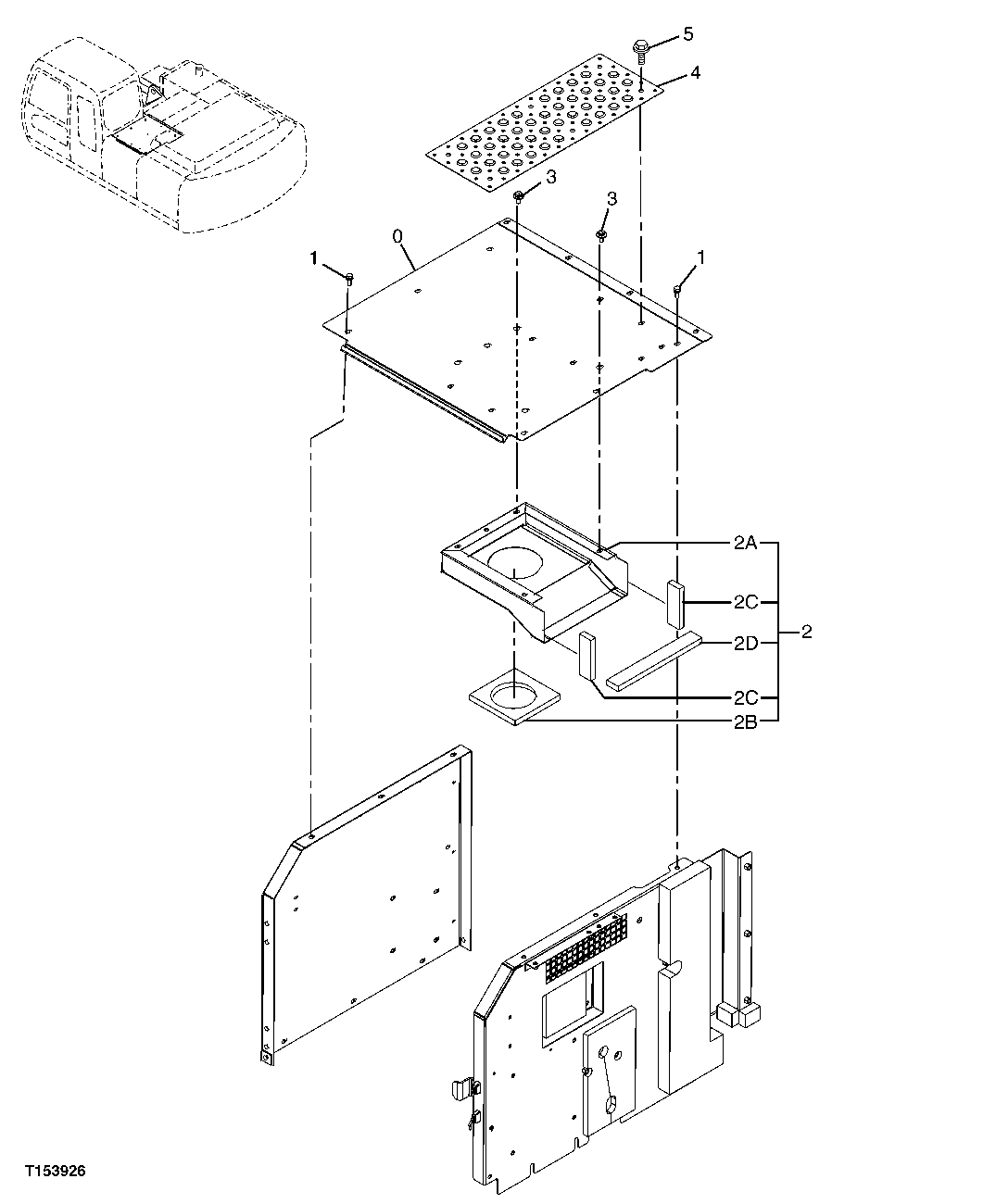

Запчасти John Deere 70CLC 222 - COVER 1910 HOOD OR ENGINE ENCLOSURE

0

7041434

Cover

1шт.

DH700041

Cover

1шт.

1

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

2

8086233

Cover

1шт.

2A

DH700045

Cover

(USE WITH 4288047)

1шт.

DH700114

Cover

(USE WITH 4620618 OR AT324260)

1шт.

2B

4385130

Isolator

1шт.

2C

4385134

Isolator

2шт.

2D

4385142

Isolator

1шт.

3

19M7662

Cap Screw

M10 X 30

5шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

5шт.

24M7346

Washer

11 X 20 X 2 mm

5шт.

4

3091338

Cover

1шт.

5

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.
