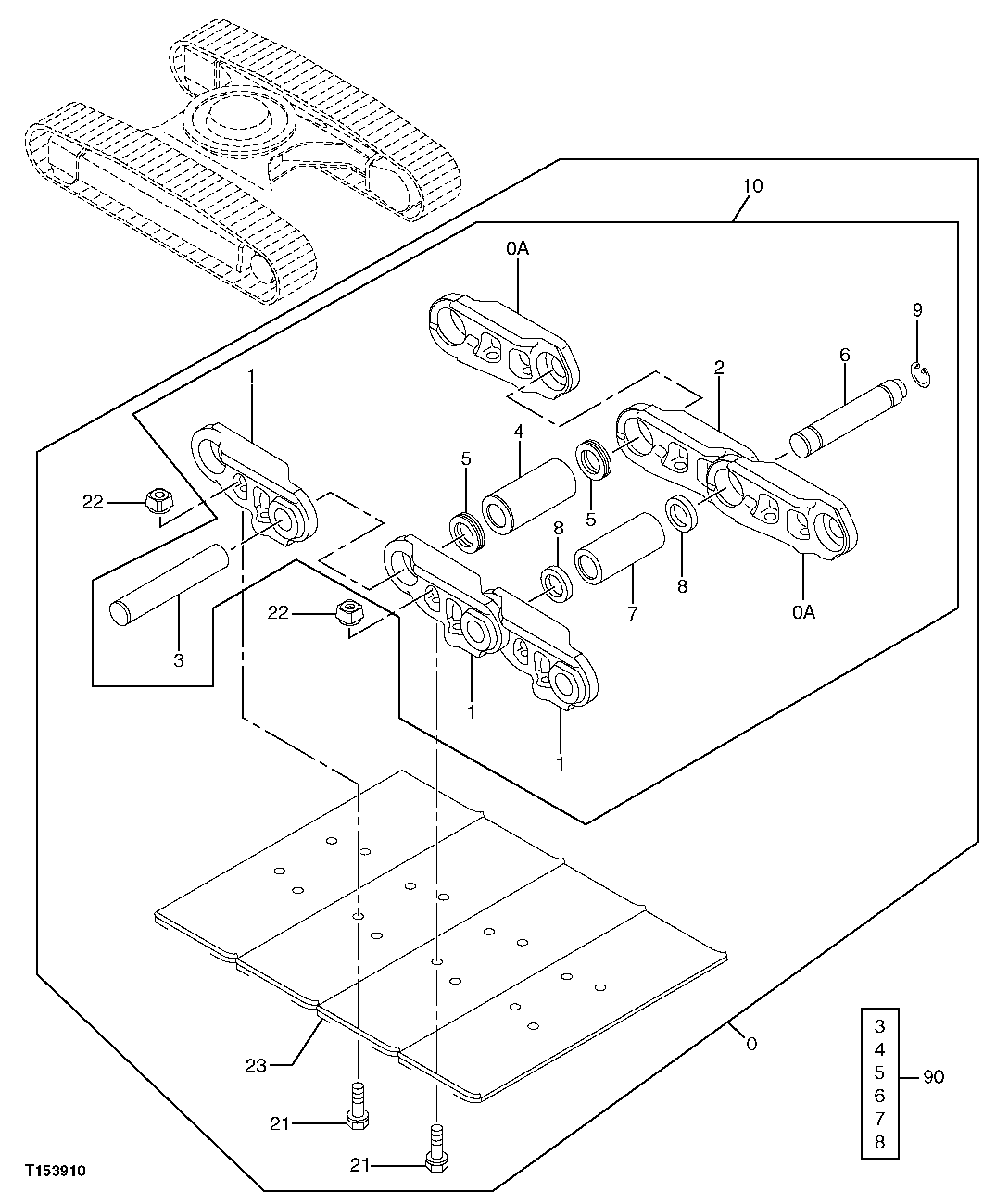

Запчасти John Deere 70CLC 11 - TRACK CHAIN AND SHOES (SN -702000) 0130 TRACK SYSTEMS

0

9251025R

Track Assembly With Shoes

(SUB FOR TH9167839, 9167839 OR AT314 416)(600G) (OTHER TRACK CHAIN ASSEMBL IES MAY BE ORDERED FROM SN 702001- )

2шт.

0A

Link

(SUB FOR AT219498 OR 0002690)( 0004076 NLA)

47шт.

1

Link

(SUB FOR AT219499 OR 0002691)( 0004077 NLA)

48шт.

2

Track Link

(SUB FOR AT250017 OR 4378890)( 4456824 NLA)

1шт.

3

FFSB112368

Pin Fastener

(K) (SUB FOR AT250018 OR 4378891)

47шт.

4

T210808

Track Bushing

(K) (SUB FOR 3077928 ) (SUB FOR AT219620)

47шт.

5

FFSB112367

Seal

(K) (SUB FOR 4378892 ) (SUB FOR AT250019)

94шт.

6

T210811

Master Track Pin

(K) (SUB FOR 3077929 ) (SUB FOR AT219621)

1шт.

7

T210809

Master Track Bushing

(K) (SUB FOR 3077930 ) (SUB FOR AT219622)

1шт.

8

FFSB112370

Spacer

(K) (SUB FOR 4378893 ) (SUB FOR AT250020)

2шт.

9

T210813

Snap Ring

(SUB FOR TH111227)(SUB T238670 IF 46327 63 MASTER LINK IS USED ON AT314410 CHAIN)

1шт.

10

9202852

Track Chain W/O Shoes

(SUB FOR AT250256 OR 9167840)

1шт.

21

T210807

Track Bolt

(SUB FOR AT219650, 3081343 OR 3095745)

192шт.

22

T210814

Nut

(SUB FOR AT219651 OR 3081344)

192шт.

23

2040403

Open Center 3 Bar Shoe

(SUB FOR AT219594)(600G)

48шт.

FFSB108844

Triple Bar Shoe

(SUB FOR AT219606 OR 2042033)(800G)

48шт.

90

AT184109

Bushing Kit

(INCLUDES PARTS MARKED (K))

1шт.
