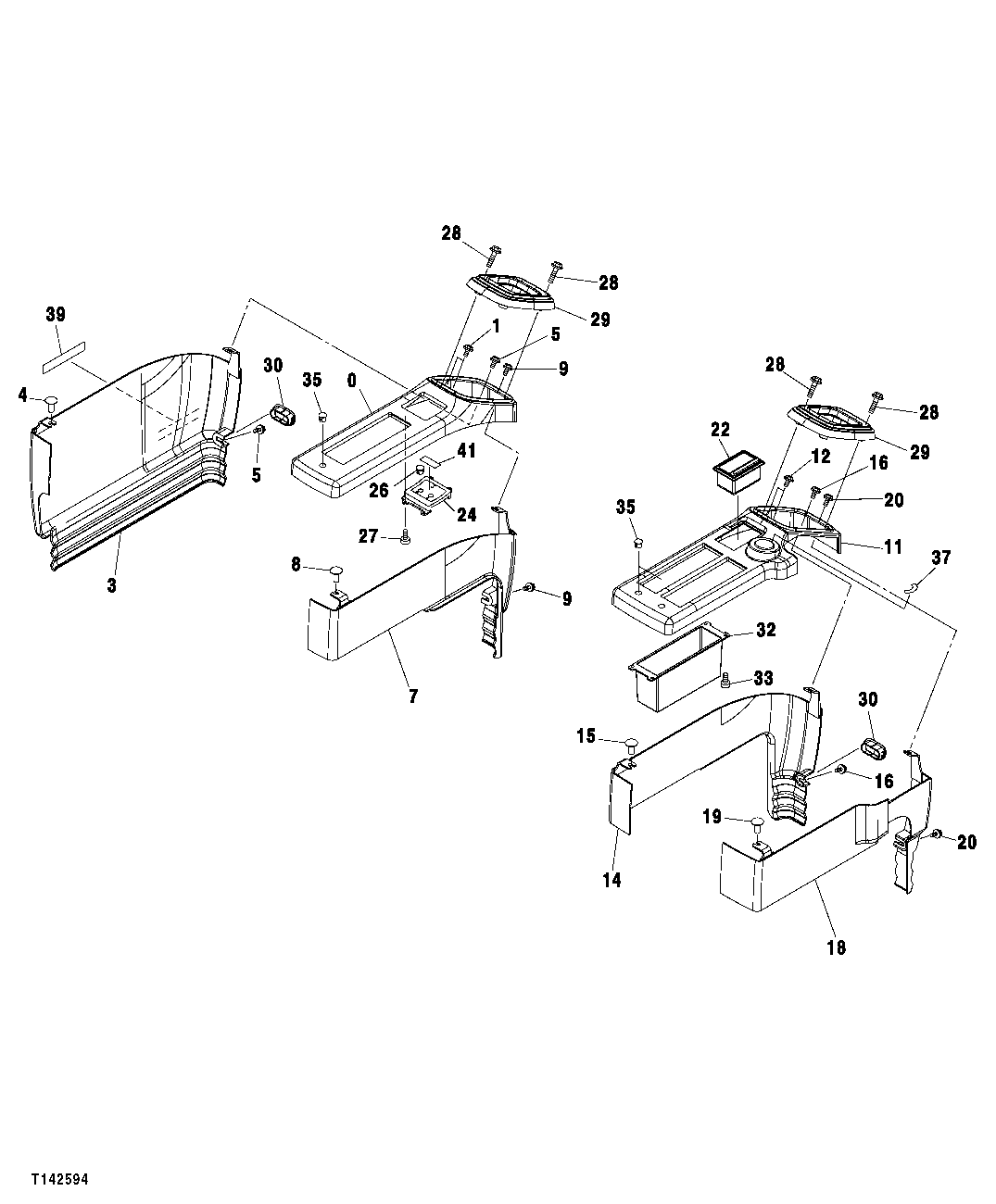

Запчасти John Deere 70CLC 205 - CAB CONSOLE COVERS 1810 OPERATOR ENCLOSURE

0

4420875

Cover

(SUB FOR TH4420875)

1шт.

1

21M7246

Screw

M6 X 16

3шт.

12M7006

Lock Washer

6 mm

3шт.

24M7105

Washer

6 X 12 X 1.600 mm

3шт.

3

4420876

Cover

(SUB FOR TH4420876)

1шт.

4

4361802

Screw

(SUB FOR AT214012)

1шт.

5

21M7246

Screw

M6 X 16

5шт.

12M7006

Lock Washer

6 mm

5шт.

24M7105

Washer

6 X 12 X 1.600 mm

5шт.

7

4420877

Cover

(SUB FOR TH4420877)

1шт.

8

4361802

Screw

(SUB FOR AT214012)

1шт.

9

21M7246

Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7105

Washer

6 X 12 X 1.600 mm

2шт.

11

4420878

Cover

(SUB FOR TH4420878)

1шт.

12

21M7246

Screw

M6 X 16

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7105

Washer

6 X 12 X 1.600 mm

4шт.

14

4420879

Cover

(SUB FOR TH4420879)

1шт.

15

4361802

Screw

(SUB FOR AT214012)

1шт.

16

21M7246

Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7105

Washer

6 X 12 X 1.600 mm

2шт.

18

4420880

Cover

( TH4451095 NLA) (SUB FOR TH4420880)

1шт.

19

4361802

Screw

(SUB FOR AT214012)

1шт.

20

21M7246

Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7105

Washer

6 X 12 X 1.600 mm

2шт.

22

4415024

Ashtray

(SUB FOR TH4415024)

1шт.

24

3091842

Panel

(SUB FOR TH3091842)

1шт.

26

4294437

Cap

(SUB FOR AT215503)

1шт.

27

4452613

Screw

(SUB FOR TH4452613)

4шт.

28

19M7177

Cap Screw

M6 X 35

8шт.

12M7006

Lock Washer

6 mm

8шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.

29

2045509

Cover

(SUB FOR TH2045509)

2шт.

30

4441117

Cap

(SUB FOR TH4441117)

2шт.

32

3090025

Holder

(SUB FOR TH3090025)

1шт.

33

4361800

Screw

(SUB FOR AT214011)

4шт.

35

4448990

Cap

(SUB FOR TH4448990)

3шт.

37

4264805

Label

Ignition Key Switch (SUB FOR AT155730)

1шт.

39

4299059

Label

Lockout (SUB FOR T138886)

1шт.

41

Plate

( TH4459435 NLA)

1шт.
