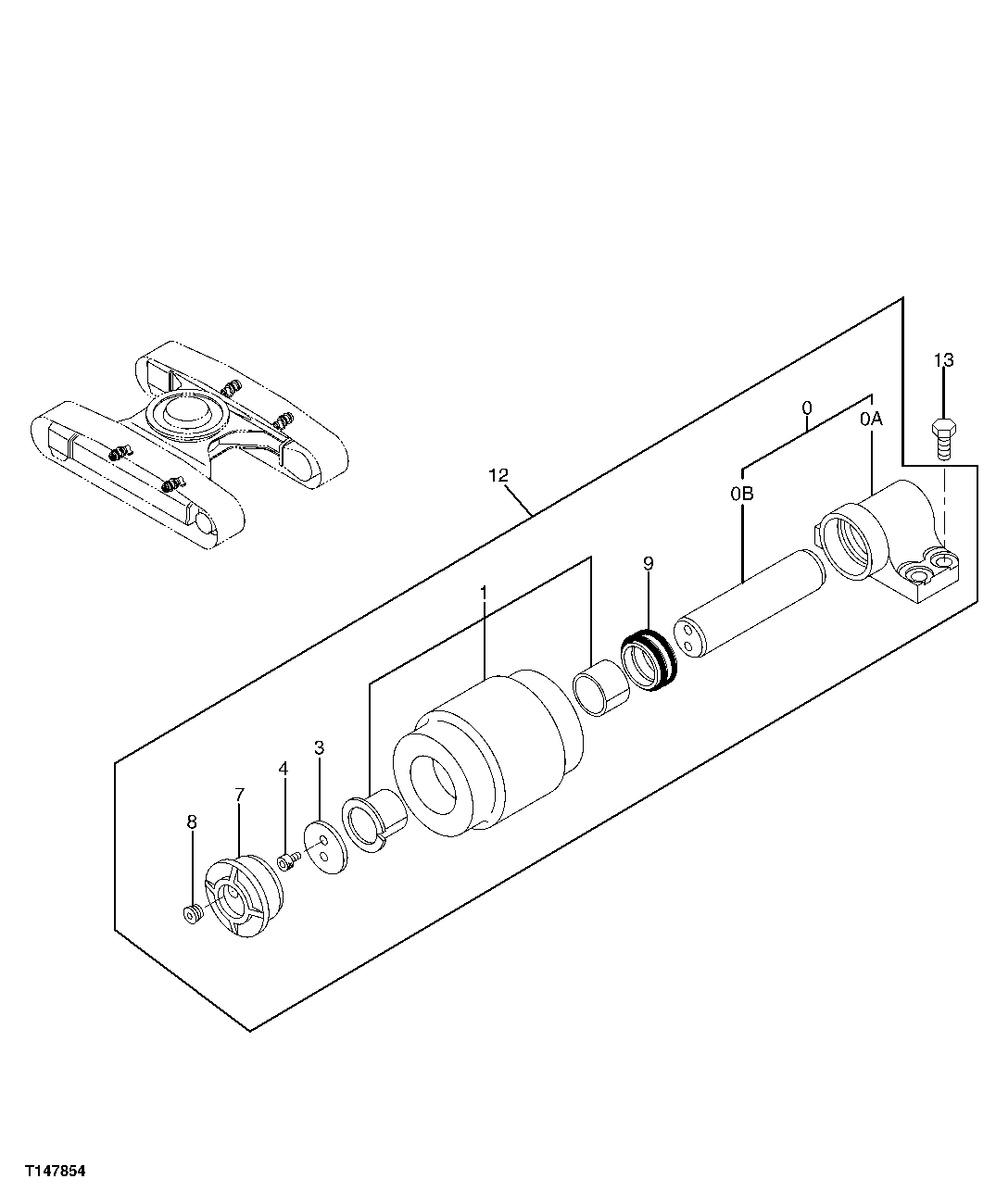

Запчасти John Deere 70CLC 9 - UPPER ROLLER 0130 TRACK SYSTEMS

0

9141304

Shaft

1шт.

0A

Bracket

1шт.

0B

Shaft

1шт.

1

Roller

( 9191062 NLA)

1шт.

T210828

Bushing

Roller Bushing (ROLLER NOT INCLUDED)

1шт.

3

T210827

Thrust Washer

(SUB FOR AT131375 OR 4282842)

1шт.

4

AT180006

Screw

(SUB FOR AT131372 OR M351018)

2шт.

7

Cover

(SUB FOR AT213764)( 3070078 NLA)

1шт.

8

AT180007

Fitting Plug

(SUB FOR TH100434)( 94-2011 NOT USED THIS APPLICATION)

1шт.

9

AT180008

Seal

(SUB FOR AT213828 OR 4317584)

1шт.

12

AT314420

Carrier Roller

(SUB FOR 9191054 OR 4S00520)

4шт.

13

19M7488

Cap Screw

M16 X 40

4шт.
