Запчасти John Deere 70CLC 192 - CAB WINDSHIELD 1810 OPERATOR ENCLOSURE

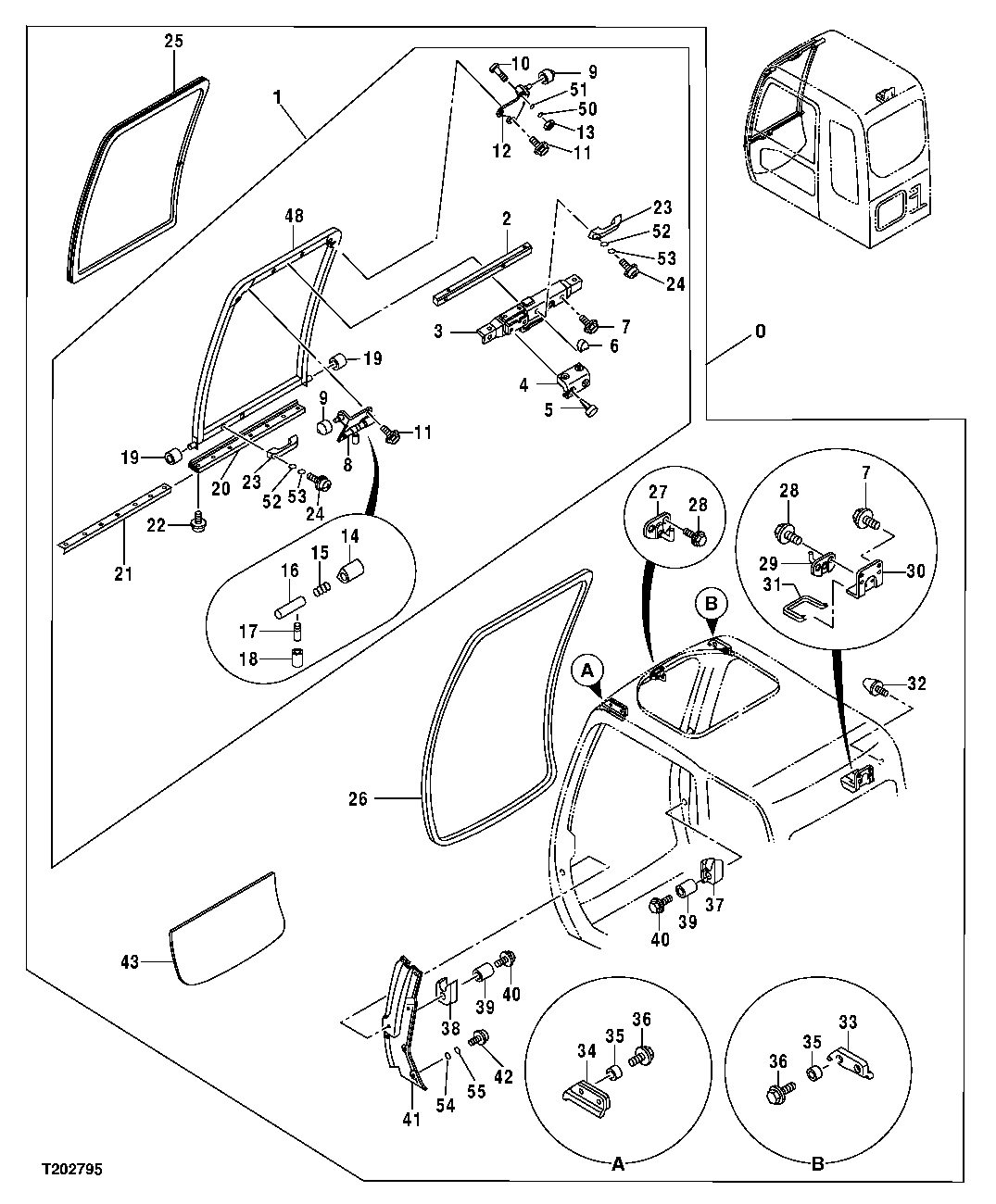

Схема запчастей John Deere 70CLC - 192 - CAB WINDSHIELD 1810 OPERATOR ENCLOSURE

Артикул

Название

Примечание

Количество

0

9202944

Cab

(SUB FOR 4474296 OR 4602549)(CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENT S LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

1

Window

( 4624730 NLA) (ORDER 4633401 ) (ALSO ORDER 4448306 OR 4602562 ) (SUB FOR 4453689 AND TH4453689 )

1шт.

4637257

Window

1шт.

2

4456218

Weld Nut

(SUB FOR TH4456218)

1шт.

3

4456219

Lock

(SUB FOR TH4456219)

1шт.

4

4456220

Cover

(SUB FOR TH4456220)

1шт.

5

4456221

Clip

(SUB FOR TH4456221)

4шт.

6

4456222

Cover

(SUB FOR TH4456222)

1шт.

7

4372225

Screw With Washer

(SUB FOR AT214311)

4шт.

8

Bracket

( 4456223 NLA) (ORDER 4633401 ) (ALS O ORDER 4633400 ) (SUB FOR TH4456223)

1шт.

4633401

Bracket

1шт.

9

4456224

Roller

(SUB FOR TH4456224)

2шт.

10

4456225

Screw

(SUB FOR TH4456225)

1шт.

11

Screw With Washer

( AT214305 OR 4372219 NLA)

4шт.

19M7662

Cap Screw

M10 X 30 (SUB FOR J901030)

4шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR J922010)

4шт.

12

Bracket

( 4456226 NLA) (ORDER 4633400 ) (ALS O ORDER 4633401 ) (SUB FOR TH4456226)

1шт.

4633400

Bracket

1шт.

13

19M7361

Cap Screw

M12 X 50

1шт.

14

4456227

Cover

(SUB FOR TH4456227)

1шт.

15

494918

Spring

(SUB FOR TH106783)

1шт.

16

4403327

Universal Driveshaft

(SUB FOR AT214104, 4369599)

1шт.

17

4295480

Lever

(SUB FOR AT156993)

1шт.

18

4295876

Cover

(SUB FOR AT156994)

1шт.

19

4204558

Roller

(SUB FOR TH108638)

2шт.

20

4456228

Isolator

(SUB FOR TH4456228)

1шт.

21

4456229

Plate

(SUB FOR TH4456229)

1шт.

22

4372214

Screw

(SUB FOR AT214301)

4шт.

23

4204579

Handle

(SUB FOR TH108661)

2шт.

24

19M8425

Cap Screw

M6 X 16

4шт.

Выбрано товаров: 30
