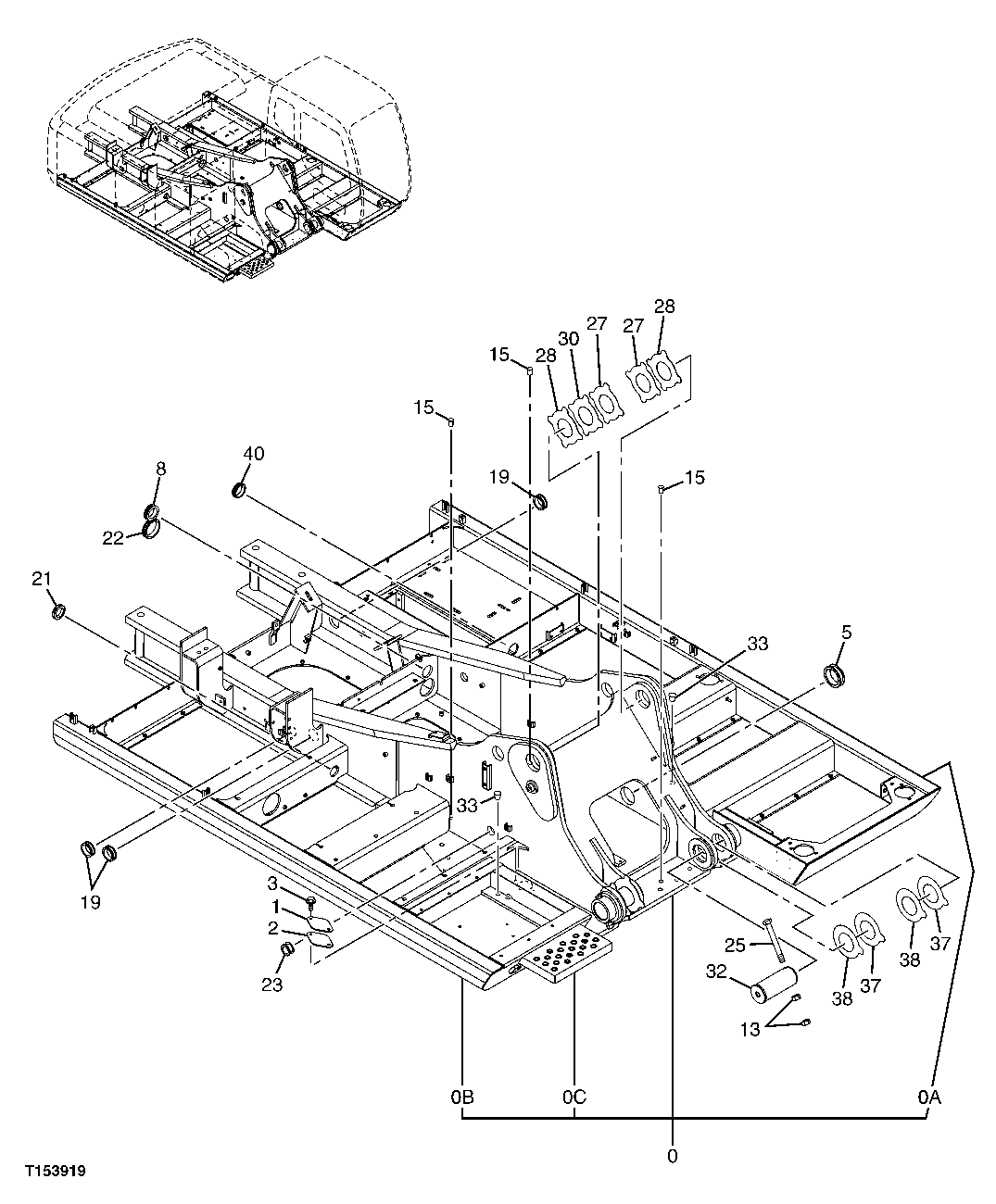

Запчасти John Deere 70CLC 180 - FRAME 1740 FRAME INSTALLATION

0

5008074

Frame

1шт.

0A

3088979

Line

1шт.

0B

3088960

Line

1шт.

0C

3094103

Step

(SUB FOR 3084653)

1шт.

1

4255799

Cover

(SUB FOR AT154929)

1шт.

2

4161735

Gasket

(SUB FOR AT130379)

1шт.

3

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

5

4191977

Grommet

(SUB FOR TH109399)

1шт.

8

4208279

Grommet

(SUB FOR AT131854)

1шт.

13

14M7277

Nut

M20

4шт.

15

4355382

Pin Fastener

(SUB FOR AT217769)

3шт.

19

4255567

Bushing

(SUB FOR AT155271, 4255530)

3шт.

21

4509404

Grommet

(SUB FOR TH100553)

1шт.

22

4201986

Grommet

(SUB FOR AT217099, 4345810)

1шт.

23

4257181

Grommet

(SUB FOR AT155274)

1шт.

25

4435127

Pin Fastener

(SUB FOR TH4435127)

2шт.

27

4445638

Thrust Washer

(SUB FOR TH4445638)

2шт.

28

4445639

Thrust Washer

(SUB FOR TH4445639)

2шт.

30

4460372

Thrust Washer

(SUB FOR TH4460372)

1шт.

31

4365859

Bushing

1шт.

32

AT217951

Pin Fastener

2шт.

33

Plug

( Z431578 NLA)

2шт.

37

4470745

Shim

4шт.

38

4470746

Shim

4шт.
