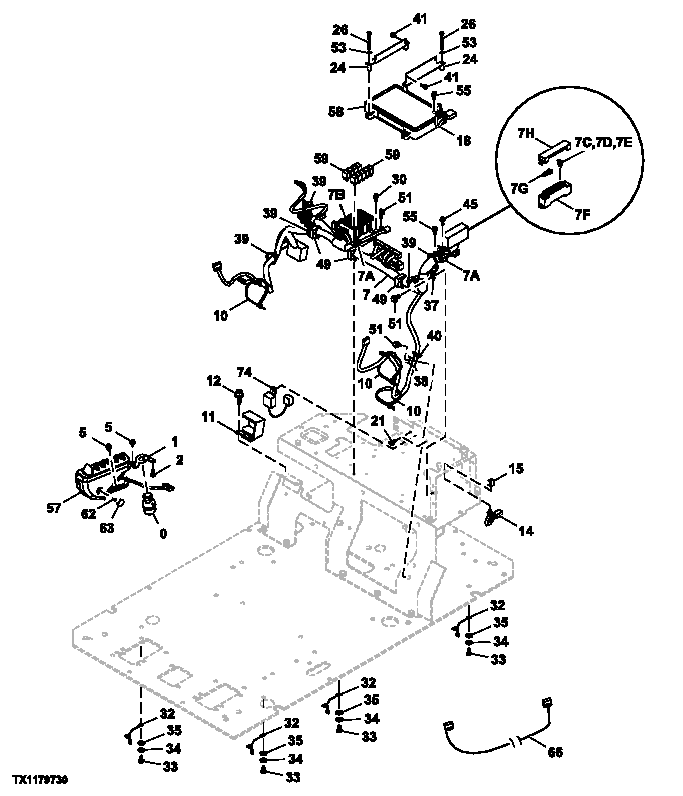

Запчасти John Deere 70CLC 167 - Cab Rear Electrical Components and Right Control Panel (Continued) 1674 WIRING HARNESS & SWITCHES (IF NOT INCLUDED ELSEWHERE)

32

4281293

Ground Cable

4шт.

33

19M8324

Cap Screw

M10 X 16

3шт.

34

12M7066

Lock Washer

10 mm

4шт.

35

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR A590110)

4шт.

37

XCL-19

Hose Clamp

(SUB FOR 4192035)

1шт.

38

R73384

Clamp

(SUB FOR 4190253)

1шт.

39

H77698

Clip

( 4055312 NLA)

5шт.

40

H77698

Tie Band

( 4055311 NLA)

1шт.

41

19M7700

Cap Screw

M5 X 10

4шт.

12M7064

Lock Washer

5 mm

4шт.

24M7348

Washer

5.500 X 10 X 1 mm

4шт.

45

Screw With Washer

( J460620 NLA)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

49

4449019

Clip

3шт.

51

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.

53

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR A590106)

4шт.

55

Screw

( J460310 NLA)

4шт.

21M7394

Screw

M3 X 10

4шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

4шт.

12H233

Lock Washer

1/8"

4шт.

57

4454518

Control Console

1шт.

4482656

Dial Knob

Speed

1шт.

4483208

Dial Knob

4шт.

4483209

Dial Knob

1шт.

4370152

Lamp

2шт.

4483206

Switch

Harness

1шт.

58

9226763

Vehicle Controller

SUB FOR 4487331

1шт.

59

4436534

Relay

9шт.

62

4381572

Screw

1шт.

63

4426354

Cap

1шт.

66

2048203

Wiring Harness

(2.75M EXTENSION)

1шт.

2048184

Wiring Harness

(4.6M EXTENSION)

1шт.

74

AT195741

Relay

(ALTERNATOR)

1шт.
