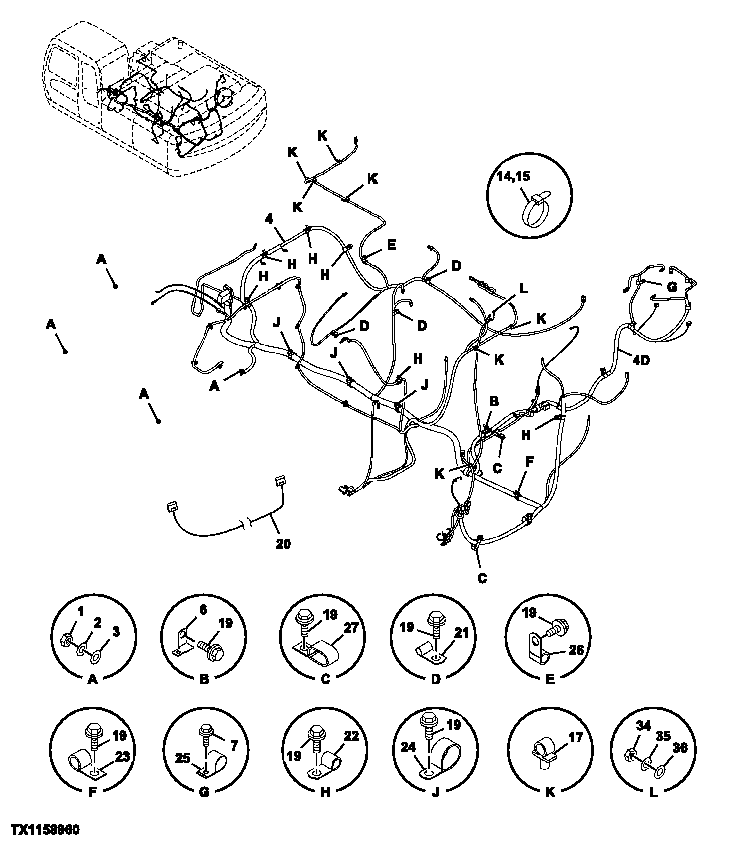

Запчасти John Deere 70CLC 165 - Main Wiring Harness 1674 WIRING HARNESS & SWITCHES (IF NOT INCLUDED ELSEWHERE)

1

14M7274

Nut

M10

5шт.

2

12M7066

Lock Washer

10 mm

5шт.

3

24M7028

Washer

10.500 X 20 X 2 mm

5шт.

4

Wiring Harness

0004091 NLA, ORDER (1) 0004912 AND (1) 4487830 See DTAC Soluti on For Repair Kit and Connectors

1шт.

4487830

Wiring Harness

Not Illustrated Ground To Frame, Connect To Engine Oil Level Sensor On Machine Harness

1шт.

0004912

Wiring Harness

See DTAC Solution For Repair Kit and C onnectors Includes Pump Wiring Harness

1шт.

4A

4270554

Fuse

40 Amp, Not Illustrated Fusib le Link Green SUB FOR AT160982

2шт.

4B

4287670

Fuse

60 Amp, Fusible Link Yellow (SUB FOR AT200499)(FUSIBLE LINK - 60 AMP - YELL OW) (NOT ILLUSTRATED) SUB FOR AT200499

1шт.

4C

4374532

Diode

Not Illustrated Component Of Main Wire Harness Plastic Connector Contains Fol lowing: 5 Diodes 1 Key Switch 1 Swing S top Cushion Solenoid 1 Grip Solenoid 1 Fuel Shutoff Solenoid 1 Optional Equipm ent

1шт.

4D

4460140

Wiring Harness

Pump Wiring Harness Ca n Be Ordered Separately

1шт.

6

4418301

Bracket

1шт.

7

19M8425

Cap Screw

M6 X 16

3шт.

12M7006

Lock Washer

6 mm

3шт.

14

H77698

Tie Band

13шт.

15

H77698

Tie Band

1шт.

17

4449250

Clip

7шт.

19

19M7938

Cap Screw

M10 X 20

19шт.

12M7066

Lock Washer

10 mm

19шт.

20

AT303736

Wiring Harness

Without Oil Pan Sensor Jumper Ha rness From Main Harness To Frame

1шт.

21

4190261

Clip

3шт.

22

T28949

Clamp

(SUB FOR 4190273)

6шт.

23

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

1шт.

24

AT121321

Hose Clamp

4шт.

25

T78787

Clamp

(SUB FOR 4450494)

1шт.

26

4190275

Clamp

3шт.

27

M45242

Clip

(SUB FOR 4190292)

2шт.

34

14M7297

Nut

M5

1шт.

35

12M7064

Lock Washer

5 mm

1шт.

36

24M7027

Washer

5.300 X 10 X 1 mm

1шт.
