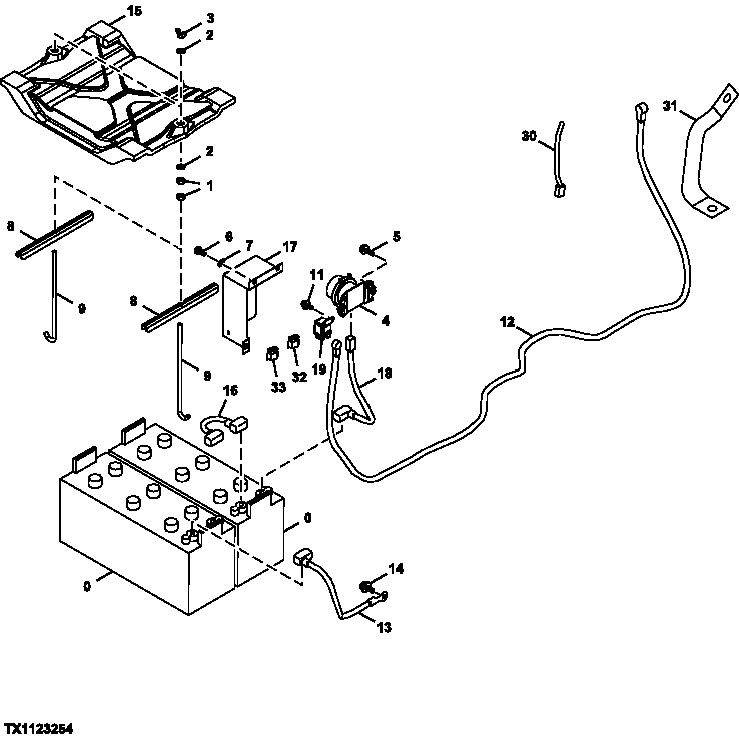

Запчасти John Deere 70CLC 162 - BATTERIES AND HARNESSES 1671 BATTERIES, SUPPORT & CABLES

0

TY23020

Dry Charged Battery

SUB FOR TY21709, ALSO ORDER (2) TY15733

2шт.

1

14M7274

Nut

M10

4шт.

2

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR A590110

4шт.

3

14M7025

Wing Nut

M10

2шт.

4

8943795431

Relay

SUB FOR 4255762

1шт.

5

19M7513

Cap Screw

M8 X 30 SUB FOR 19M7288

2шт.

6

19M7932

Cap Screw

M8 X 16 SUB FOR 19M7162

3шт.

7

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

3шт.

8

4435074

Channel

SUB FOR TH104067

2шт.

AT219489

Support

1шт.

9

4430289

Rod

2шт.

11

19M8425

Cap Screw

M6 X 16 SUB FOR 19M7560

2шт.

12

4466876

Wiring Harness

1шт.

13

DH400205

Ground Cable

SUB FOR AR45925, THIS APPLICATION

1шт.

14

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

15

4351892

Cover

1шт.

DH800054

Cover

1шт.

16

DH400410

Battery Cable

4350736 NOT USED FOR THIS AP PLICATION Battery To Battery

1шт.

17

3087816

Cover

1шт.

18

DH400206

Wiring Harness

4445593 NLA

1шт.

19

4452159

Relay

Fuel

1шт.

AT145341

Relay

Starter

1шт.

30

4448296

Wiring Harness

1шт.

31

4397839

Ground Cable

1шт.

32

4315323

Fuse

45 Amp, Fusible Link Battery

1шт.

33

4315324

Link

75 amp, Fusible Link Alternator

1шт.
