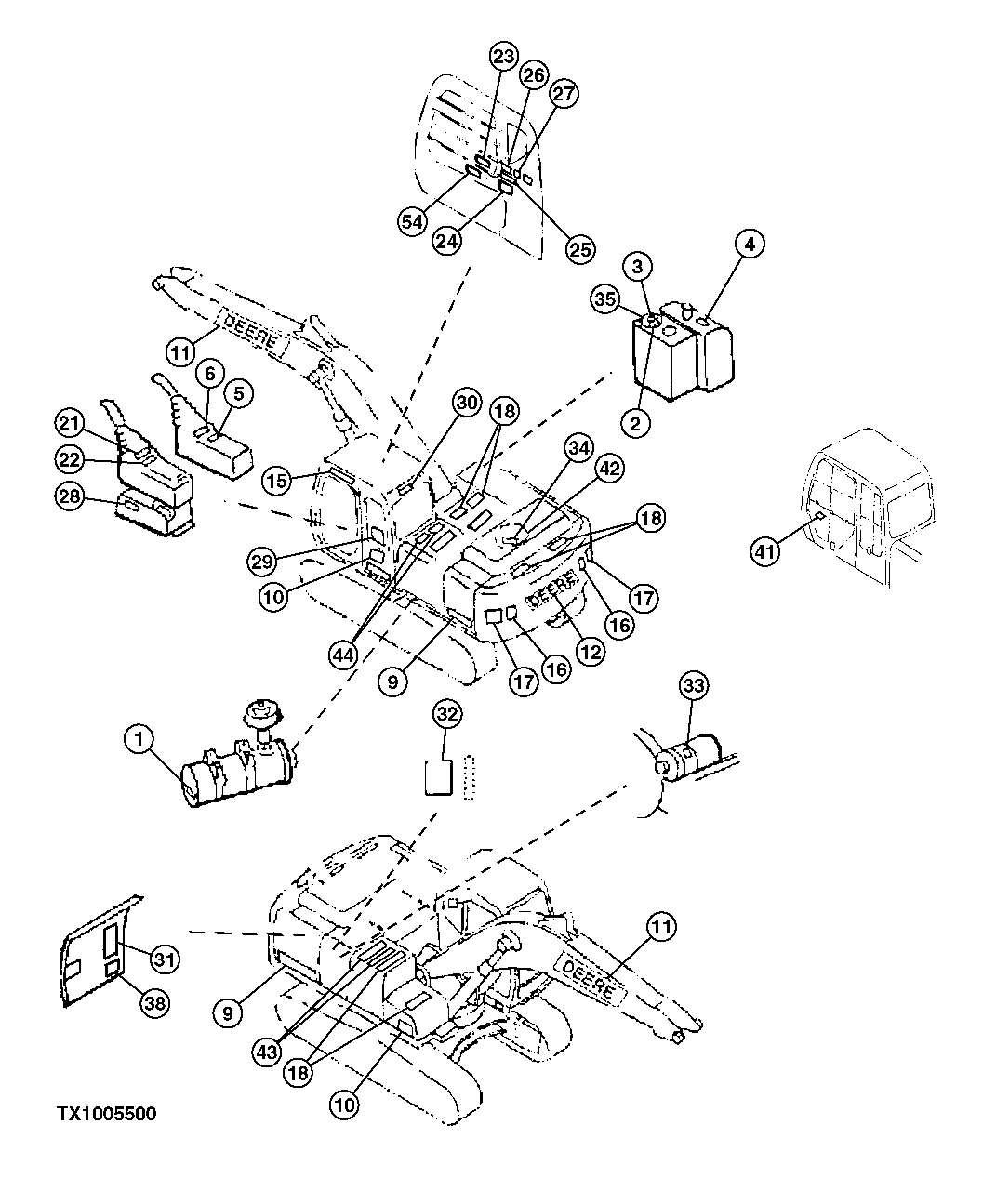

Запчасти John Deere 70CLC 157 - LABELS AND DECALS (ENGLISH) 1322 DECALS AND TRADEMARKS

1

R56902

Label

(DRY AIR CLEANER)

1шт.

2

P63448

Label

(PUMP BLEED INFORMATION)

1шт.

3

T101942

Label

(HYDRAULIC OIL)

1шт.

4

T79632

Label

(DIESEL ONLY)

1шт.

5

4264805

Label

(IGNITION KEY SWITCH)

1шт.

6

Label

(SUB T201519 ) (SUB FOR T159842, T HIS APPLICATION)(RIGHT CONTROL LEVE R - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159843

Label

(RIGHT CONTROL LEVER - JOHN DEE RE PATTERN) (YELLOW BACKGROUND)

1шт.

9

T189062

Label

(270CLC)

2шт.

10

JD5760

Label

(LEAPING DEER)

2шт.

11

T185126

Label

(DEERE) (BOOM)

2шт.

12

T184759

Label

(DEERE) (COUNTERWEIGHT)

1шт.

15

T187642

Label

(DOOR)

1шт.

16

JD5909

Reflector

(RED) (CUT TO LENGTH) ( JD5909 BULK MATERIAL) ( T160910 NLA)

2шт.

17

T190310

Safety Sign

(WARNING - STAY CLEAR)

2шт.

18

H21259

Mat

(ANTI-SKID)

8шт.

H21259

Mat

Anti-Skid

7шт.

21

Label

(SUB T201519 ) (SUB FOR T159841, T HIS APPLICATION)(LEFT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159844

Label

(LEFT CONTROL LEVER - JOHN DEE RE PATTERN) (YELLOW BACKGROUND)

1шт.

22

4288971

Label

(ETHER AID - MOTION CANCEL)

1шт.

23

T188862

Label

ENGINE START/STOP

1шт.

24

T159887

Safety Sign

CAUTION (READ OPERATOR'S MANUAL)

1шт.

25

T146668

Safety Sign

WARNING (CRUSHING ARTICULATION)

1шт.

26

T146667

Safety Sign

(DANGER - ELECTROCUTION)

1шт.

27

T387695X19

Label

(IMPORTANT - BREAK WINDOW FOR SECONDARY EXIT) SUB FOR T190393

1шт.

28

4299059

Label

(HYDRAULIC LOCKOUT)

1шт.

29

T189060

Label

(LIFT CAPACITY)

1шт.

30

T187535

Label

(CAUTION WINDOW LOCK - INSIDE CAB)

1шт.

31

T208028

Label

Periodic Maintenance (SUB FOR T189061)

1шт.

32

T149983

Label

(IMPORTANT - OIL LEVEL)

1шт.

33

T146102

Label

(BYPASS START)

1шт.

34

T152657

Safety Sign

(IMPORTANT - RADIATOR)

1шт.

35

T187710

Label

(CAUTION - HYDRAULIC RESERVOIR OIL CAP)

1шт.

38

Label

(NOT REQUIRED FOR THIS APPLICATION)

1шт.

41

T188737

Label

(WINDOW GUARD INSTALLATION)

1шт.

42

T146671

Safety Sign

(CAUTION - RADIATOR CAP)

1шт.

43

4121128

Mat

(ANTI-SKID)

2шт.

4121128

Mat

Anti-Skid

4шт.

44

T25838

Mat

(ANTI-SKID)

5шт.

54

T201519

Label

(SUB FOR T159842, T159841)(CONTROL PATTERN)

1шт.

55

4129669

Label

(CHAIN) (NOT ILLUSTRATED)

1шт.

56

T187757

Label

(WARNING, FAN GUARD) (NOT ILLUSTRATED)

1шт.
