Запчасти John Deere 70CLC 156 - Primary and Final Fuel Filter Elements and Service Kits 0560 EXTERNAL FUEL SUPPLY SYSTEMS

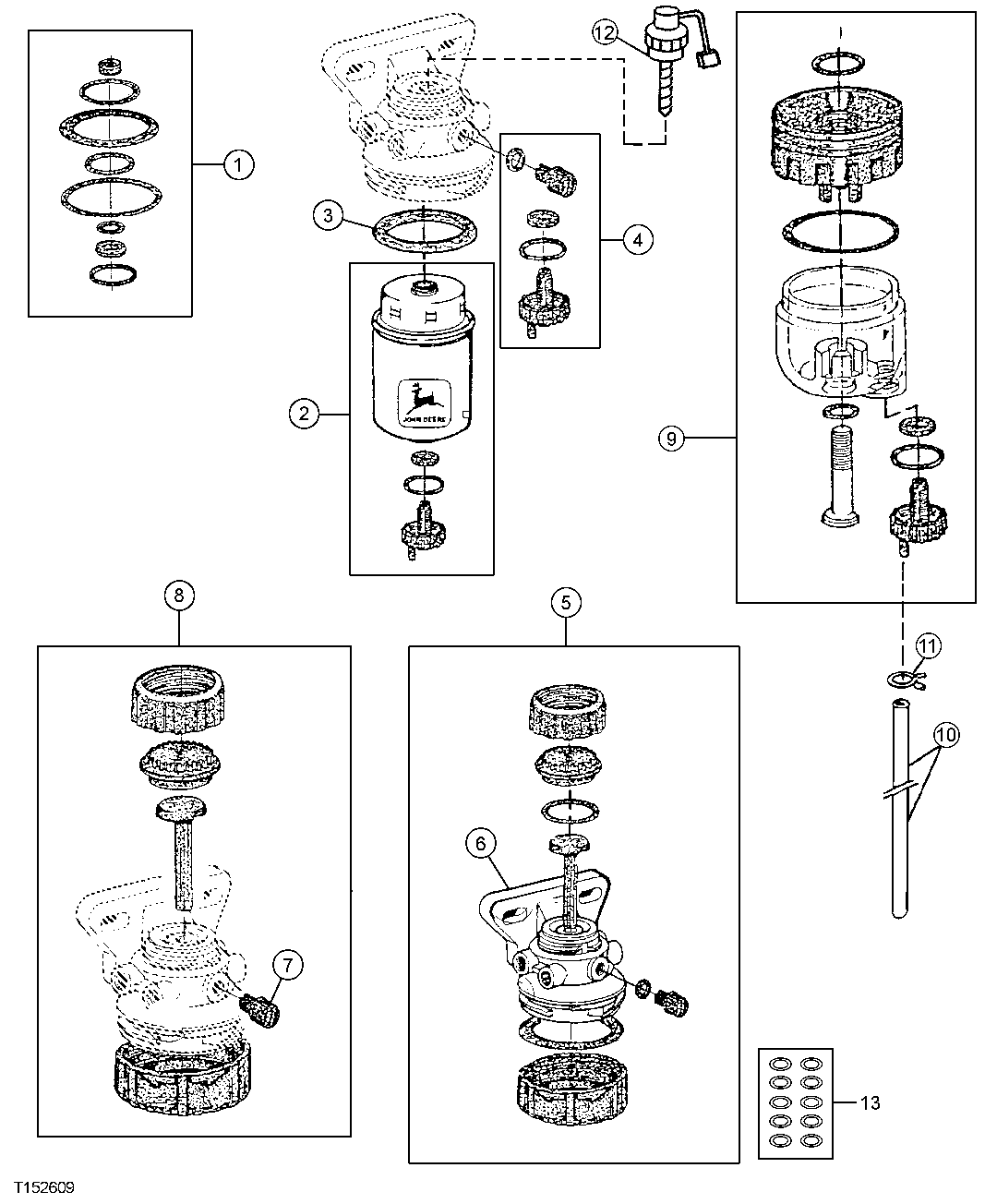

Схема запчастей John Deere 70CLC - 156 - Primary and Final Fuel Filter Elements and Service Kits 0560 EXTERNAL FUEL SUPPLY SYSTEMS

Артикул

Название

Примечание

Количество

1

RE516553

Seal Kit

(SUB FOR RE50752)

1шт.

2

RE67901

Filter Element

FINAL FUEL FILTER

1шт.

RE509036

Fuel Filter

(WATER SEPARATOR) PRIMARY FUEL FILTER

1шт.

RE516477

Filter Element

(ANTI-FUEL GELLING) (USE IN COLD CLIMATE APPLICATIONS)

1шт.

3

R113565

O-Ring

1шт.

4

RE60854

Valve Kit

1шт.

5

RE509794

Filter Head

FINAL FUEL FILTER

1шт.

RE508847

Filter Head

PRIMARY FUEL FILTER

1шт.

6

Filter Head

(ORDER RE508985 FOR FINAL FILTER) (ORDER RE508847 FOR PRIMARY FILTER)

2шт.

7

R113563

Drain Plug

1шт.

8

RE51649

Seal Kit

1шт.

RE515404

Filter Kit

Hand Primer Assembly

1шт.

9

RE51650

Sediment Bowl

PRIMARY FUEL FILTER

1шт.

10

R126086

Hose

PRIMARY FUEL FILTER

1шт.

11

T13254

Clamp

PRIMARY FUEL FILTER

1шт.

12

RE504134

Heater

FUEL HEATER (24-VOLT) (PRIMARY FUEL FILTER) (TOP LOAD HEATER)

1шт.

13

RE516513

Pump Repair Kit

(WITH HAND PRIMER) (CONTAINS 10 O-RINGS)

1шт.

RE516512

O-Ring Kit

(WITHOUT HAND PRIMER) (CONTAINS 10 O-RINGS)

1шт.

Выбрано товаров: 18
