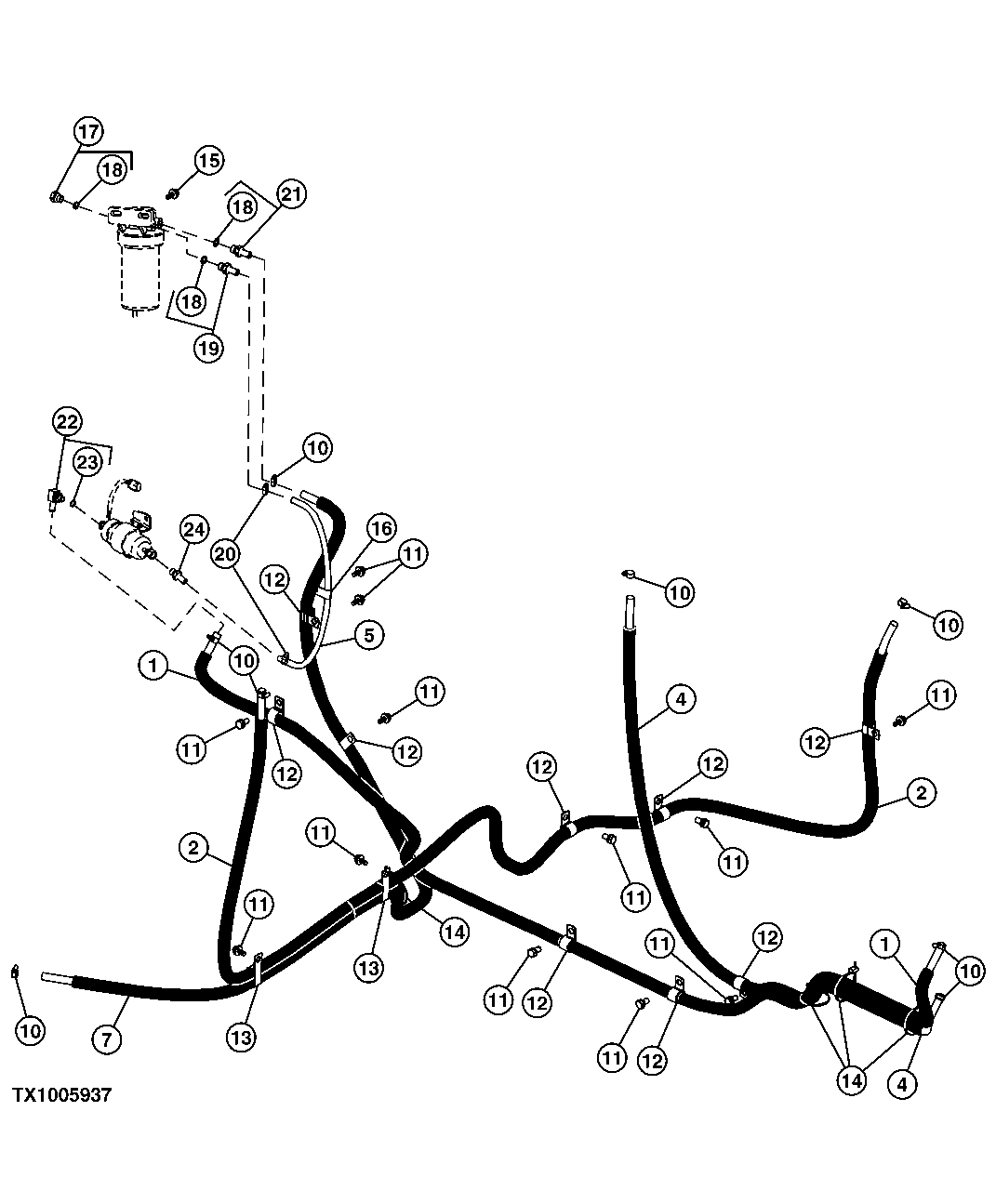

Запчасти John Deere 70CLC 154 - FUEL HOSES AND FITTINGS 0560 EXTERNAL FUEL SUPPLY SYSTEMS

1

Bulk Hose

( THDH900288 NLA) (MAKE FROM TY24 398 (CTL) 2900MM (114.17") ( 44047 58 NOT USED FOR THIS APPLICATION))

1шт.

Hose Guard

( DH400467 AND 4259842 NLA) (MAKE FR OM DH400246 (CTL) 2750MM (108.27") ( Y404061 NOT USED ON THIS APPLICATION) )

1шт.

2

Bulk Hose

( THDH900163 AND 4374345 NLA) (MAKE F ROM TY24398 (CTL) 3350MM (131.89") ( A T219660 NOT USED ON THIS APPLICATION))

1шт.

Hose Guard

( DH400248 NLA) (MAKE FROM DH4002 46 (CTL) 3200MM (125.98") ( 430785 8 NOT USED FOR THIS APPLICATION))

1шт.

4

Bulk Hose

( THDH900289 NLA) (MAKE FROM TY24 398 (CTL) 1900MM (74.80") ( 438823 5 NOT USED FOR THIS APPLICATION))

2шт.

Hose Guard

(MAKE FROM DH400246)(CTL) 1750MM (68.90") ( 4404657 NOT USED FOR THIS APPLICATION)

1шт.

5

R515462

Fuel Line

1шт.

7

Bulk Hose

( THDH900287 NLA) (MAKE FROM TY24398 (CTL) 2450MM (96.46") (HOSE AND COVER ASSEMBLY))

1шт.

Hose Guard

( DH400465 NLA) (MAKE FROM DH 400246 (CTL) 2300MM (90.55"))

1шт.

10

TY22464

Clamp

(SUB FOR AT145649 ) (SUB FOR AR21836)

8шт.

11

19M7938

Cap Screw

M10 X 20

8шт.

12M7066

Lock Washer

10 mm

8шт.

12

T24432

Clamp

( 4235654 NOT USED FOR THIS APPLICATION)

8шт.

13

4190266

Clip

(SUB FOR TH108793)( 4192034 N OT USED FOR THIS APPLICATION)

2шт.

14

H77698

Tie Band

4шт.

15

19M7923

Cap Screw

M6 X 12

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

16

4190275

Clamp

(SUB FOR AT215520 ) (SUB FOR 4344303)( T30367 NOT USED FOR THIS APPLICATION)

1шт.

17

RE46686

Fitting

( J020835 NOT USED FOR THIS APPLICATION)

2шт.

18

51M7040

O-Ring

9.300 X 2.200 mm

2шт.

19

AT196589

Adapter Fitting

1шт.

20

TY22462

Clamp

(SUB FOR AR48236)

2шт.

21

RE500576

Fitting

1шт.

22

AT196563

Adapter Fitting

1шт.

23

51M7039

O-Ring

8.100 X 1.600 mm

1шт.

24

RE515341

Adapter Fitting

1шт.
