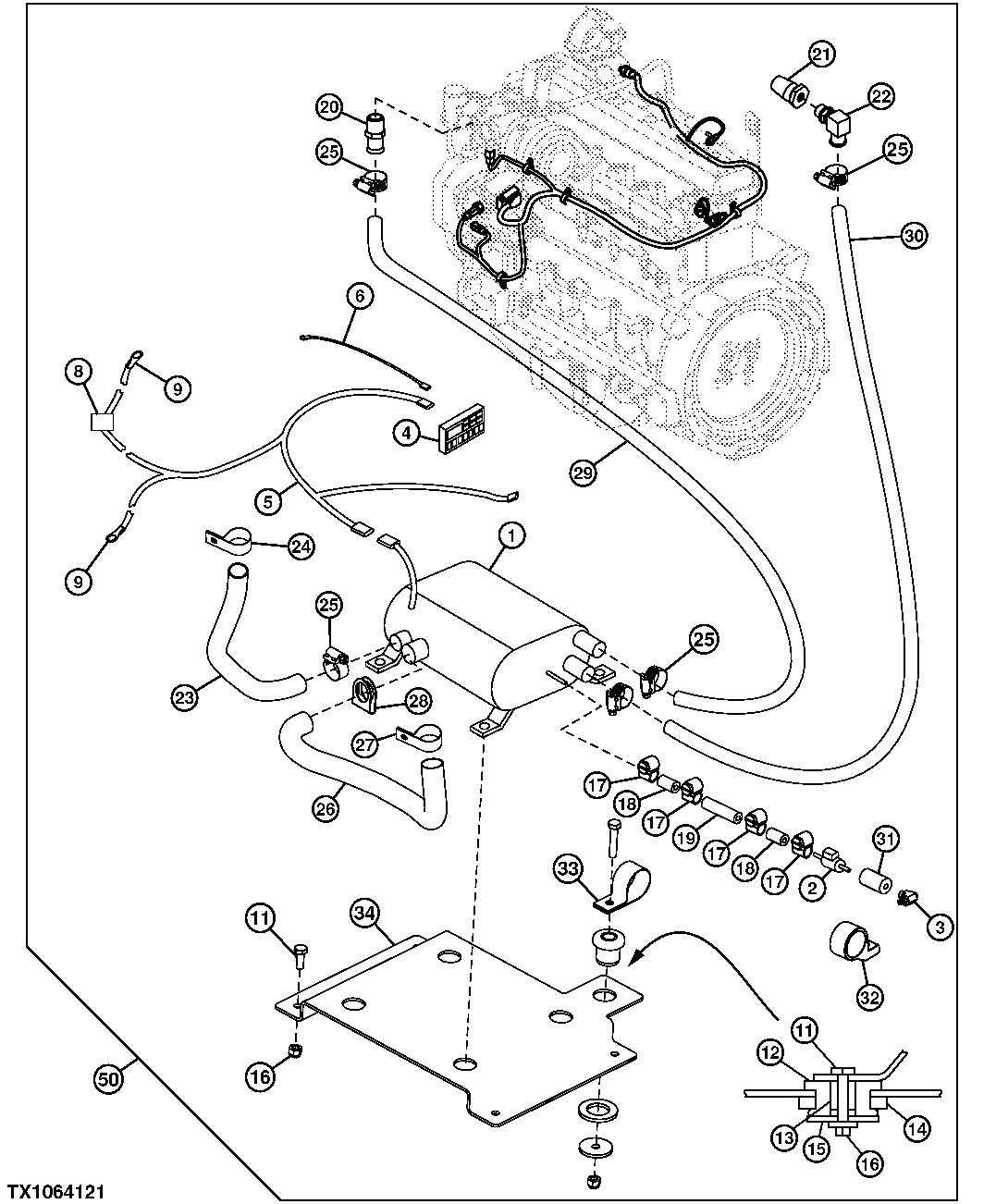

Запчасти John Deere 70CLC 139 - FUEL FIRED COOLANT HEATER KIT (KITS BUILT PRIOR TO MARCH 2009) 0505 COLD WEATHER STARTING AIDS

1

AT222697

Coolant Heater

1шт.

2

AT307812

Fuel Pump

1шт.

3

T120343

Tee Fitting

1шт.

4

AT221990

Digital Display

1шт.

5

AT307817

Wiring Harness

1шт.

6

AT307271

Wiring Lead

1шт.

8

AT307277

Wiring Lead

1шт.

9

Eyelet

2шт.

11

19M7874

Cap Screw

M6 X 30

5шт.

12

AT116162

Isolator

5шт.

13

L101283

Spacer

4шт.

14

24H1404

Washer

13/16" X 1-1/4" X 1/4"

4шт.

15

M142541

Washer

4шт.

16

N207956

Lock Nut

12шт.

17

AT224094

Clamp

4шт.

18

T177580

Hose

2шт.

19

T224416

Fuel Line

1шт.

20

RE54885

Hose Fitting

1шт.

21

RE68908

Adapter Fitting

SUB FOR RE520229

1шт.

22

AT221440

Fitting

1шт.

23

T206127

Bulk Hose

(AIR INLET HOSE)

1шт.

24

T179306

Clamp

1шт.

25

AR21837

Hose Clamp

5шт.

26

T206126

Exhaust Pipe

1шт.

27

T179306

Clamp

1шт.

28

AT221605

Clamp

1шт.

29

Bulk Hose

MAKE FROM TY22330

1шт.

30

Bulk Hose

MAKE FROM TY22330

1шт.

31

Bulk Hose

MAKE FROM TY22330

1шт.

32

AT307815

Isolator

1шт.

33

T179306

Clamp

1шт.

34

T223617

Bracket

1шт.

50

Kit

AT307267 NLA, WHOLE GOODS Diesel Fired Engine Coolant Heater Kit

1шт.
