Запчасти John Deere 70CLC 133 - 9901 CYLINDER HEAD GASKET SET / ENGINE OVERHAUL KIT 0400B Engine 6068HT054-RE507967 6068HT054

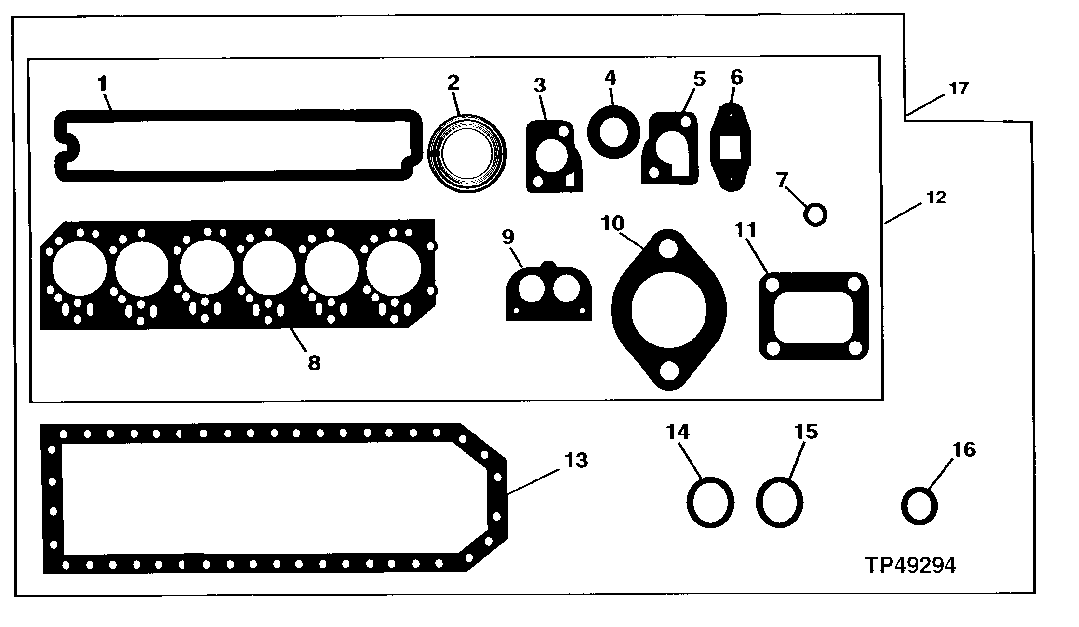

Схема запчастей John Deere 70CLC - 133 - 9901 CYLINDER HEAD GASKET SET / ENGINE OVERHAUL KIT 0400B Engine 6068HT054-RE507967 6068HT054

Артикул

Название

Примечание

Количество

1

R123543

Gasket

ROCKER ARM COVER

1шт.

RE520540

Gasket Kit

HIGH TEMPERATURE

1шт.

2

R90658

Gasket

EXHAUST MANIFOLD

6шт.

3

R502814

Gasket

(SUB FOR R135896)THERMOSTAT COVER

1шт.

4

R123226

Seal

WATER BY-PASS TUBE

2шт.

5

R123345

Gasket

THERMOSTAT HOUSING

1шт.

6

R123570

Gasket

TURBOCHARGER OIL OUTLET LINE

1шт.

7

R123575

O-Ring

ROCKER ARM COVER HOLD DOWN STUD

6шт.

8

R116516

Engine Cylinder Head Gasket

1шт.

9

R501373

Gasket

THERMOSTAT COVER

1шт.

10

R81275

Gasket

AIR INLET

1шт.

11

R123572

Gasket

TURBO CHARGER TO EXHAUST MANIFOLD

1шт.

12

RE66083

Gasket Kit

CYLINDER HEAD REMOVAL

1шт.

13

R123354

Gasket

ENGINE OIL PAN

1шт.

14

R75892

O-Ring

OIL PUMP TUBE CONNECTOR

1шт.

15

R97185

O-Ring

OIL PUMP OUTLET TUBE TO COVER

1шт.

16

R61871

O-Ring

OIL PUMP INTAKE TUBE TO COVER

1шт.

17

RE66085

Gasket Kit

CHASSIS OVERHAUL

1шт.

Выбрано товаров: 18
