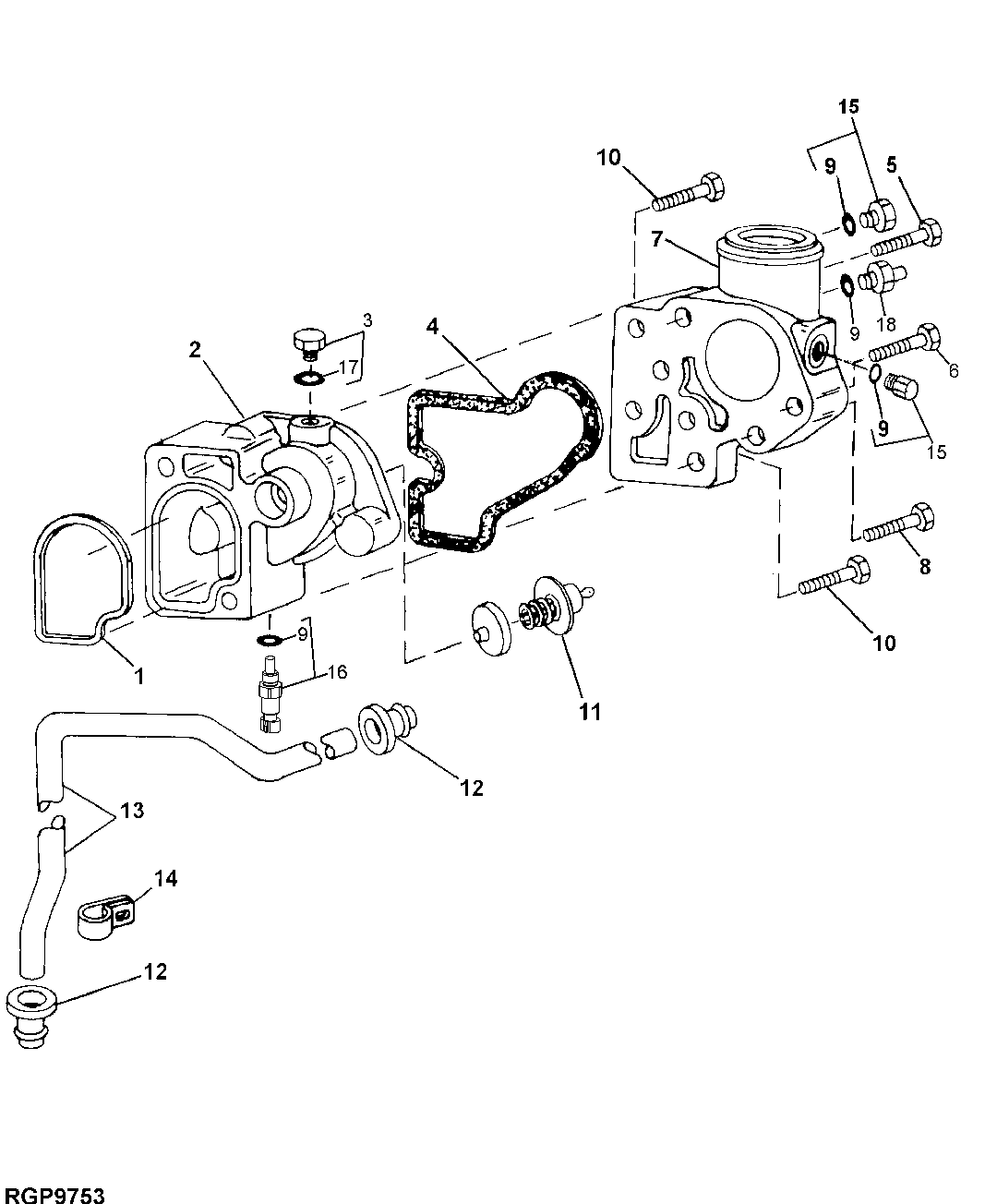

Запчасти John Deere 70CLC 99 - 2213 THERMOSTAT, THERMOSTAT HOUSING AND COVER (2128, 3909) 0400B Engine 6068HT054-RE507967 6068HT054

1

R501228

Seal

1шт.

2

R500471

Housing

1шт.

3

RE46686

Fitting

1шт.

4

R501227

Seal

1шт.

5

19M7810

Screw

M10 X 80

1шт.

6

19M7785

Screw

M10 X 25

1шт.

7

R500472

Cover

1шт.

8

19M7809

Screw

M10 X 70

1шт.

9

51M7041

O-Ring

11.300 X 2.200 mm

4шт.

10

19M7811

Screw

M10 X 90

2шт.

11

RE520831

Thermostat

(SUB FOR RE507225, THIS APPLICATION)

1шт.

12

R123226

Seal

1шт.

13

R500704

Tube

(BY-PASS TUBE)

1шт.

14

R123324

Clamp

1шт.

15

RE46684

Fitting Plug

3шт.

16

RE52722

Temperature Sensor

(COOLANT TEMP FOR ECU)

1шт.

17

51M7040

O-Ring

9.300 X 2.200 mm

1шт.

18

4456798

Sensor

(TEMPERATURE GAUGE SENSOR)

1шт.
